KCDC150G 01 – SECTION

KCDC150G 01 – SECTION

Written by

in

KCDC150G 01 – SECTION

Products

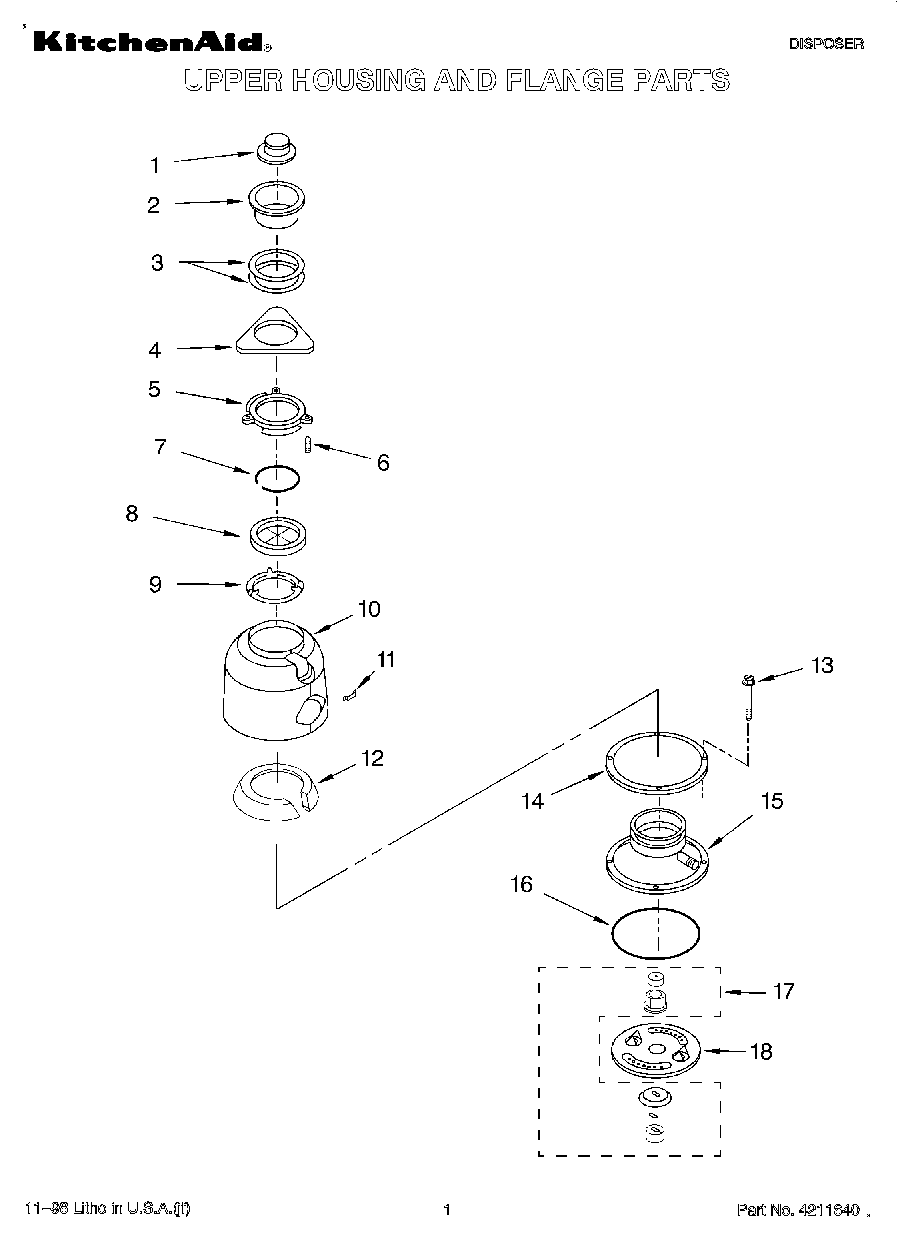

Position	Product
1	4211300 Whirlpool Disposer Stopper
2	4211301 Whirlpool Disposer Flange
3	WP4211302 Whirlpool Disposer Seal
4	4211303 Whirlpool Disposer Flange
5	4211304 Whirlpool Flange Disposer
6	4211305 Whirlpool Disposer Screw
7	4211306 Whirlpool Disposer Ring
8	4211615 Whirlpool Disposer Gasket
9	Flange, Body
10	Container, Body Assembly
11	Clip, Shell Trim
12	Insulation
13	Bolt, thru
14	Ring, Clamping
15	Container, Body Asm. (incl.13)
16	O-Ring
17	4211578 Whirlpool Disposer Sleeve
18	Shredder Assembly, Rotating
