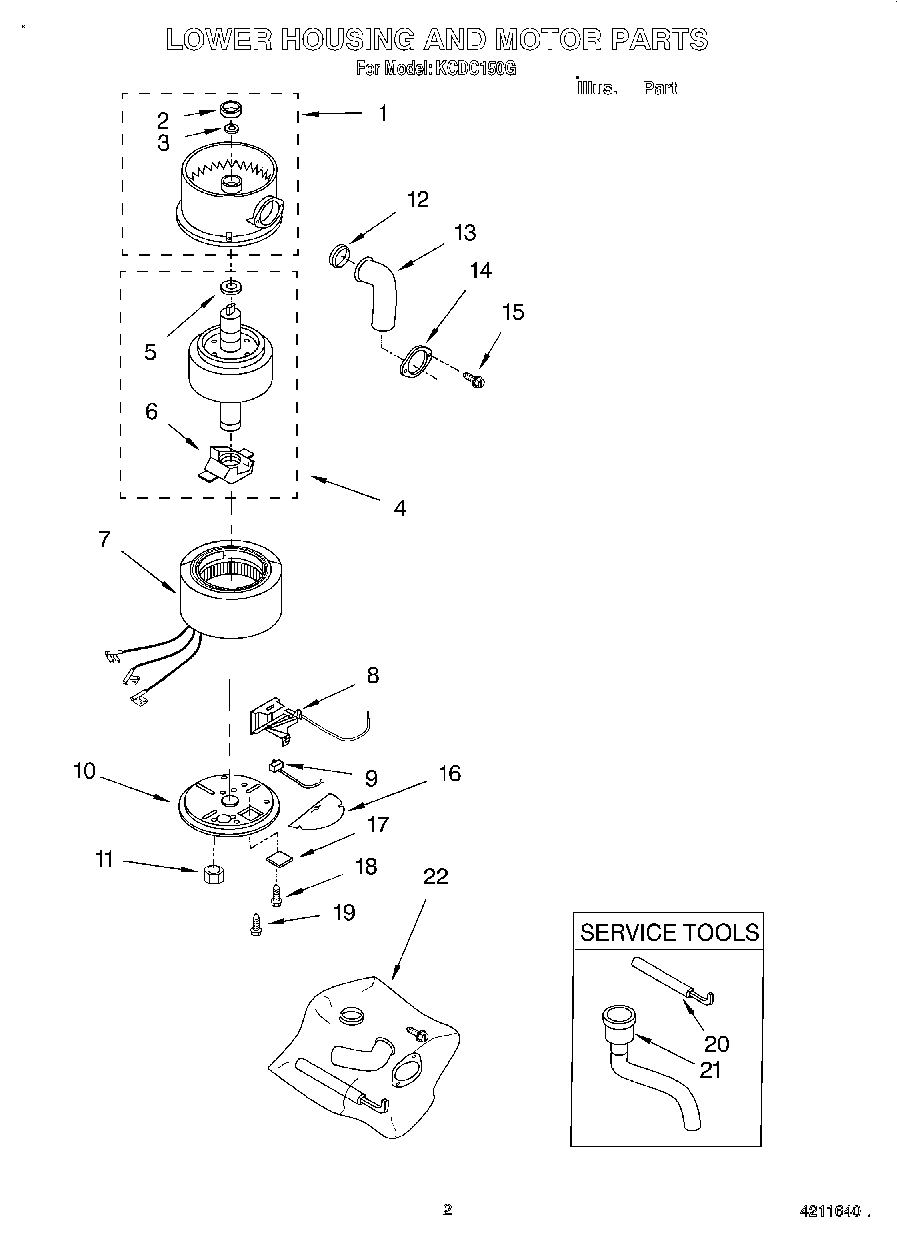

KCDC150G 02 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Guide, Use and Care
1	4211313 Whirlpool Disposer End Bell
2	Seal, Water & Oil
3	Washer, Thrust
4	Rotor & Shaft Assembly
5	4211321 Whirlpool Washer
6	4211322 Whirlpool Disposer Actuator
7	Stator Assembly
8	8174312 Whirlpool Disposer Switch
9	882726 Whirlpool Disposer Overload Protector
10	8174345 Whirlpool Frame
11	Bolt, Thru
12	4211316 Whirlpool Disposer Gasket
13	4211317 Whirlpool Disposer Tail Pipe
14	Flange, Tailpipe
15	Screw, Tailpipe
16	Shield, Wire
17	Cover, Terminal
18	WP98008545 Whirlpool Screw
19	Screw, Tailpipe
20	WP8174310 Whirlpool Disposer Wrench
21	4211396 Whirlpool Disposer Adapter
22	Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide)
