KCDC150X 02 – SECTION

Products

PositionProduct
Guide, Use and Care
Repair Parts List
Instructions, Installation

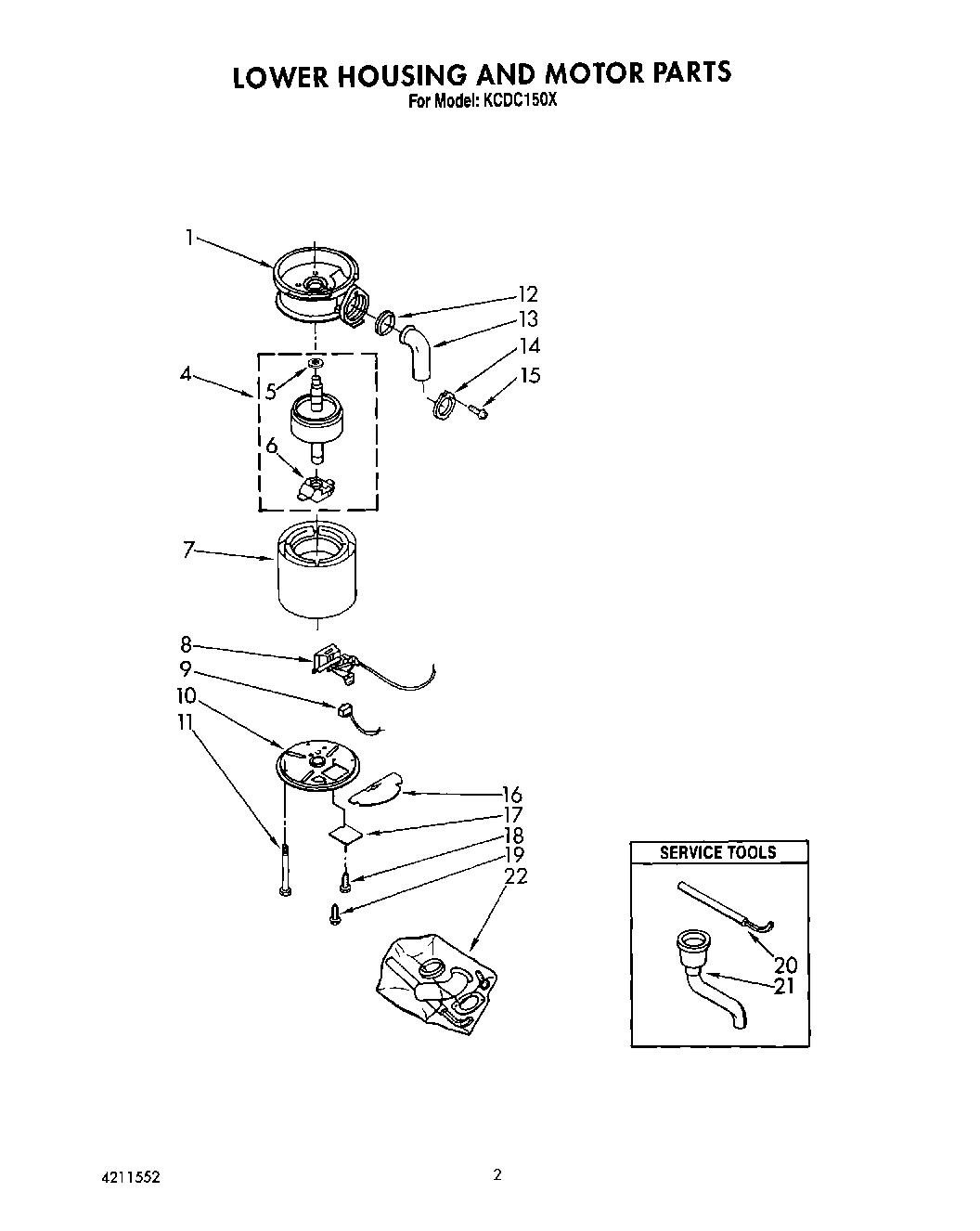

1End Bell Assembly, Upper
4Rotor & Shaft Assembly
54211321 Whirlpool Washer
64211322 Whirlpool Disposer Actuator
7Stator Assembly
88174312 Whirlpool Disposer Switch
9882726 Whirlpool Disposer Overload Protector
10End Frame Assembly, Lower
11Bolt, Thru
12Gasket, Tailpipe
134211317 Whirlpool Disposer Tail Pipe
14Flange, Tailpipe
15WP8204624 Whirlpool Bolt
16Shield, Wire
17Cover, Terminal
18WP7101P246-60 Whirlpool Screw
19Screw, Tailpipe
20WP8174310 Whirlpool Disposer Wrench
214211396 Whirlpool Disposer Adapter
22Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide)
