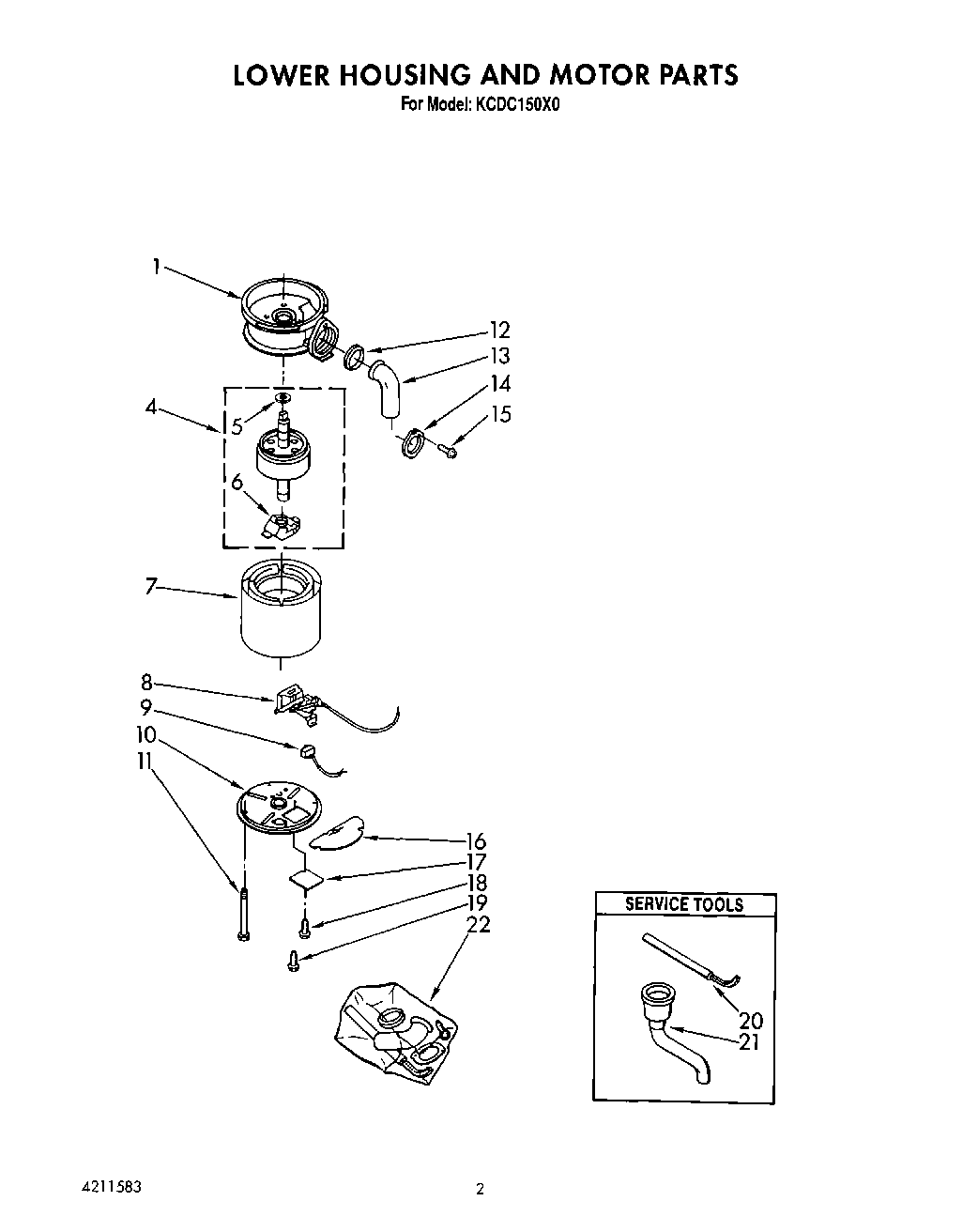

| Repair Parts Lis |
| Guide, Use and Care |
| Instructions, Installation |
| 1 | End Bell Assembly, Upper |
| 4 | Rotor & Shaft Assembly |
| 5 | 4211321 Whirlpool Washer |
| 6 | 4211322 Whirlpool Disposer Actuator |
| 7 | Stator Assembly |
| 8 | 8174312 Whirlpool Disposer Switch |
| 9 | 882726 Whirlpool Disposer Overload Protector |
| 10 | End Frame Assembly, Lower |
| 11 | Bolt, Thru |
| 12 | Gasket, Tailpipe |
| 13 | 4211317 Whirlpool Disposer Tail Pipe |
| 14 | Flange, Tailpipe |
| 15 | WP8204624 Whirlpool Bolt |
| 16 | Shield, Wire |
| 17 | Cover, Terminal |
| 18 | WP7101P246-60 Whirlpool Screw |
| 19 | Screw, Tailpipe |
| 20 | WP8174310 Whirlpool Disposer Wrench |
| 21 | 4211396 Whirlpool Disposer Adapter |
| 22 | Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide) |
