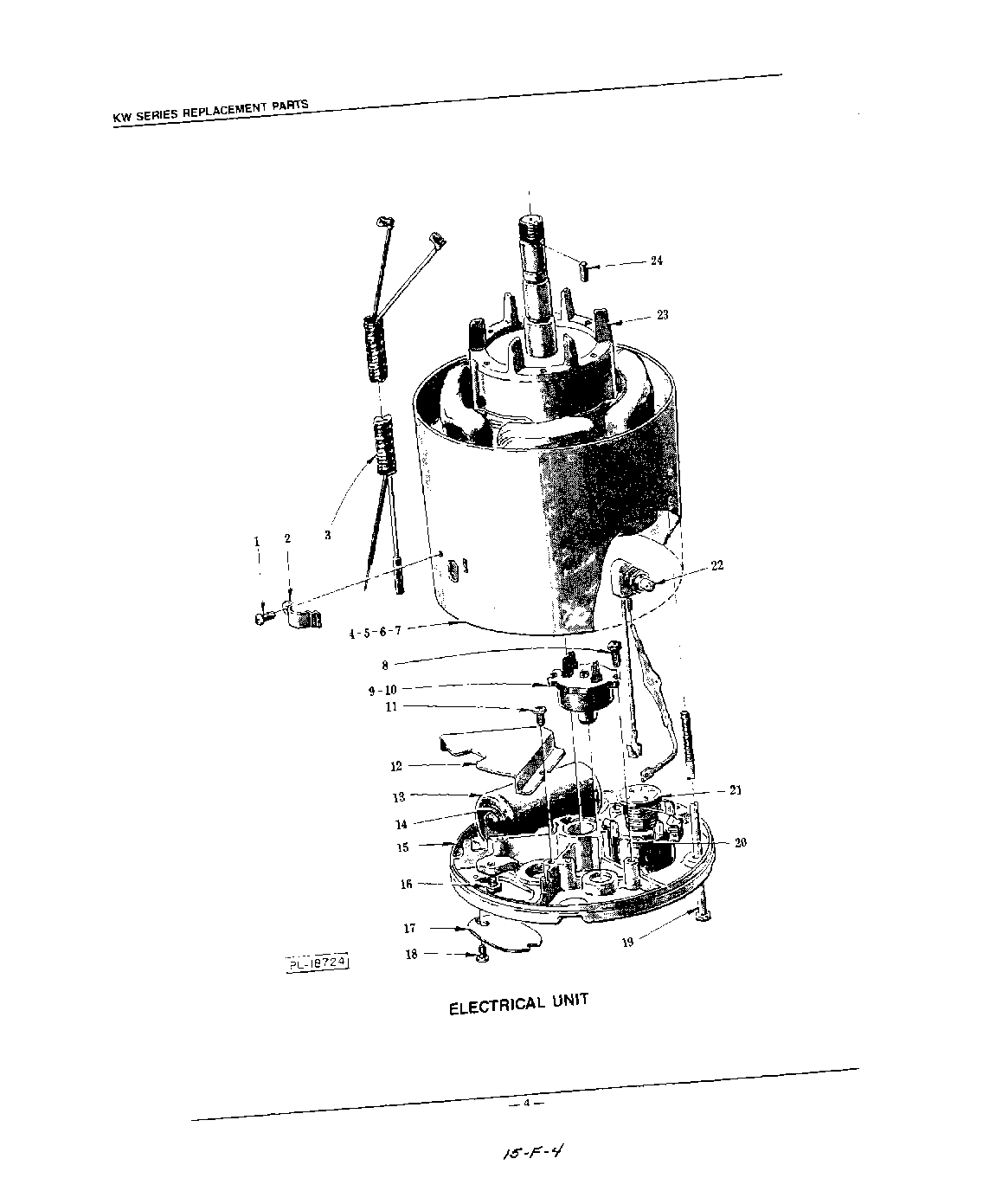

KCDC200S0 03 – ELECTRICAL

Products

Position	Product
1	Self-Tapping Screw 8 x 1/2 Phil. Pan Hd., Type B
2	xClamp – Conduit
3	xConduit Assy
4	xxStator Assy. (115 V., 60 Hz.) (KWE)
5	xStator Assy. (115 V., 60 Hz.) (KWD)
6	xxStator Assy. (115 V., 60 Hz.) (KWI)
7	xStator Assy. (115 V., 60 Hz.) (KWS)
8	Screw Assy. (Protector)
9	xxProtector – Overload (Manual) (115 V., 60 Hz.)
10	xProtector – Overload (Automatic) (115 V.,60 Hz.)
12	Barrier – Electrical Enclosure
13	Capacitor (115 V., 60 Hz.)
14	Clip – Capacitor Retainer
15	Bracket & Bearing Assy
16	Screw – Machine Grounding
17	Cover – Elec. Access
18	Self-Tapping Screw 6-32 x 5/16 Phil. Pan Hd., Type T
19	Mach. Screw 10-32 x 5 5/8 Indented Hex Hd
20	Self-Tapping Screw 6-32 x 1 Phil. Pan Hd., Type T
21	Reversing Relay Assy. (115 V., 60 Hz.)
22	Switch & Diode Assy. (115 V., 60 Hz.) (KWI-200/KWS-200)
23	Rotor Assy. (115 V., 60 Hz.)
24	Key – Sq. Mach
