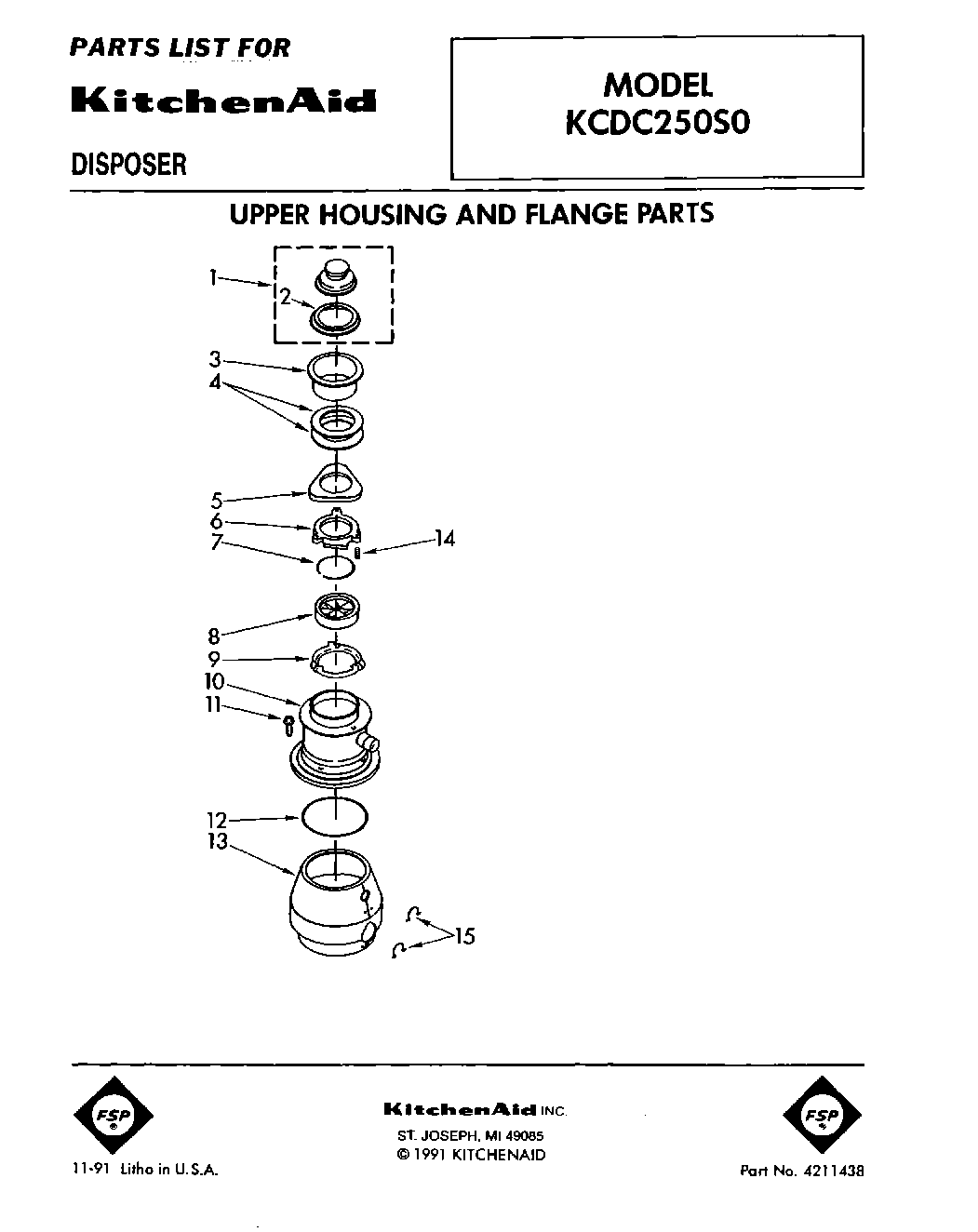

KCDC250S0 01 – SECTION

KCDC250S0 01 – SECTION

Written by

in

KCDC250S0 01 – SECTION

Products

PositionProduct
14211577 Whirlpool Disposer Stopper
2Gasket, Stopper
34211301 Whirlpool Disposer Flange
4WP4211302 Whirlpool Disposer Seal
54211303 Whirlpool Disposer Flange
64211304 Whirlpool Flange Disposer
74211306 Whirlpool Disposer Ring
8WP4211334 Whirlpool Disposer Gasket
9Flange, Body
10Container, Body Assembly
11Screw
12O-Ring
13Trim Shell Assembly (Includes Illus. No. 15)
144211305 Whirlpool Disposer Screw
15Clip, Shell Trim
