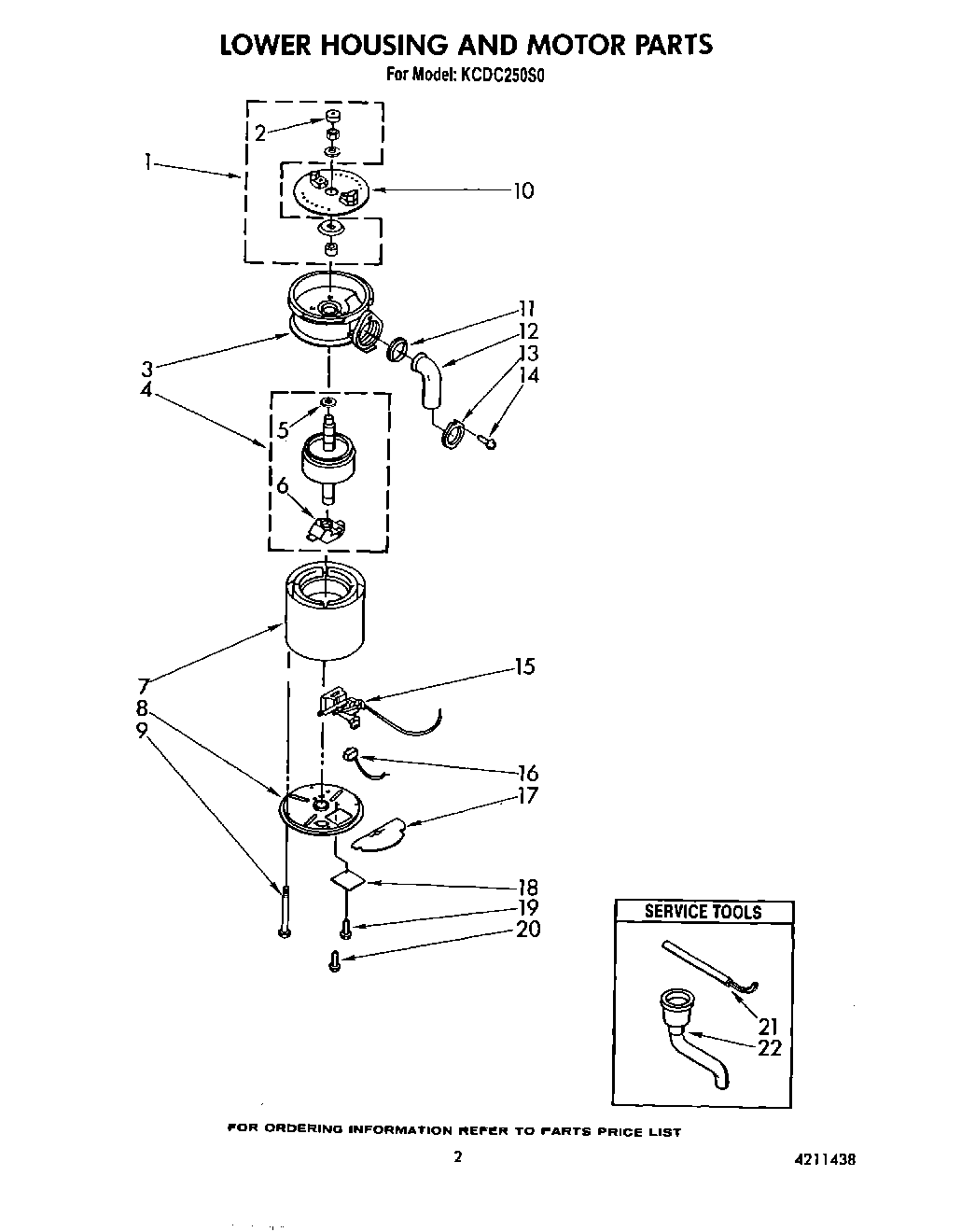

KCDC250S0 02 – SECTION

Products

Position	Product
	Repair Parts List
	Guide, Use and Care
	Instructions, Installation
1	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly (Upper)
4	Rotor & Shaft Assembly
5	4211321 Whirlpool Washer
6	4211322 Whirlpool Disposer Actuator
7	Stator Assembly
8	Rotor And Shaft Assembly
9	Bolt, Thru
10	Shredder
11	Gasket, Tailpipe
12	4211317 Whirlpool Disposer Tail Pipe
13	Flange, Tailpipe
14	WP8204624 Whirlpool Bolt
15	8174312 Whirlpool Disposer Switch
16	Protector, Overload
17	Shield, Wire
18	Cover, Terminal
19	WP7101P246-60 Whirlpool Screw
20	Screw, Tailpipe
21	WP8174310 Whirlpool Disposer Wrench
22	4211396 Whirlpool Disposer Adapter
