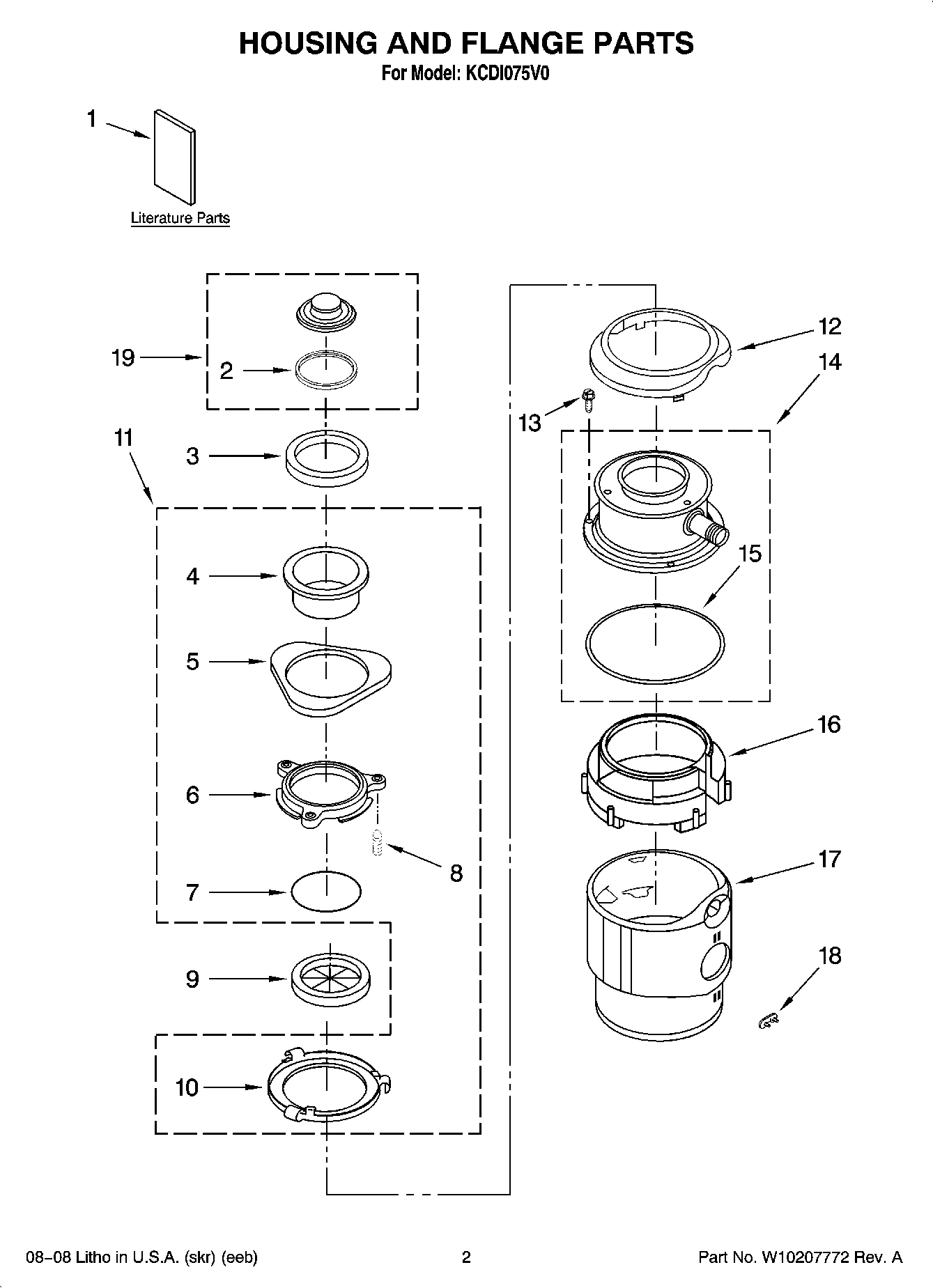

KCDI075V0 01 – HOUSING AND FLANGE PARTS

KCDI075V0 01 – HOUSING AND FLANGE PARTS

Written by

in

KCDI075V0 01 – HOUSING AND FLANGE PARTS

Products

PositionProduct
1Repair Parts List
1Guide, Use & Care
2Gasket, Stopper
3WP4211302 Whirlpool Disposer Seal
4Flange, Sink
5Flange, Backup
64211304 Whirlpool Flange Disposer
74211306 Whirlpool Disposer Ring
8Screw, Backup
9WP4211334 Whirlpool Disposer Gasket
10Flange, Body
11W10179031A Whirlpool Disposer Flange Kit
12Cap, Trim Shell
13Screw
14Container, Body Assembly
15O-Ring
16Insulation
17Trim Shell Assy
18Clip
194211577 Whirlpool Disposer Stopper
