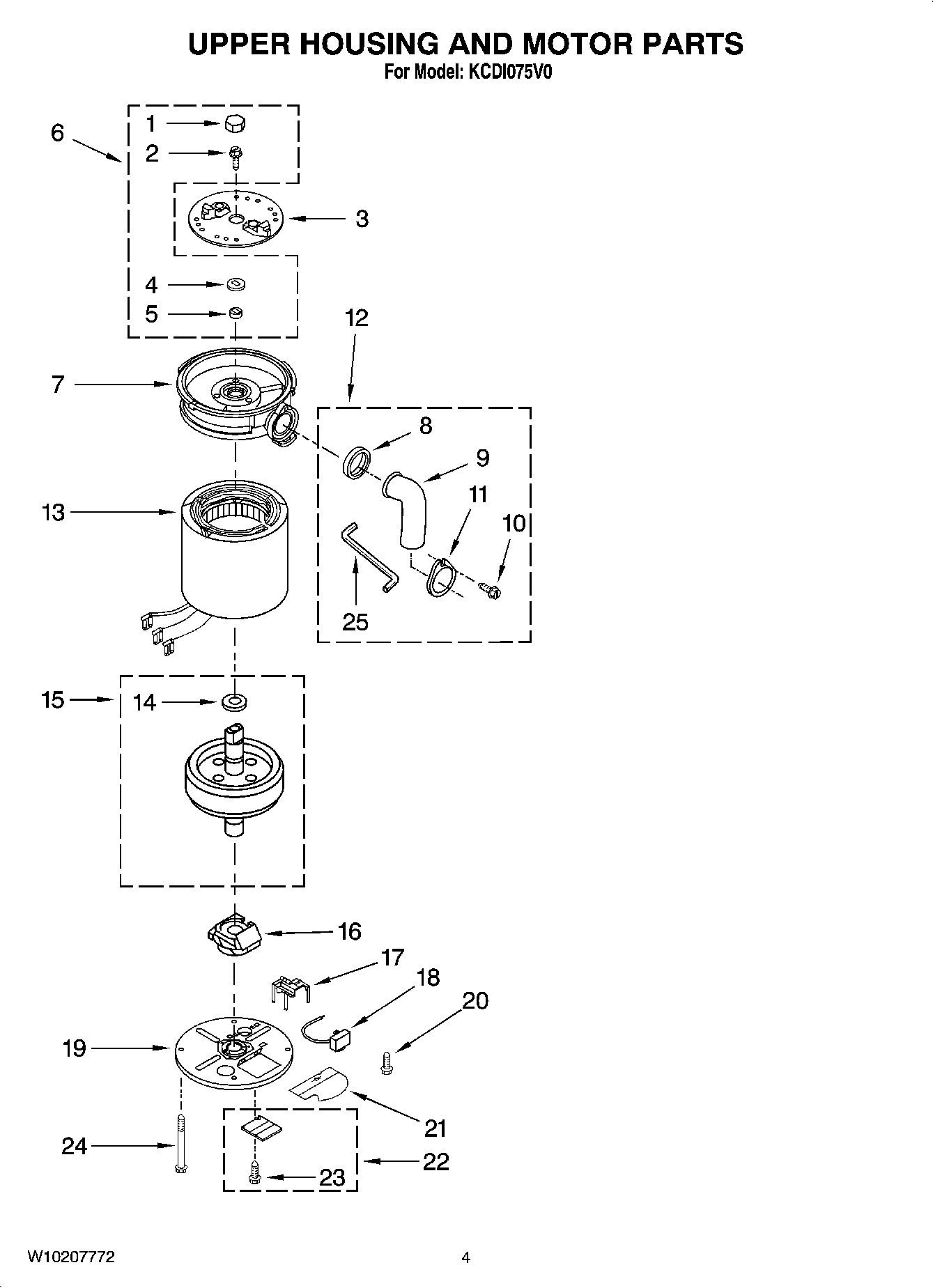

KCDI075V0 02 – UPPER HOUSING AND MOTOR PARTS

Products

PositionProduct
Following Parts Not Illustrated
DISPOSER
1Plug
2Bolt, Flange
3Shredder Assembly, Rotating
4Slinger
5Sleeve
64211578 Whirlpool Disposer Sleeve
7Upper End Bell Assembly
8Gasket, Tailpipe
94211317 Whirlpool Disposer Tail Pipe
10WP8204624 Whirlpool Bolt
11Flange, Tailpipe
12Installation Kit
13Stator Assembly
144211321 Whirlpool Washer
15Shaft Assembly
164211322 Whirlpool Disposer Actuator
178174312 Whirlpool Disposer Switch
18Overload, Protector
19Frame, Lower End Assembly
20Screw, Tailpipe
21Shield, Wire
22Cover, Terminal
23WP98008545 Whirlpool Screw
24Bolt, Thru
25WP8174310 Whirlpool Disposer Wrench
