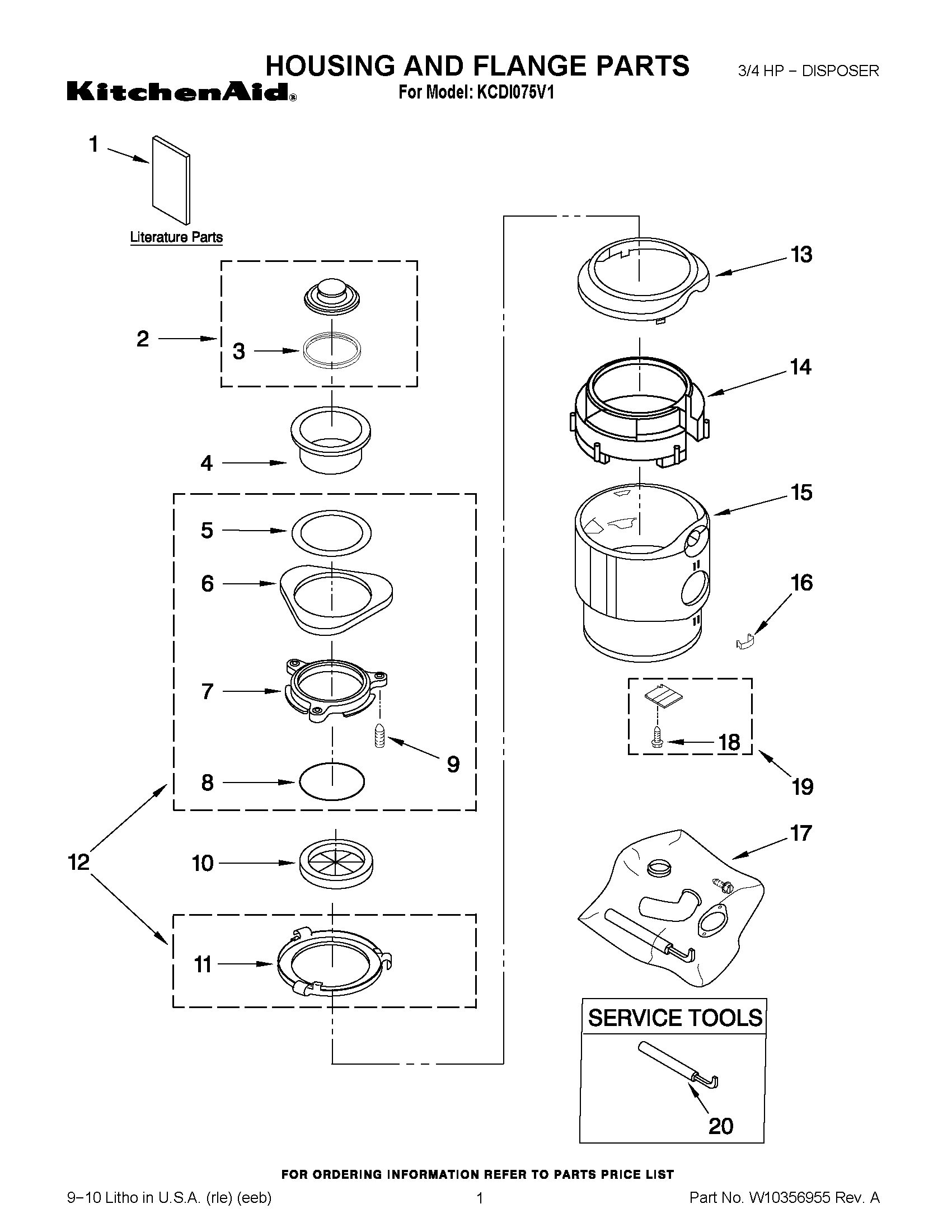

KCDI075V1 01 – HOUSING AND FLANGE PARTS

KCDI075V1 01 – HOUSING AND FLANGE PARTS

Written by

in

KCDI075V1 01 – HOUSING AND FLANGE PARTS

Products

PositionProduct
1Guide, Use & Care
24211577 Whirlpool Disposer Stopper
3Gasket, Stopper
4Flange, Sink
54211606 Whirlpool Disposer Seal
6Flange, Backup
74211304 Whirlpool Flange Disposer
84211306 Whirlpool Disposer Ring
9SCREW
10WP4211334 Whirlpool Disposer Gasket
11Flange, Body
12W10179031A Whirlpool Disposer Flange Kit
13Cap, Trim Shell
14Insulation
15Trim Shell Assy
16Clip
17Installation Kit
18SCREW
19Cover, Terminal
20WP8174310 Whirlpool Disposer Wrench
