KCDI250S0 02 – SECTION

KCDI250S0 02 – SECTION

Written by

in

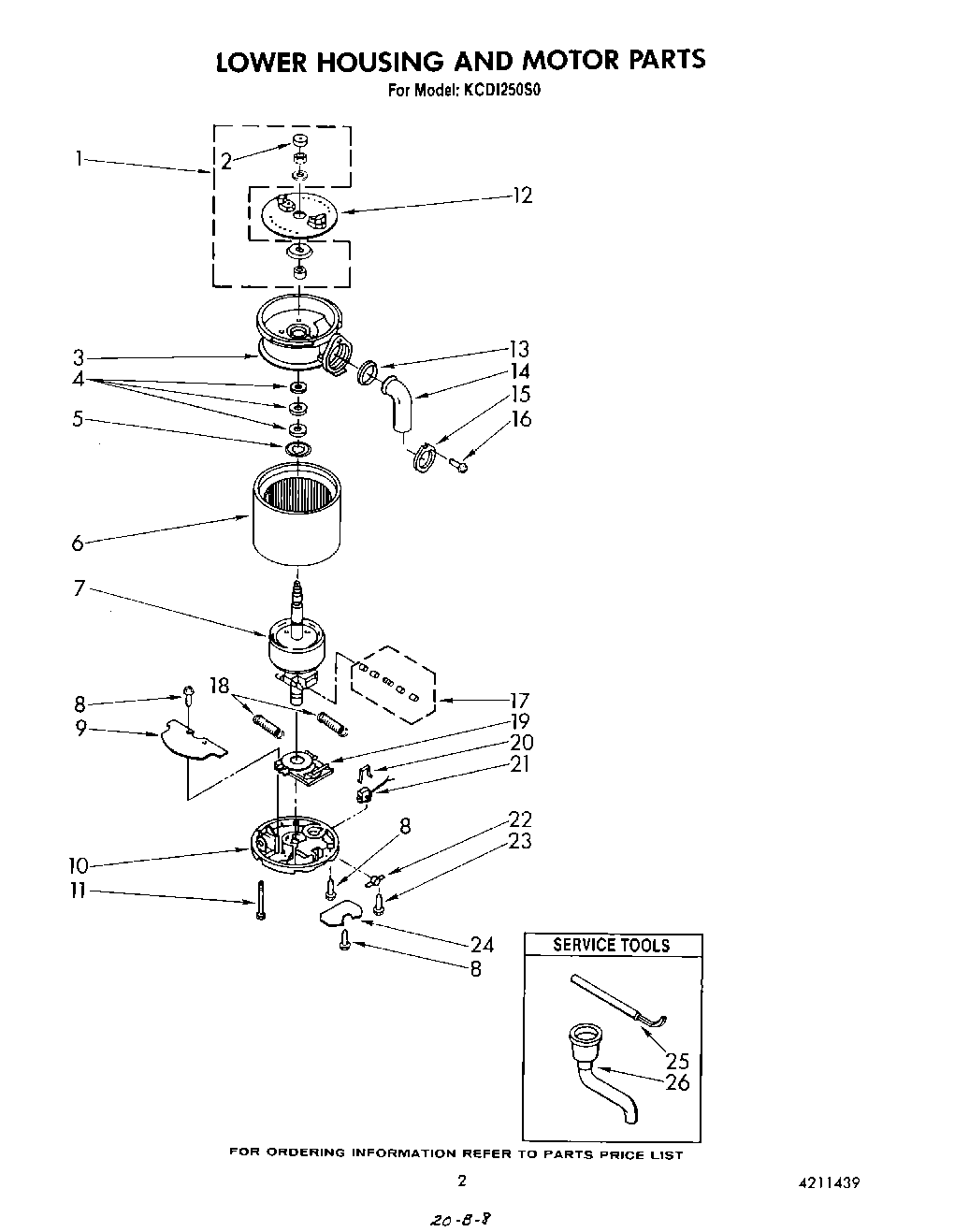

KCDI250S0 02 – SECTION

Products

PositionProduct
14211578 Whirlpool Disposer Sleeve
3End Bell Assembly (Upper)
4Washer, Phenolic (2)
5Washer, Rubber
6Stator Assembly
7Rotor And Shaft Assembly
8Screw
9Shield, Insulation
10End Frame, Assembly (Lower)
11Bolt, Thru (4)
12Shredder
13Gasket, Tailpipe
144211317 Whirlpool Disposer Tail Pipe
15Flange, Tailpipe
16WP8204624 Whirlpool Bolt
17Transfer Assembly
18Spring (2) (Centrifugal Actuator)
19Switch Assembly, Start
20Clip, Overload
21Protector, Overload
22Clamp, BX
23Screw, Clamp (2)
24Cover, Terminal
25WP8174310 Whirlpool Disposer Wrench
264211396 Whirlpool Disposer Adapter
