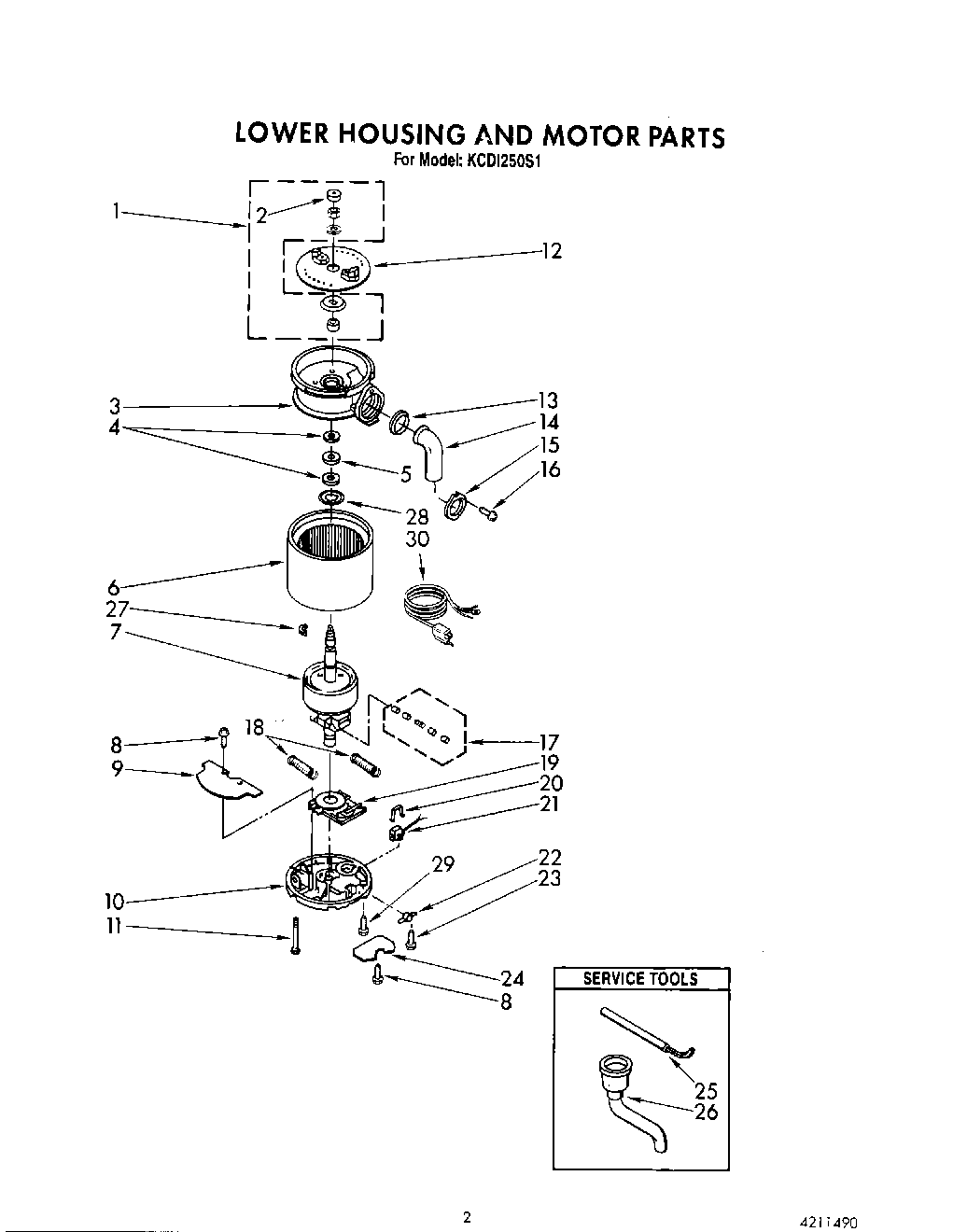

KCDI250S1 02 – SECTION

Products

Position	Product
1	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly, Upper
4	Washer, Phenolic (2)
5	Washer, Rubber
6	Stator Assembly
7	Rotor And Shaft Assembly
8	Screw
9	Shield, Insulation
10	End Frame Assembly (Lower)
11	Bolt, Thru (4)
12	Shredder
13	Gasket, Tailpipe
14	4211317 Whirlpool Disposer Tail Pipe
15	Flange, Tailpipe
16	WP8204624 Whirlpool Bolt
17	Transfer Assembly
18	Spring (2) (Centrifugal Actuator)
19	Switch Assembly, Start
20	Clip, Overload
21	Protector, Overload
22	Clamp, BX
23	Screw, Clamp (2)
24	Cover, Terminal
25	WP8174310 Whirlpool Disposer Wrench
26	4211396 Whirlpool Disposer Adapter
27	Ring, C
28	Washer, Thrust
29	Screw, Ground
30	PLUG & CORD (GC1000PE4 ONLY)
