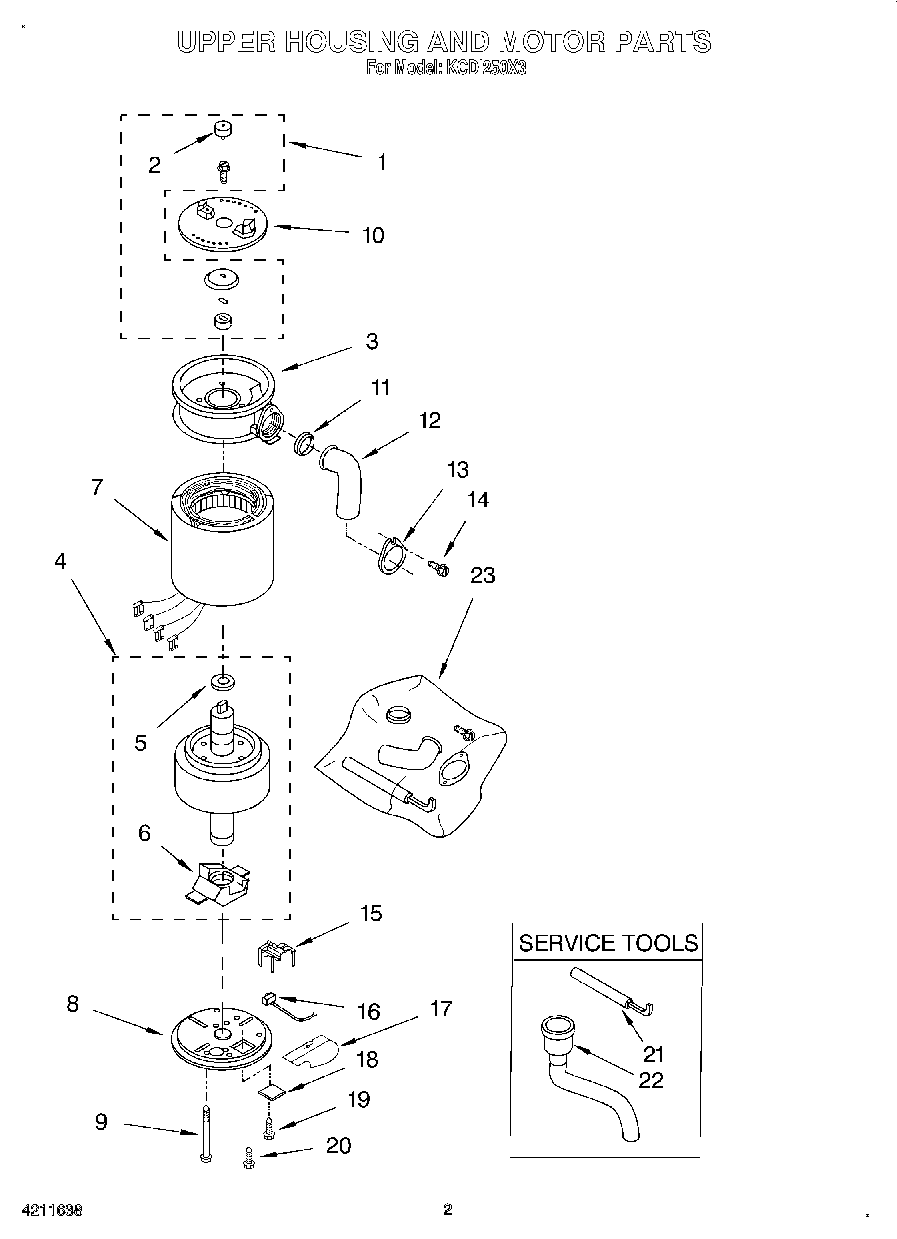

KCDI250X3 02 – SECTION

Products

Position	Product
	Guide, Use And Care
	Instructions, Installation (English)
2	4211578 Whirlpool Disposer Sleeve
3	End Bell Assembly, Upper
4	Shaft Assembly (Includes 8 & 35)
5	4211321 Whirlpool Washer
6	4211322 Whirlpool Disposer Actuator
7	Stator Assembly
8	End Frame, Assembly (Lower)
9	Bolt, Thru
10	Shredder Assembly, Rotating
11	Gasket, Tailpipe
12	4211317 Whirlpool Disposer Tail Pipe
13	Flange, Tailpipe
14	WP8204624 Whirlpool Bolt
15	Switch Assembly, Start & Reverse
16	Protect, Overload
17	Shield, Wire
18	Cover, Terminal
19	WP98008545 Whirlpool Screw
20	Screw, Tailpipe
21	WP8174310 Whirlpool Disposer Wrench
22	4211396 Whirlpool Disposer Adapter
23	Kit, Installation (Includes No. 11, 12, 13 14, 21, Instructions, and Use and Care Guide)
