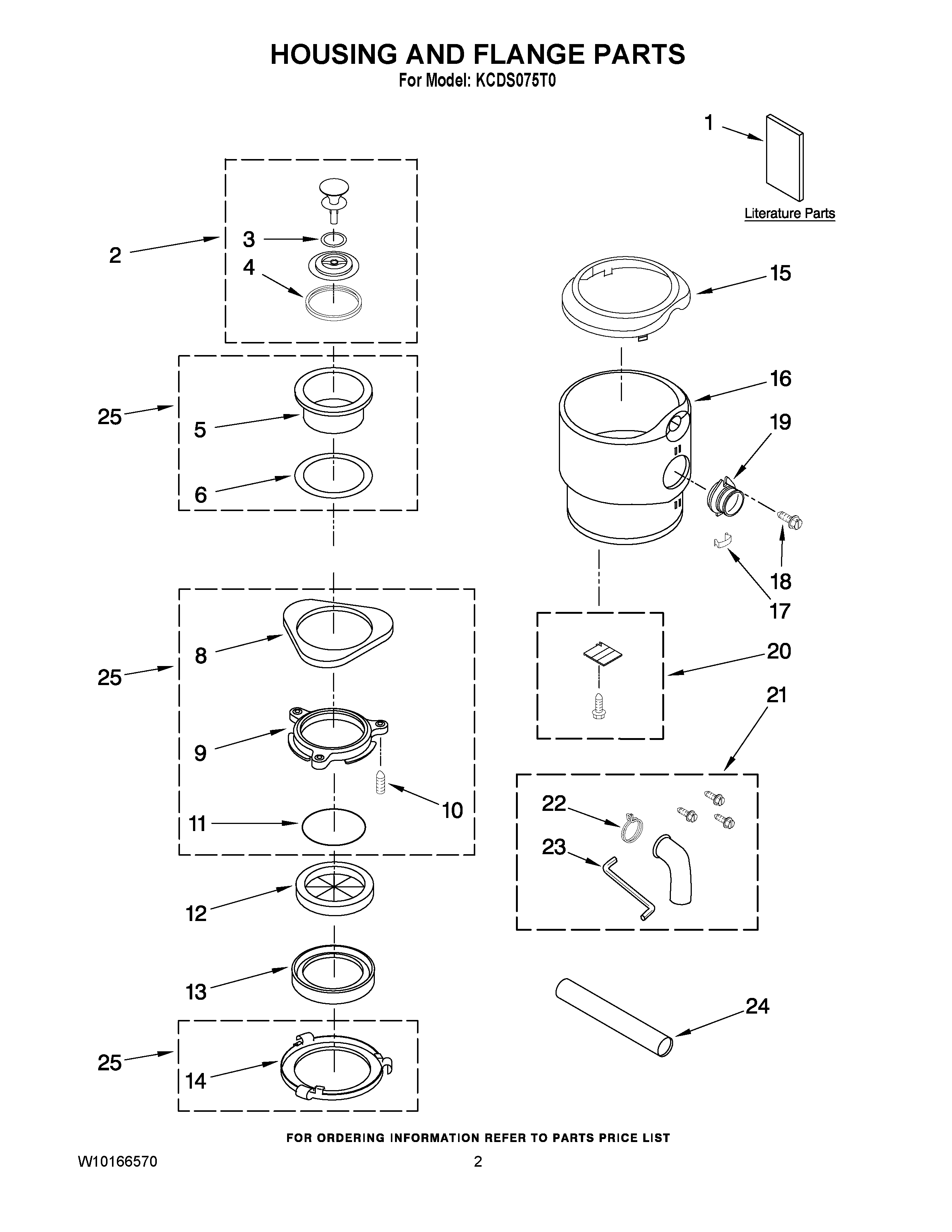

KCDS075T0 01 – HOUSING AND FLANGE PARTS

Products

Position	Product
NI	DISPOSER
1	Guide, Use & Care
1	Repair Parts List
2	WP4211398A Whirlpool Disposer Stopper
3	4211355 Whirlpool Disposer Gasket
4	Gasket, Stopper
5	Flange, Sink
6	4211606 Whirlpool Disposer Seal
8	Flange, Backup
9	4211304 Whirlpool Flange Disposer
10	Screw, Backup
11	4211306 Whirlpool Disposer Ring
12	W11087190 Whirlpool Garbage Disposal Splash Guard
13	Gasket, Mounting
14	Flange, Body
15	Cap, Trim Shell
16	Shell, Trim
17	Clip
18	Screw
19	W10352995 Whirlpool Disposer Coupler
20	Cover, Terminal
21	W10171110A Whirlpool Disposer Installation Kit
22	W11622908 Whirlpool Dishwasher Clamp
23	WP8174310 Whirlpool Disposer Wrench
24	Tube, Discharge
25	W10179031A Whirlpool Disposer Flange Kit
