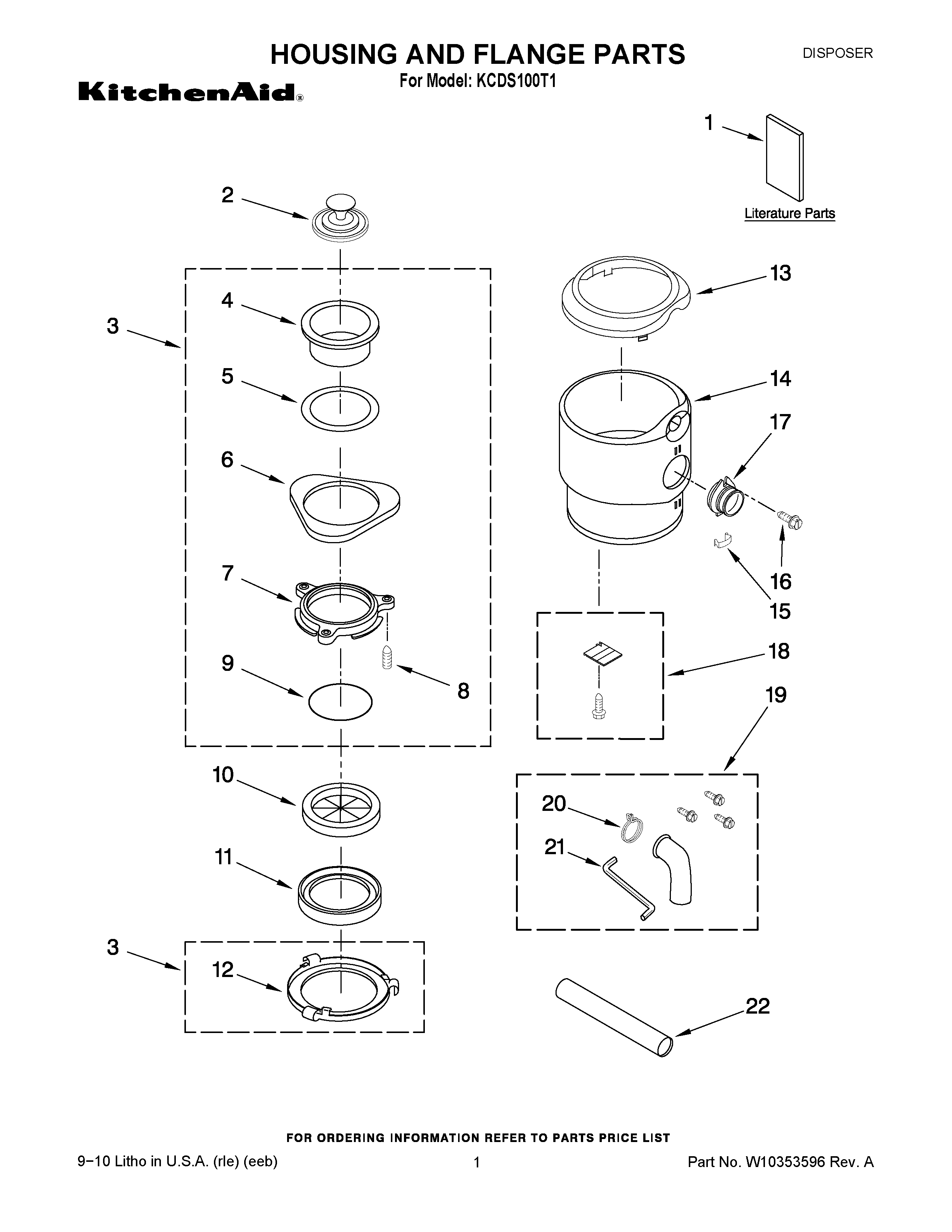

KCDS100T1 01 – HOUSING AND FLANGE PARTS

KCDS100T1 01 – HOUSING AND FLANGE PARTS

Written by

in

KCDS100T1 01 – HOUSING AND FLANGE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
2WP4211398A Whirlpool Disposer Stopper
3W10179031A Whirlpool Disposer Flange Kit
4Flange, Sink
54211606 Whirlpool Disposer Seal
6Flange, Backup
74211304 Whirlpool Flange Disposer
8SCREW
94211306 Whirlpool Disposer Ring
10W11087190 Whirlpool Garbage Disposal Splash Guard
11Gasket, Mounting
12Flange, Body
13Trim, Shell (Cap)
14W10171489 Whirlpool Shell Assembly
15Clip
16Screw
17W10352995 Whirlpool Disposer Coupler
18Cover, Terminal
19W10352987 Whirlpool Disposer Installation Kit
20W11622908 Whirlpool Dishwasher Clamp
21WP8174310 Whirlpool Disposer Wrench
22Tube, Discharge
