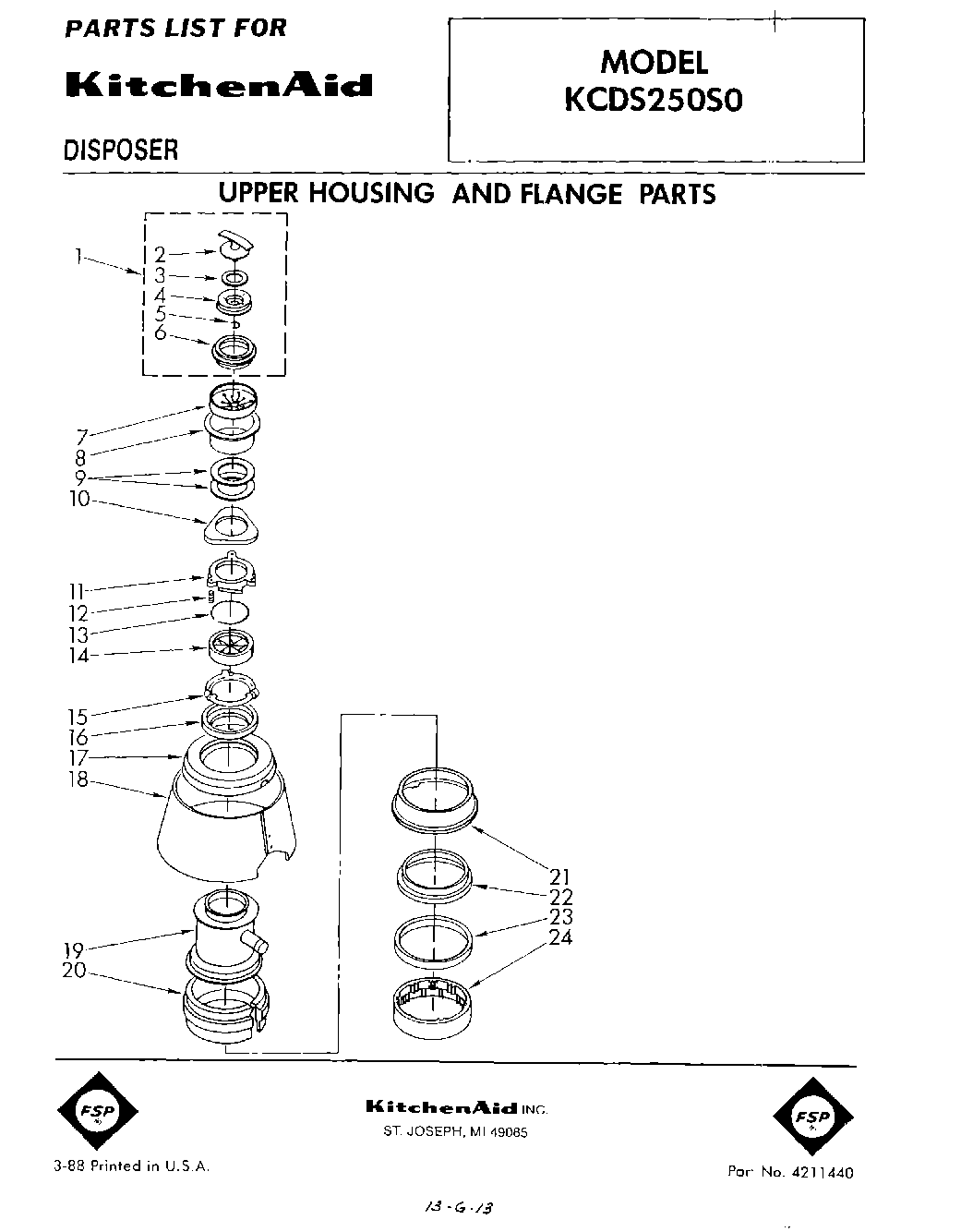

KCDS250S0 01 – SECTION

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Guide, Use And Care
1	WP4211398A Whirlpool Disposer Stopper
2	Handle, Stopper
3	4211355 Whirlpool Disposer Gasket
4	Stopper, Body
5	Ring, Retaining
6	Gasket, Stopper
7	Baffle, Removable
8	4211301 Whirlpool Disposer Flange
9	WP4211302 Whirlpool Disposer Seal
10	4211303 Whirlpool Disposer Flange
11	4211304 Whirlpool Flange Disposer
12	4211305 Whirlpool Disposer Screw
13	4211306 Whirlpool Disposer Ring
14	WP4211334 Whirlpool Disposer Gasket
15	Flange, Body
16	Gasket, Body
17	Shell Assembly, Trim (Top)
18	Band, Trim Assembly
19	Container, Body Assembly (Includes Sound Insulation)
20	Insulation, Top
21	Body, Lower
22	Gasket, Shredder
23	Insulation, Sound
24	Shredder, Stationary
