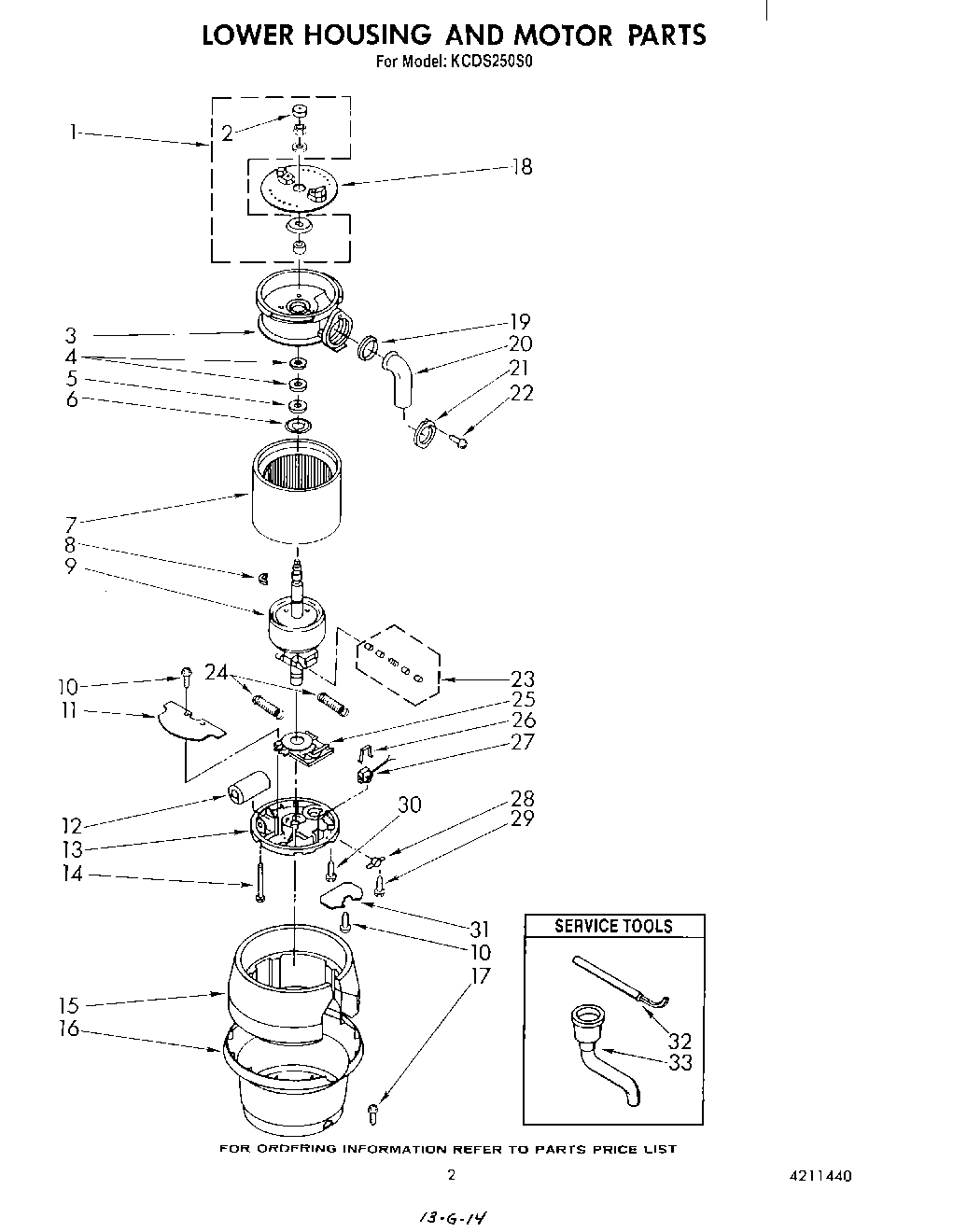

KCDS250S0 02 – SECTION

Products

PositionProduct
14211578 Whirlpool Disposer Sleeve
3End Bell Assembly (Upper)
4Washer, Phenolic (2)
5Washer, Rubber
6Washer, Thrust
7Stator Assembly
8Ring, C
9Rotor And Shaft Assembly
10Screw
11Shield, Insulation
12Capacitor
13End Frame, Assembly (Lower)
14Bolt, Thru (4)
15Insulation, Bottom
16Trim, Shell Assembly
17Screw, Tapping
18Shredder Assembly, Rotating
19Gasket, Tailpipe
204211317 Whirlpool Disposer Tail Pipe
21Flange, Tailpipe
22WP8204624 Whirlpool Bolt
23Transfer Assembly
24Spring (2) (Centrifugal Actuator)
25Switch Assembly, Start
26Clip, Overload
27Overload, Protector
28Clamp, BX
29Screw, Clamp (2)
30Screw, Ground
31Cover, Terminal
32WP8174310 Whirlpool Disposer Wrench
334211396 Whirlpool Disposer Adapter
