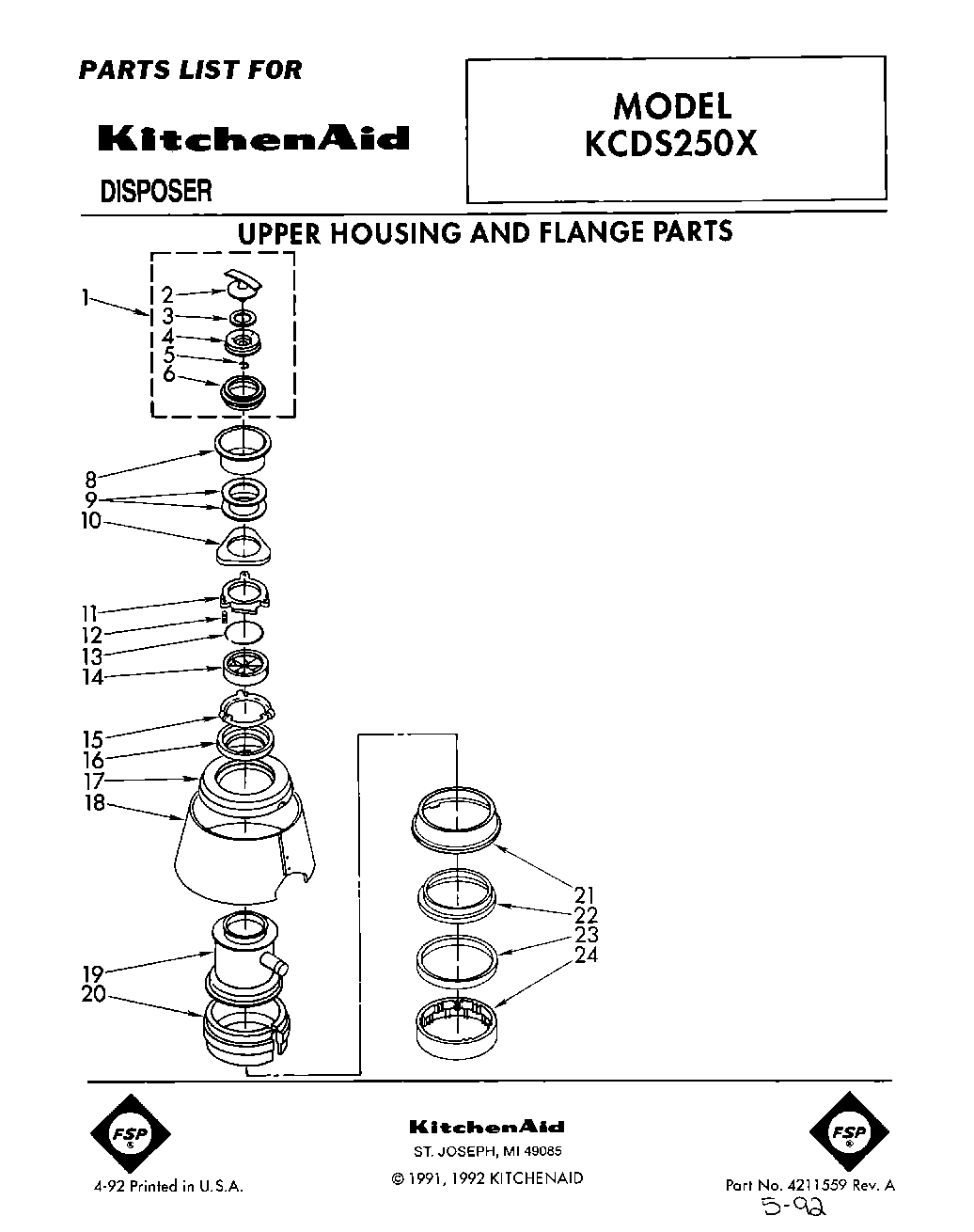

KCDS250X 01 – SECTION

KCDS250X 01 – SECTION

Written by

in

KCDS250X 01 – SECTION

Products

PositionProduct
Repair Parts List
Guide, Use And Care
Instructions, Installation
1Stopper Assembly
2Handle, Stopper
34211355 Whirlpool Disposer Gasket
4Stopper, Body
5Ring, Retaining
6Gasket, Stopper
84211301 Whirlpool Disposer Flange
9WP4211302 Whirlpool Disposer Seal
104211303 Whirlpool Disposer Flange
114211304 Whirlpool Flange Disposer
124211305 Whirlpool Disposer Screw
134211306 Whirlpool Disposer Ring
14WP4211334 Whirlpool Disposer Gasket
15Flange, Body
16Gasket, Body
17Shell Assembly, Trim (Top)
18Band, Trim Assembly
19Container, Body Assembly (Includes Sound Insulation)
20Insulation, Top
21Body, Lower
22Gasket, Shredder
23Insulation, Sound
24Shredder, Stationary
