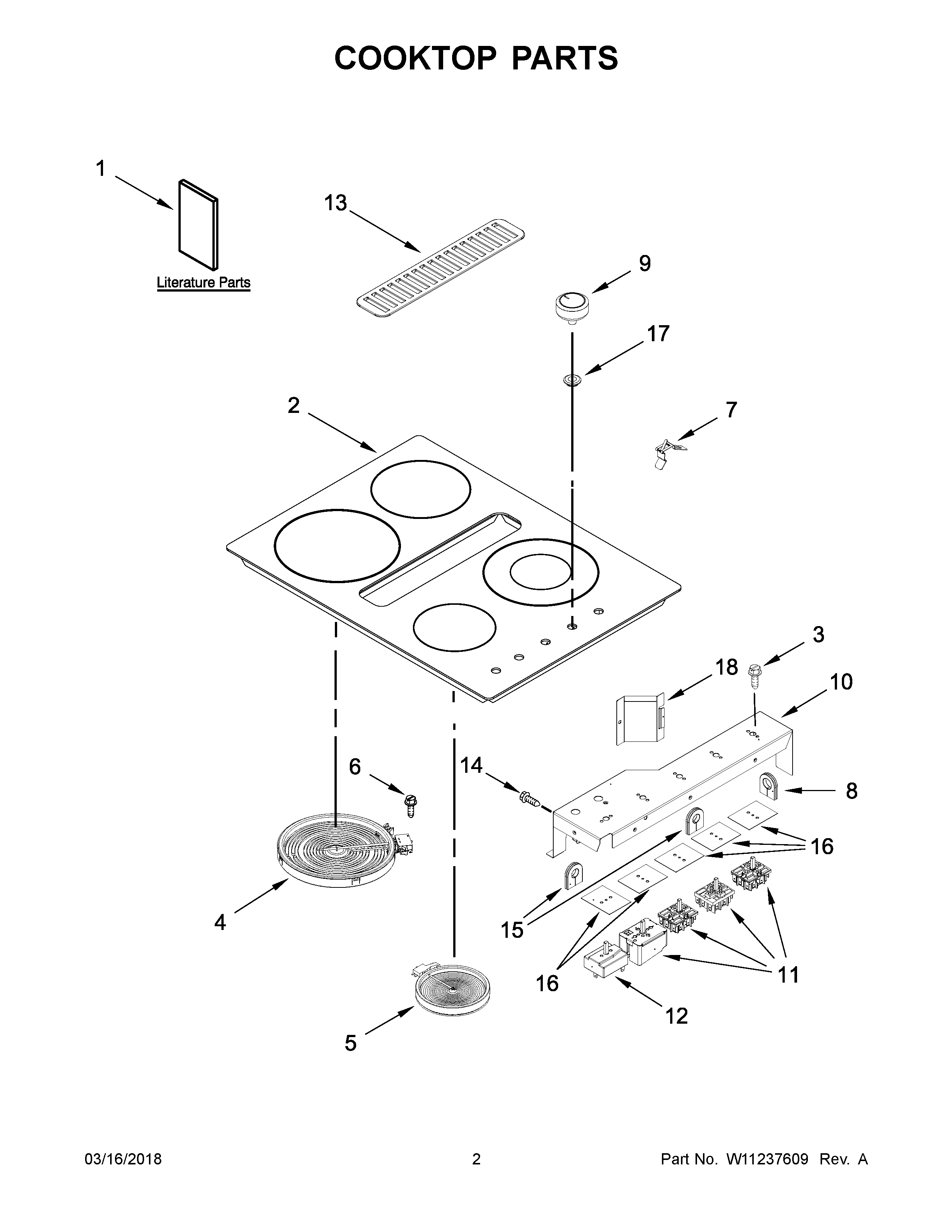

KCED600GBL01 02 – COOKTOP PARTS

Products

Position	Product
NI	W11190475 Whirlpool Wire Harness
NI	W11465762 Whirlpool Wire Harness
NI	W11190478 Whirlpool Wire Harness
NI	W10909126 Whirlpool Screw
NI	SCREW
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	CABINET (NOT A SERVICEABLE PART)
1C	DIAGRAM, WIRING
1B	SHEET, TECH
1A	INSTRUCTIONS, USER
1	INSTRUCTIONS, INSTALLATION
2A	W11051485 Whirlpool Cooktop
2	W11051484 Whirlpool Cooktop
3	WPL 7101P30960
4A	W11517959 Whirlpool Electric Range Radiant Surface Element
4	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5A	WPW10342780 Whirlpool Surface Element
5	ELMNT-SURF
6	SCREW
7	WPW10225448 Whirlpool Spring Assembly
8	GROMMET, WIRE
9	W11084158 Whirlpool Knob
10	W10815302 Whirlpool Mounting Bracket
11	W10917724 Whirlpool Infinite Switch
11B	SWITCH-INF
11A	W10911303 Whirlpool Infinite Switch
12	W11690658 Whirlpool Switch
13	WPW10205094 Whirlpool Grille
14	SCREW
15	GROMMET, WIRE
16	3183956 Whirlpool Oven Seal Switch
17	BEZEL-KNOB
18	SHIELD, HEAT
