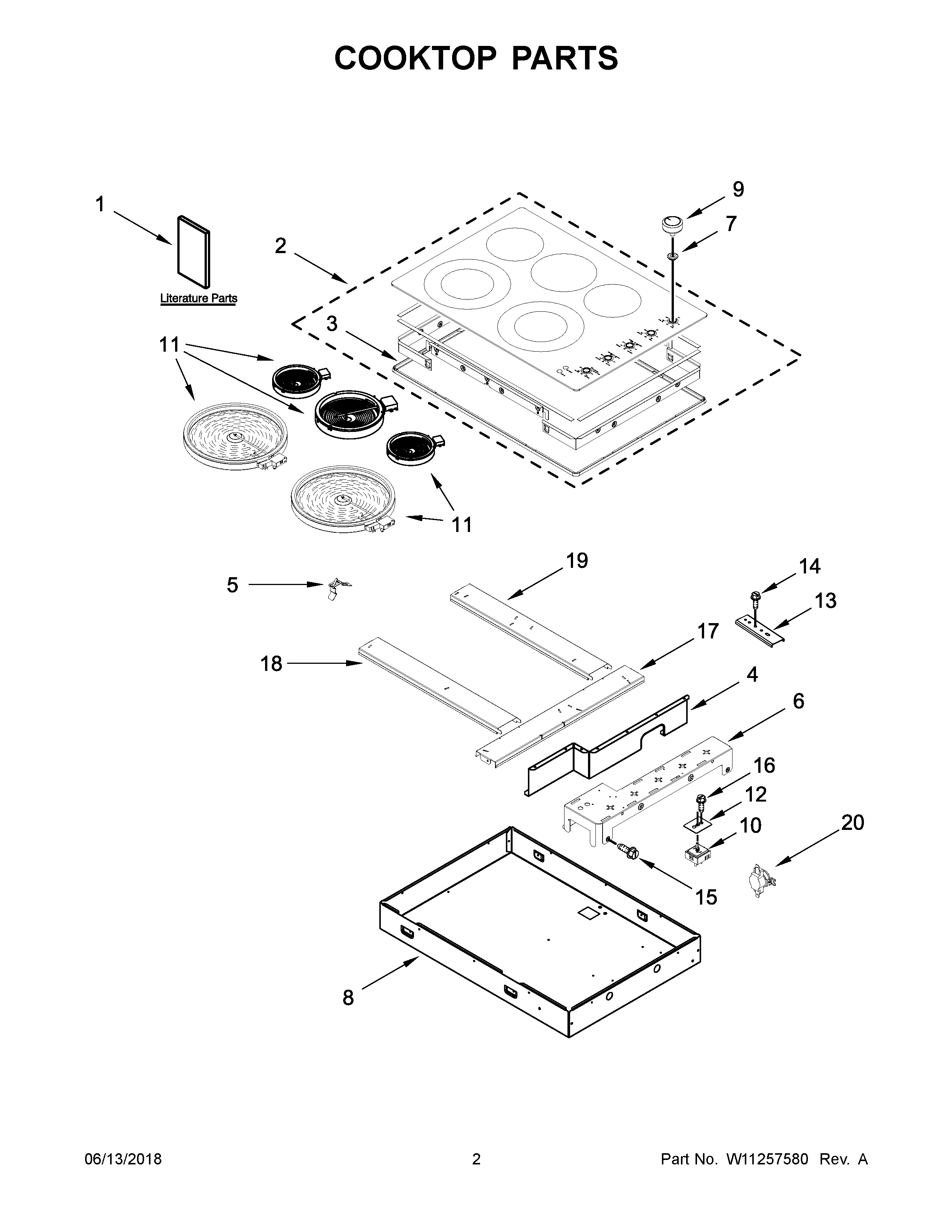

KCES550HBL00 02 – COOKTOP PARTS

Products

Position	Product
NI	W11110552 Whirlpool Wire Harness
NI	W10491984 Whirlpool Switch Seal
NI	INSULATION, COOKTOP (KNOB)
NI	WP8286642 Whirlpool Tape
NI	CABINET (NOT A SERVICEABLE PART)
NI	SCREW
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1C	DIAGRAM, WIRING
2	W11255351 Whirlpool Cooktop
2A	W11259505 Whirlpool Cooktop
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
6	PLATE, SWITCH
7	BEZEL-KNOB
9	W11084158 Whirlpool Knob
10C	W11259362 Whirlpool Infinite Switch
10B	W11661906 Whirlpool Range Infinite Switch
10A	W10911303 Whirlpool Infinite Switch
10	SWITCH-INF
10D	W10917724 Whirlpool Infinite Switch
11C	W11259508 Whirlpool Surface Element
11D	WPW10342780 Whirlpool Surface Element
11	W11517959 Whirlpool Electric Range Radiant Surface Element
11A	ELMNT-SURF
11B	WP8273993 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
16	WPL 7101P30960
17	RAIL, VERTICAL
18	RAIL, HORIZONTAL FRONT
19	RAIL, HORIZONTAL REAR
20	W10464566 Whirlpool Thermostat
