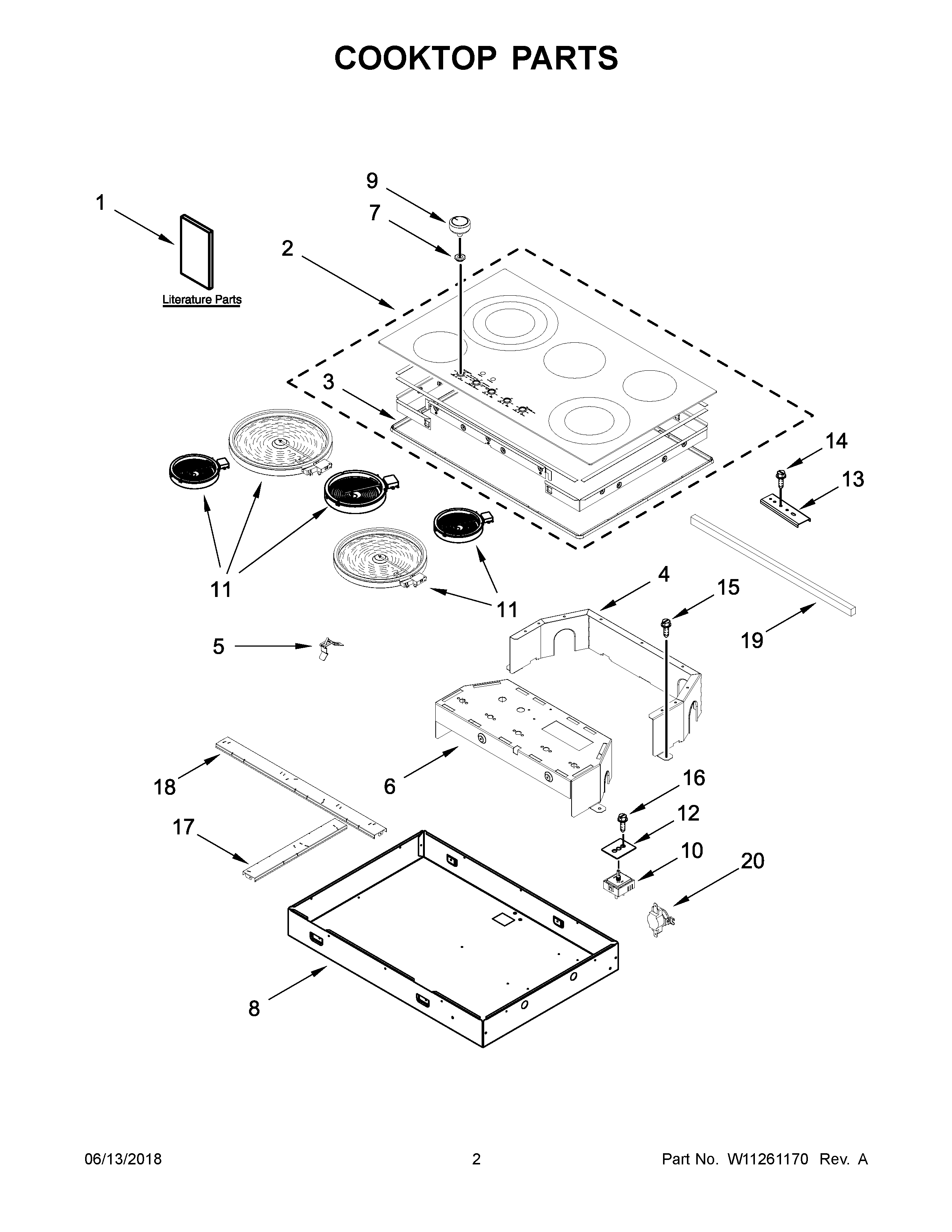

KCES556HSS00 02 – COOKTOP PARTS

Products

Position	Product
NI	INSULATION, COOKTOP
NI	SCREW
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11110554 Whirlpool Wire Harness
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
1	INSTRUCTIONS, INSTALLATION
1B	GUIDE, USE & CARE
1C	DIAGRAM, WIRING
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
2A	W11263253 Whirlpool Cooktop
2	W11261601 Whirlpool Cooktop
4	SHIELD, SWITCH
5	WPW10225448 Whirlpool Spring Assembly
6	PLATE, SWITCH
7	BEZEL-KNOB
9	W11084158 Whirlpool Knob
10C	W11259362 Whirlpool Infinite Switch
10B	W11661906 Whirlpool Range Infinite Switch
10D	W10911303 Whirlpool Infinite Switch
10	W10917724 Whirlpool Infinite Switch
10A	W11129442 Whirlpool Surface Infinite Element Switch
11C	W11259508 Whirlpool Surface Element
11D	ELMNT-SURF
11A	W11563195 Whirlpool Surface Element
11B	WP8273993 Whirlpool Surface Element
11	WPW10342780 Whirlpool Surface Element
12	3183956 Whirlpool Oven Seal Switch
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
16	WPL 7101P30960
17	RAIL, SHORT
18	RAIL, HORIZONTAL
19	W11261880 Whirlpool Foam Seal
20	W10471482 Whirlpool Thermostat
