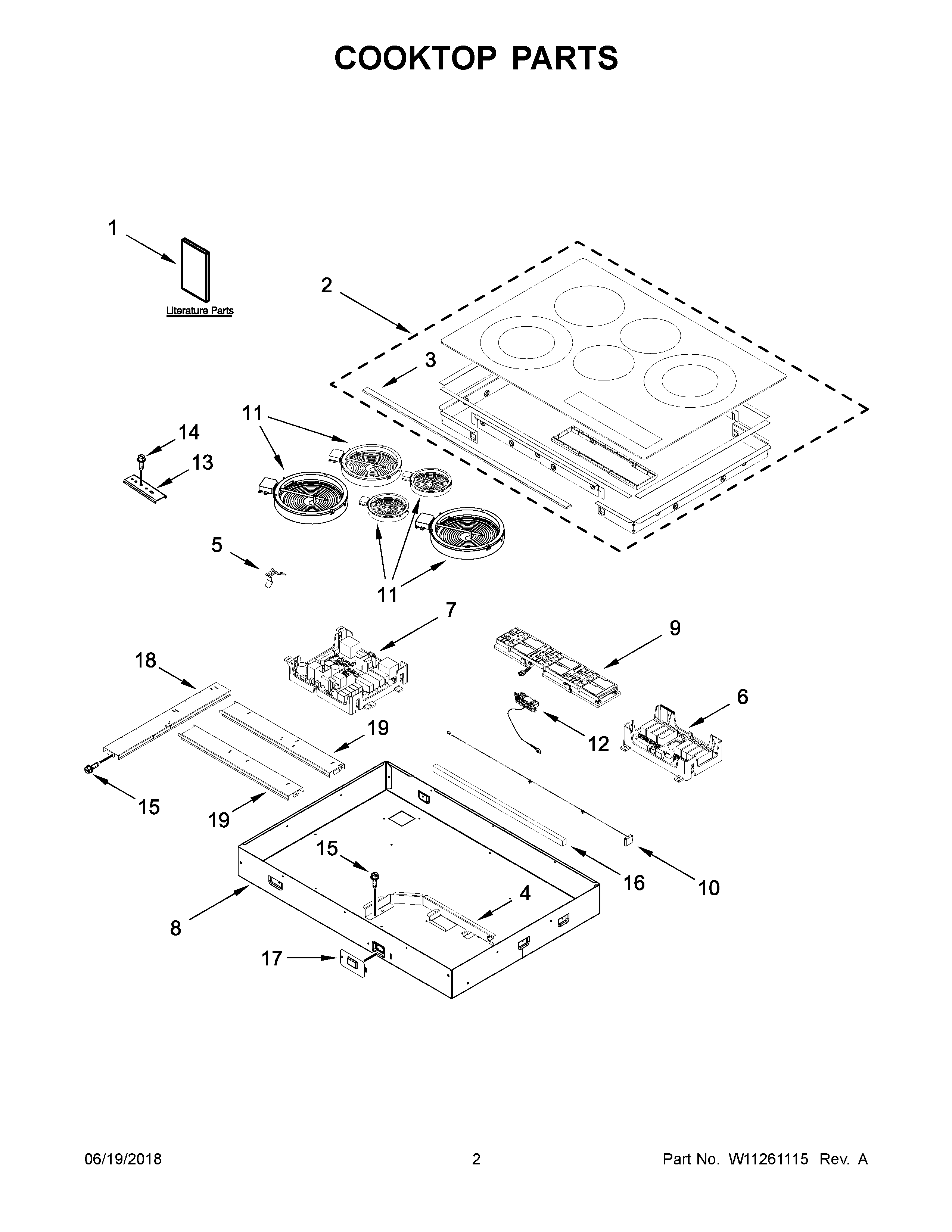

KCES950HBL00 02 – COOKTOP PARTSadmin2025-04-26T12:28:26+00:00KCES950HBL00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | W10491984 Whirlpool Switch Seal |
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | HARNESS, MAIN |
| NI | WP8286642 Whirlpool Tape |
| 1C | DIAGRAM, WIRING |
| 1D | GUIDE, INTERNET CONNECTIVITY |
| 1B | GUIDE, USE & CARE |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1A | INSTRUCTIONS, UNDERCOUNTER INSTALLATION |
| 2 | COOKTOP (BLACK) |
| 2A | COOKTOP (STAINLESS) |
| 4 | SHIELD, HEAT |
| 5 | WPW10225448 Whirlpool Spring Assembly |
| 6 | W11259509 Whirlpool Electronic Control Board + Core |
| 7 | MANAGER, COPERNICUS APPLIANCE |
| 9 | ASSEMBLY, UI |
| 10 | ANTENNA |
| 11 | W11259508 Whirlpool Surface Element |
| 11D | W11517959 Whirlpool Electric Range Radiant Surface Element |
| 11A | WP8273993 Whirlpool Surface Element |
| 11B | ELMNT-SURF |
| 11C | WPW10342780 Whirlpool Surface Element |
| 12 | ASSEMBLY, LOKI WIFI |
| 13 | 8186533 Whirlpool Hardware |
| 14 | WP3400093 Whirlpool Screw |
| 15 | SCREW |
| 16 | TOP, FOAM (HEAT SHIELD) |
| 18 | RAIL, VERTICAL |
| 19 | RAIL, HORIZONTAL |
