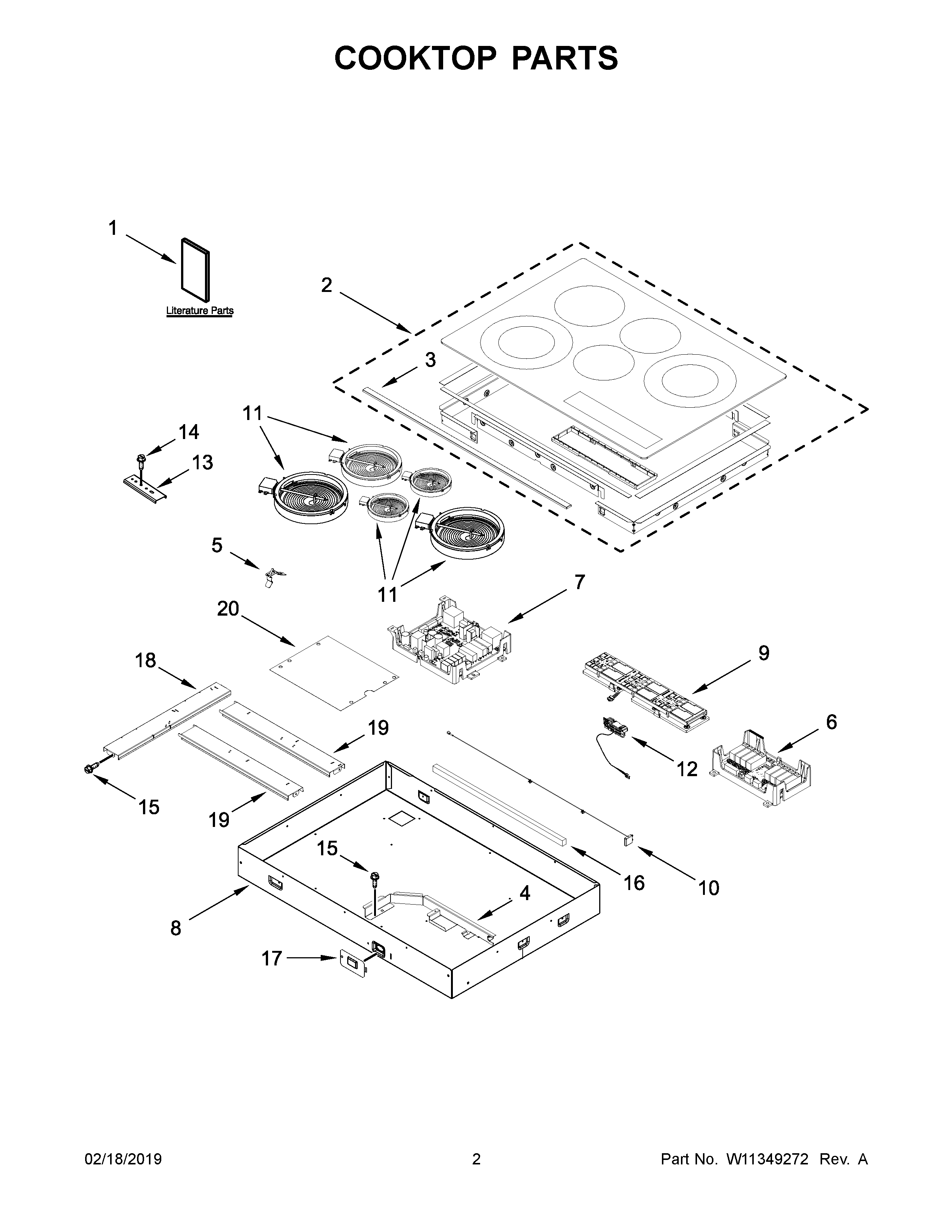

KCES950HBL01 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	CABINET (NOT A SERVICEABLE PART)
1D	GUIDE, INTERNET CONNECTIVITY
1C	DIAGRAM, WIRING
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1B	GUIDE, USE & CARE
1	INSTRUCTIONS, INSTALLATION
2	COOKTOP (BLACK)
2A	COOKTOP (STAINLESS)
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	W11259509 Whirlpool Electronic Control Board + Core
7	W11350287-includeCORE Whirlpool W11350287 Refrigerator Electronic Control Board
9	ASSEMBLY, UI
10	ANTENNA
11	W11259508 Whirlpool Surface Element
11B	ELMNT-SURF
11A	WP8273993 Whirlpool Surface Element
11D	W11517959 Whirlpool Electric Range Radiant Surface Element
11C	WPW10342780 Whirlpool Surface Element
12	ASSEMBLY, LOKI WIFI
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	TOP, FOAM (HEAT SHIELD)
18	RAIL, VERTICAL
19	RAIL, HORIZONTAL
20	PAD, INSULATION
