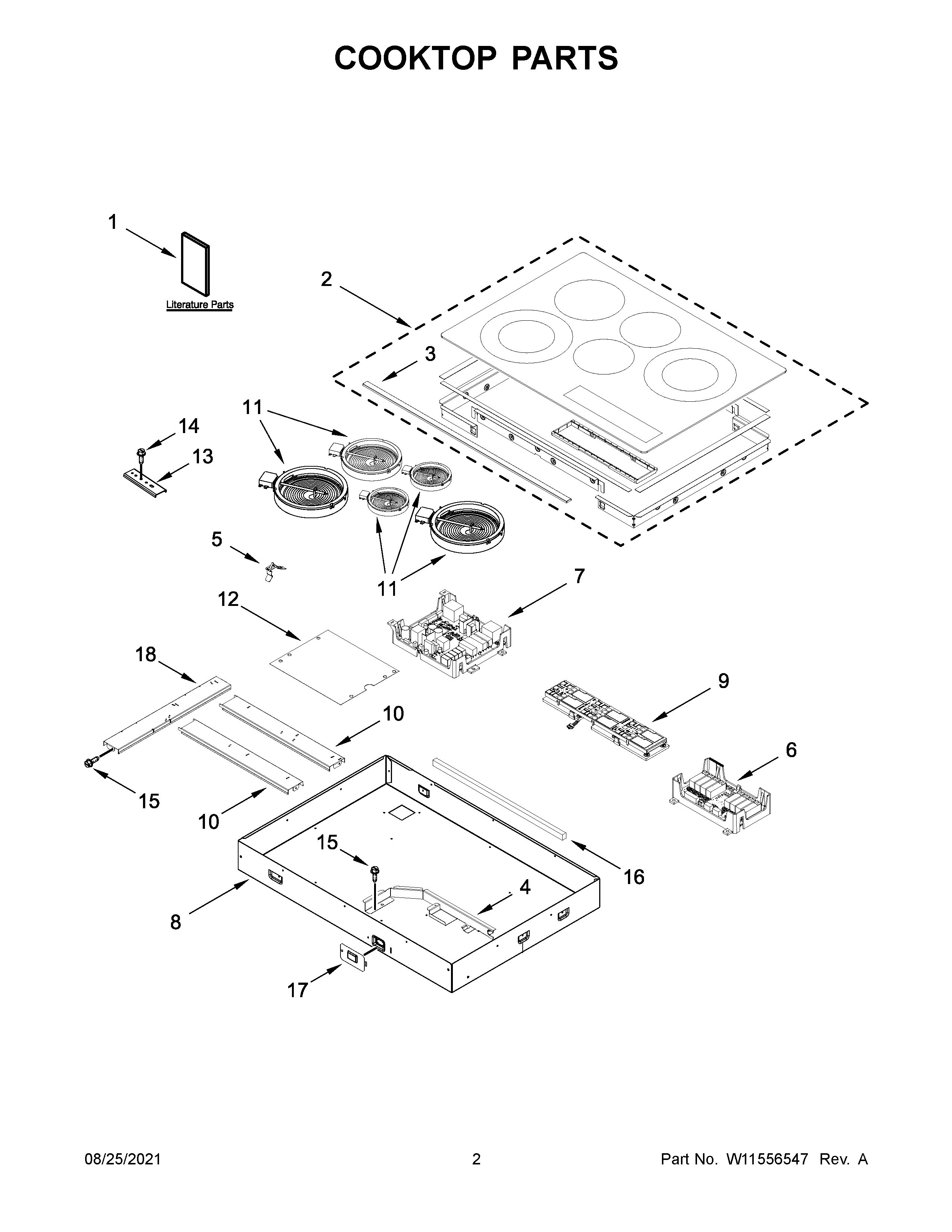

KCES950KSS00 02 – COOKTOP PARTS

KCES950KSS00 02 – COOKTOP PARTS

Written by

in

KCES950KSS00 02 – COOKTOP PARTS

Products

PositionProduct
NISCREW
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIWP8286642 Whirlpool Tape
NIW10491984 Whirlpool Switch Seal
1INSTALLATION INSTRUCTIONS
1CDIAGRAM, WIRING
1BOWNERS MANUAL
1AINSTRUCTIONS, UNDERCOUNTER INSTALLATION
2W11560568 Whirlpool Cooktop
2ACOOKTOP GLASS ASSEMBLY (STAINLESS)
4SHIELD, HEAT
5WPW10225448 Whirlpool Spring Assembly
6W11259509 Whirlpool Electronic Control Board + Core
7W11350287-includeCORE Whirlpool W11350287 Refrigerator Electronic Control Board
9UI ASSEMBLY
10RAIL, HORIZONTAL
11CWPW10342780 Whirlpool Surface Element
11BELMNT-SURF
11AWP8273993 Whirlpool Surface Element
11W11259508 Whirlpool Surface Element
11DW11517959 Whirlpool Electric Range Radiant Surface Element
12PAD, INSULATION
138186533 Whirlpool Hardware
14WP3400093 Whirlpool Screw
16TOP, FOAM (HEAT SHIELD)
18RAIL, VERTICAL
