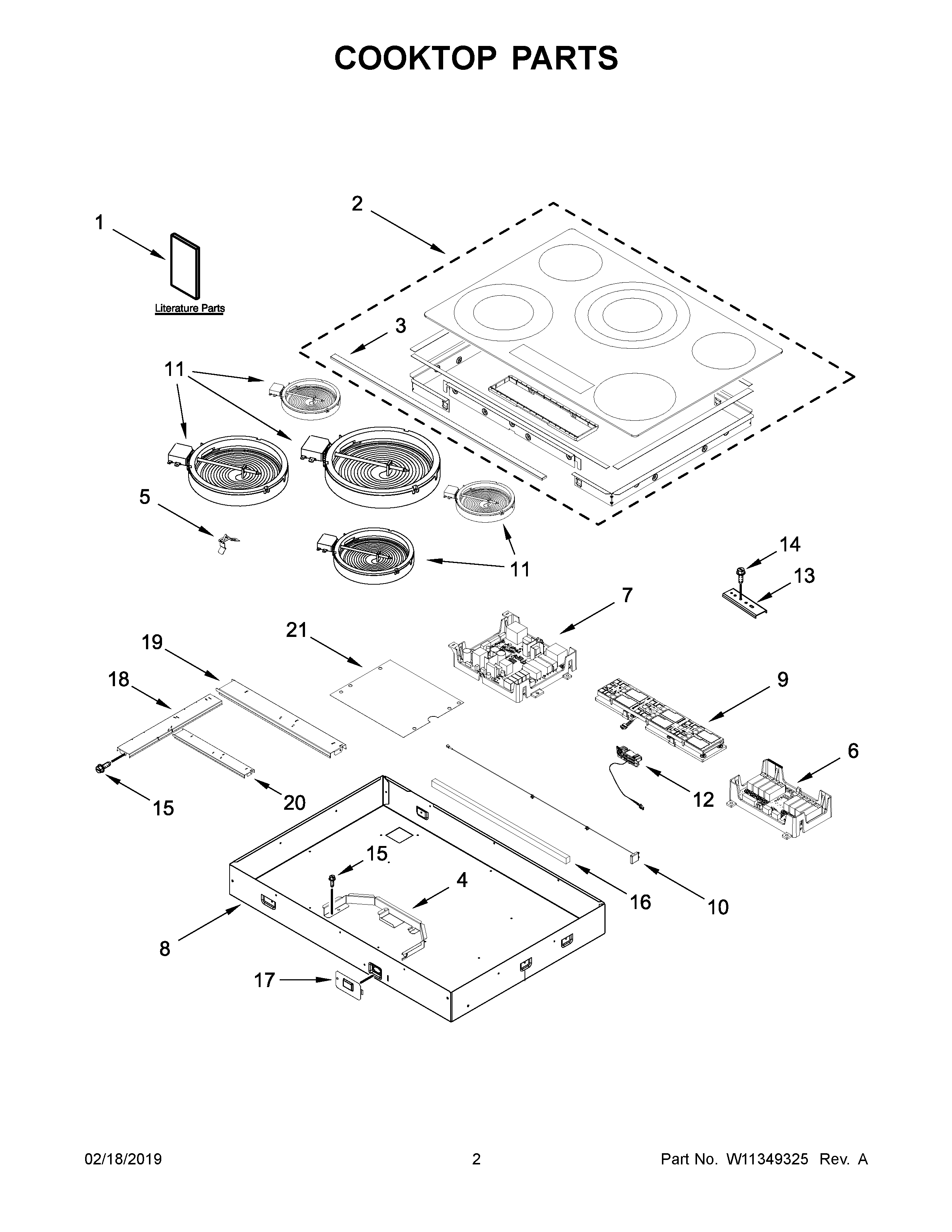

KCES956HBL01 02 – COOKTOP PARTS

Products

Position	Product
NI	WP8286642 Whirlpool Tape
NI	W10491984 Whirlpool Switch Seal
NI	HARNESS, MAIN
NI	SCREW
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
NI	WP3400015 Whirlpool Screw
1C	DIAGRAM, WIRING
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1D	GUIDE, INTERNET CONNECTIVITY
1	INSTRUCTIONS, INSTALLATION
2	COOKTOP (BLACK)
2A	COOKTOP (STAINLESS)
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	W11259509 Whirlpool Electronic Control Board + Core
7	W11350303-includeCORE Whirlpool W11350303 Electronic Control Board
9	ASSEMBLY, UI
10	ANTENNA
11C	WP8273993 Whirlpool Surface Element
11A	ELMNT-SURF
11B	W11563195 Whirlpool Surface Element
11	W11259508 Whirlpool Surface Element
11D	WPW10342780 Whirlpool Surface Element
12	ASSEMBLY, LOKI WIFI
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	TOP, FOAM (HEAT SHIELD)
18	RAIL, SHORT COOKTOP
19	RAIL, AUXILIAR
20	RAIL, HORIZONTAL
21	PAD, INSULATION
