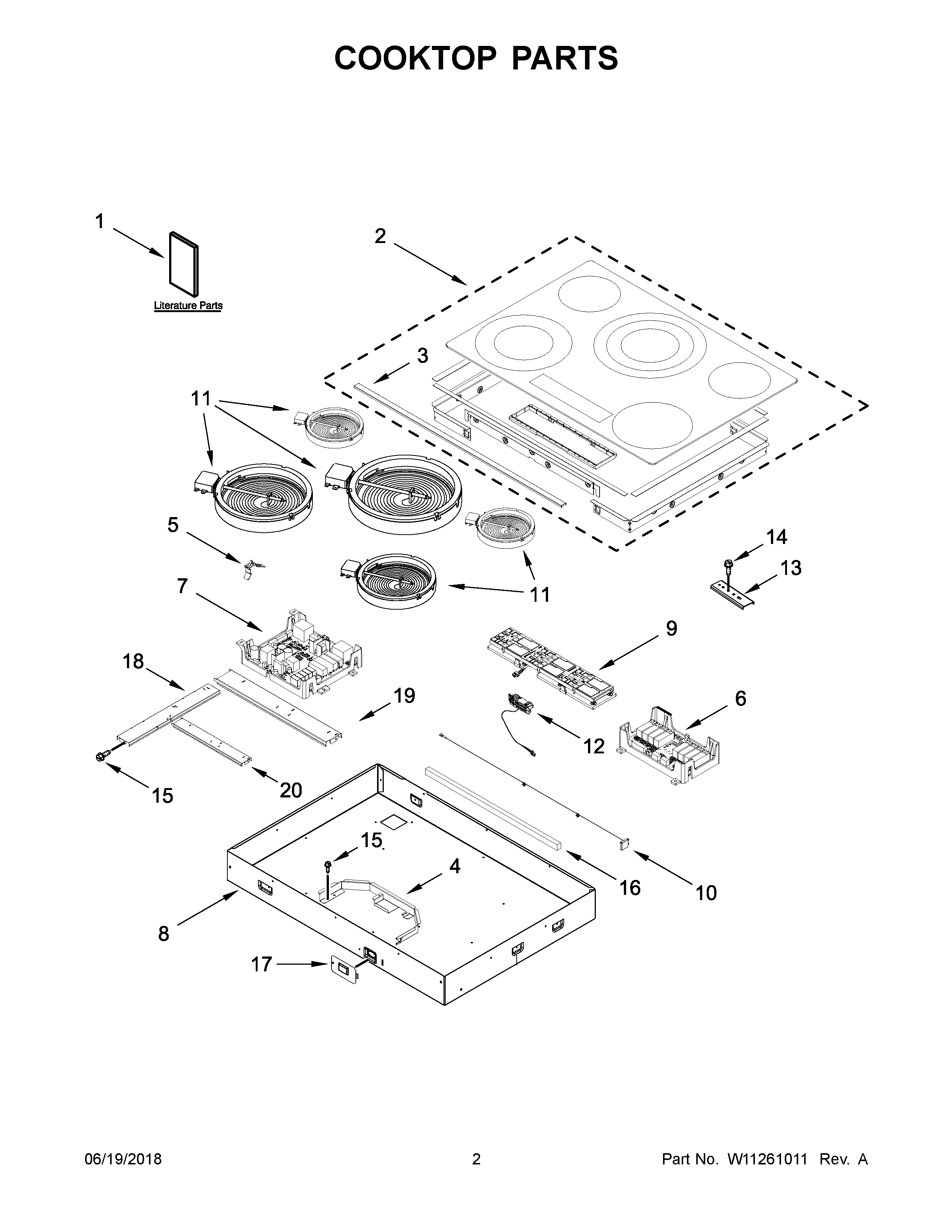

KCES956HSS00 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	SCREW
NI	W10491984 Whirlpool Switch Seal
NI	WP8286642 Whirlpool Tape
NI	CABINET (NOT A SERVICEABLE PART)
NI	Nut
NI	WP3400015 Whirlpool Screw
1D	GUIDE, INTERNET CONNECTIVITY
1C	DIAGRAM, WIRING
1B	GUIDE, USE & CARE
1A	INSTRUCTIONS, UNDERCOUNTER INSTALLATION
1	INSTRUCTIONS, INSTALLATION
2A	COOKTOP (STAINLESS)
2	COOKTOP (BLACK)
4	SHIELD, HEAT
5	WPW10225448 Whirlpool Spring Assembly
6	W11259509 Whirlpool Electronic Control Board + Core
7	APPLIANCE MANAGER, COPERNICUS
9	ASSEMBLY, UI
10	ANTENNA
11	W11259508 Whirlpool Surface Element
11D	WPW10342780 Whirlpool Surface Element
11C	WP8273993 Whirlpool Surface Element
11B	W11563195 Whirlpool Surface Element
11A	ELMNT-SURF
12	ASSEMBLY, LOKI WIFI
13	8186533 Whirlpool Hardware
14	WP3400093 Whirlpool Screw
15	SCREW
16	TOP, FOAM (HEAT SHIELD)
18	RAIL, SHORT COOKTOP
19	RAIL, AUXILIAR
20	RAIL, HORIZONTAL
