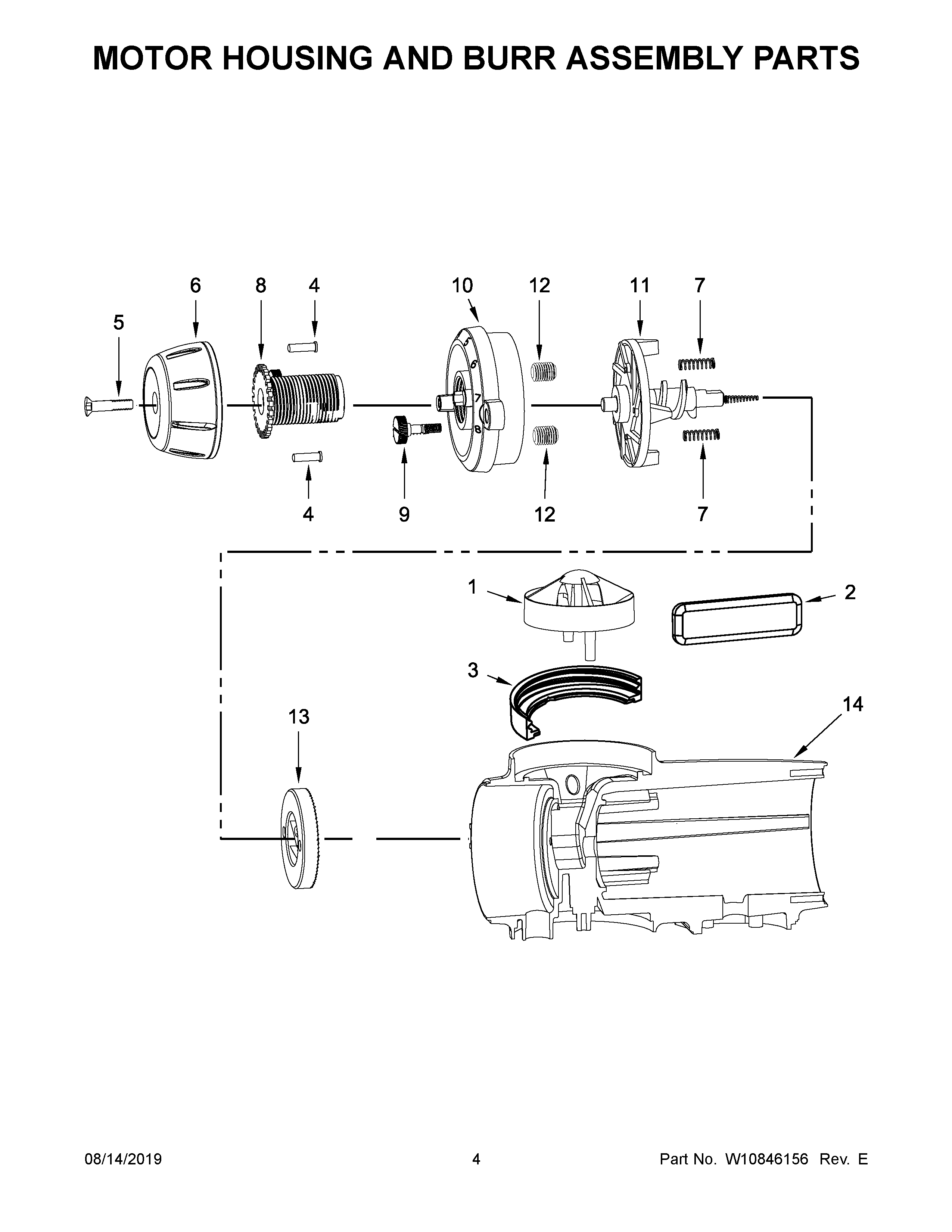

KCG0702CU0 03 – MOTOR HOUSING AND BURR ASSEMBLY PARTS

Products

PositionProduct
1GUARD, FINGER
2NAMEPLATE
3INSERT, THREAD LOCK
48212392 Whirlpool Pin
54176754 Whirlpool Bolt
6KNOB, SELECTOR
7SPRING, DETENT
8SCREW, ADJUSTMENT (INCLUDES BUSHING)
94176705 Whirlpool Screw
10BEZEL, GEARBOX
11AUGER ASSEMBLY
12SCREW, SOCKET
13W11109860 Whirlpool Burr Assembly
14BHOUSING, MOTOR (ONYX BLACK)
14HOUSING, MOTOR (CONTOUR SILVER)
14AHOUSING, MOTOR (EMPIRE RED)
