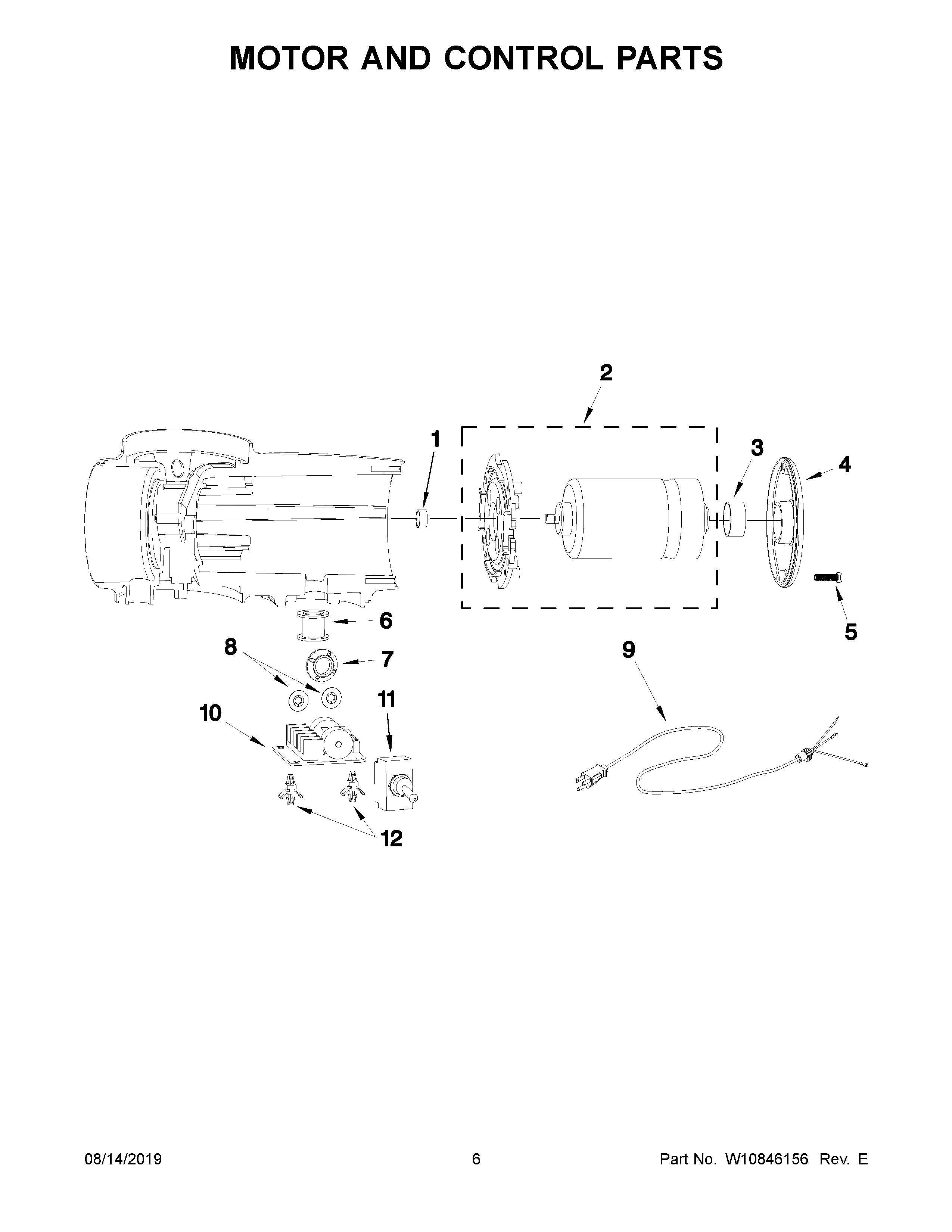

KCG0702OB0 04 – MOTOR AND CONTROL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NISCOOP, COFFEE
NIBRUSH, CLEANING
1BUSHING, COPPER
2W10845881 Whirlpool Motor Assembly
3SEAL, VIBRATION
4BCAP, MOTOR (ONYX BLACK)
4ACAP, MOTOR (EMPIRE RED)
4W10845885 Whirlpool Cap
5SCREW, MOTOR CAP
6TUBE, HOUSING
7NUT, SWITCH
84176713 Whirlpool Washer
9W11391593 Whirlpool Power Cord
10CONTROL BOARD
114176758 Whirlpool Switch
12SPACER
