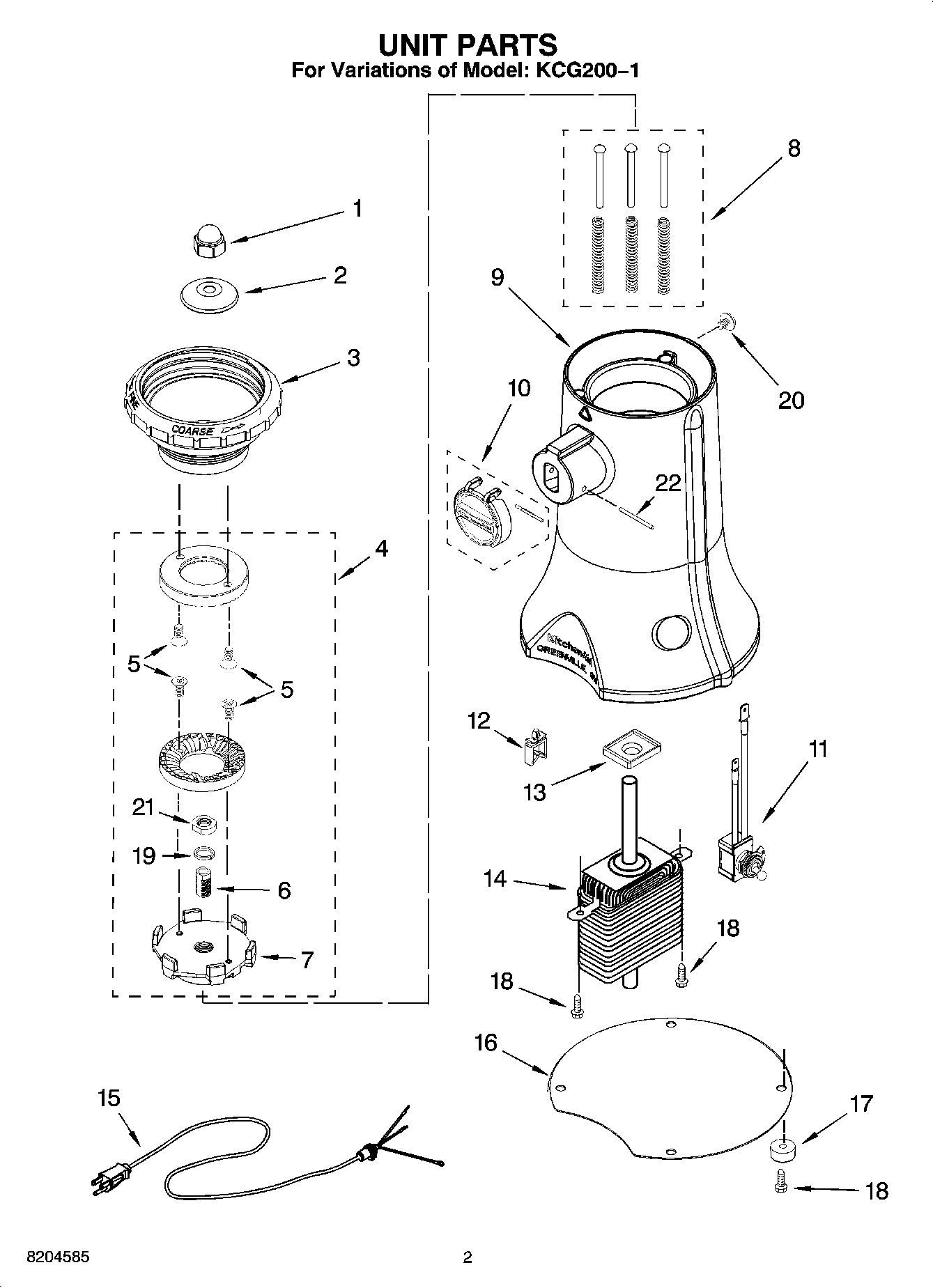

KCG200-1 01 – UNIT PARTS

Products

Position	Product
1	Nut, Acorn
2	Guard, Finger
3	Support, Jar
4	Assembly, Support & Burr
5	Screw
6	Bushing
7	Support, Lower Burr
8	Spring/Plunger Assembly
9	Housing, Motor (Cobalt Blue)
9	Housing, Motor (Onyx Black)
9	Housing, Motor (Metallic Chrome)
9	Housing, Motor (Tangerine)
9	Housing, Motor (Pink)
9	Housing, Motor (White)
9	Housing, Motor (Empire Red)
10	Door, Hub
11	Switch, Toggle Wire
12	Saddle, Locking Wire
13	Gasket, Motor
14	Motor
15	Cord, Power (White)
15	Cord, Power (Black)
16	Plate, Bottom
17	Foot, Rubber
18	WP489128 Whirlpool Refrigerator Screw
19	Lock Washer
20	Screw
21	Nut
22	Repair Parts List (8)
22	Use & Care Guide
22	Pin, Spring
22	FOLLOWING PARTS NOT ILLUSTRATED
22	LITERATURE PARTS
