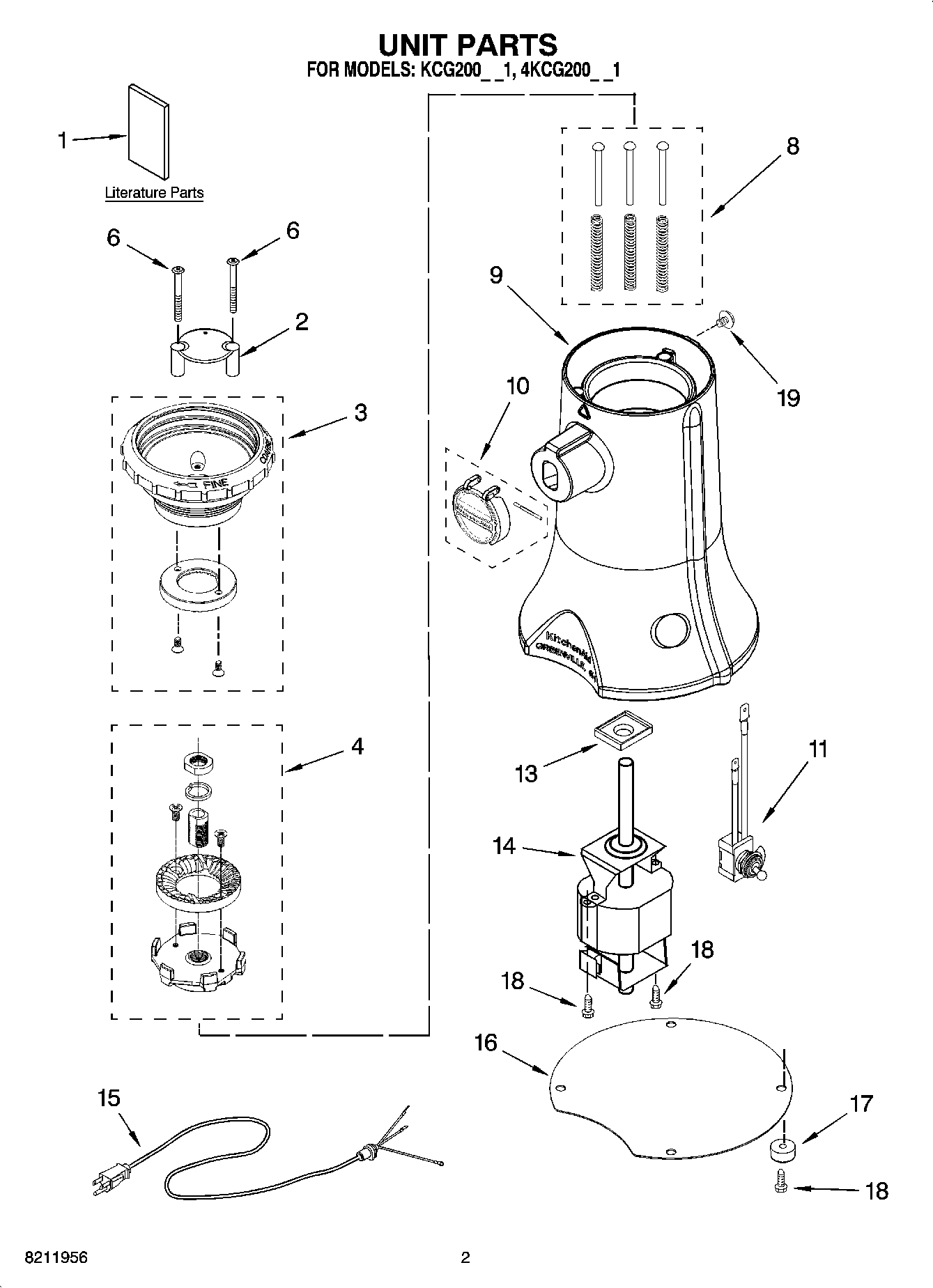

KCG200BU1 01 – UNIT PARTS

Products

PositionProduct
1Use & Care Guide
1Use & Care Guide
1Repair Parts List
2Guard, Finger
3Support, Jar Asm
4Assembly, Support & Burr
6Screw, Finger Grd
8Spring/Plunger Assembly
9Housing, Motor (Empire Red)
9Housing, Motor (White)
9Housing, Motor (Blue Willow)
9Housing, Motor (Gloss Cinnamon)
9Housing, Motor (Tangerine)
9Housing, Motor (Pink)
9Housing, Motor (Cobalt Blue)
9Housing, Motor (Metallic Chrome)
9Housing, Motor (Onyx Black)
10Door, Hub
11Switch, Toggle Wire
13Gasket, Motor
14Motor
15Cord, Power (Black)
15Cord, Power (White)
16Plate, Bottom
17Foot, Rubber
18WP489128 Whirlpool Refrigerator Screw
19Screw, Locking
