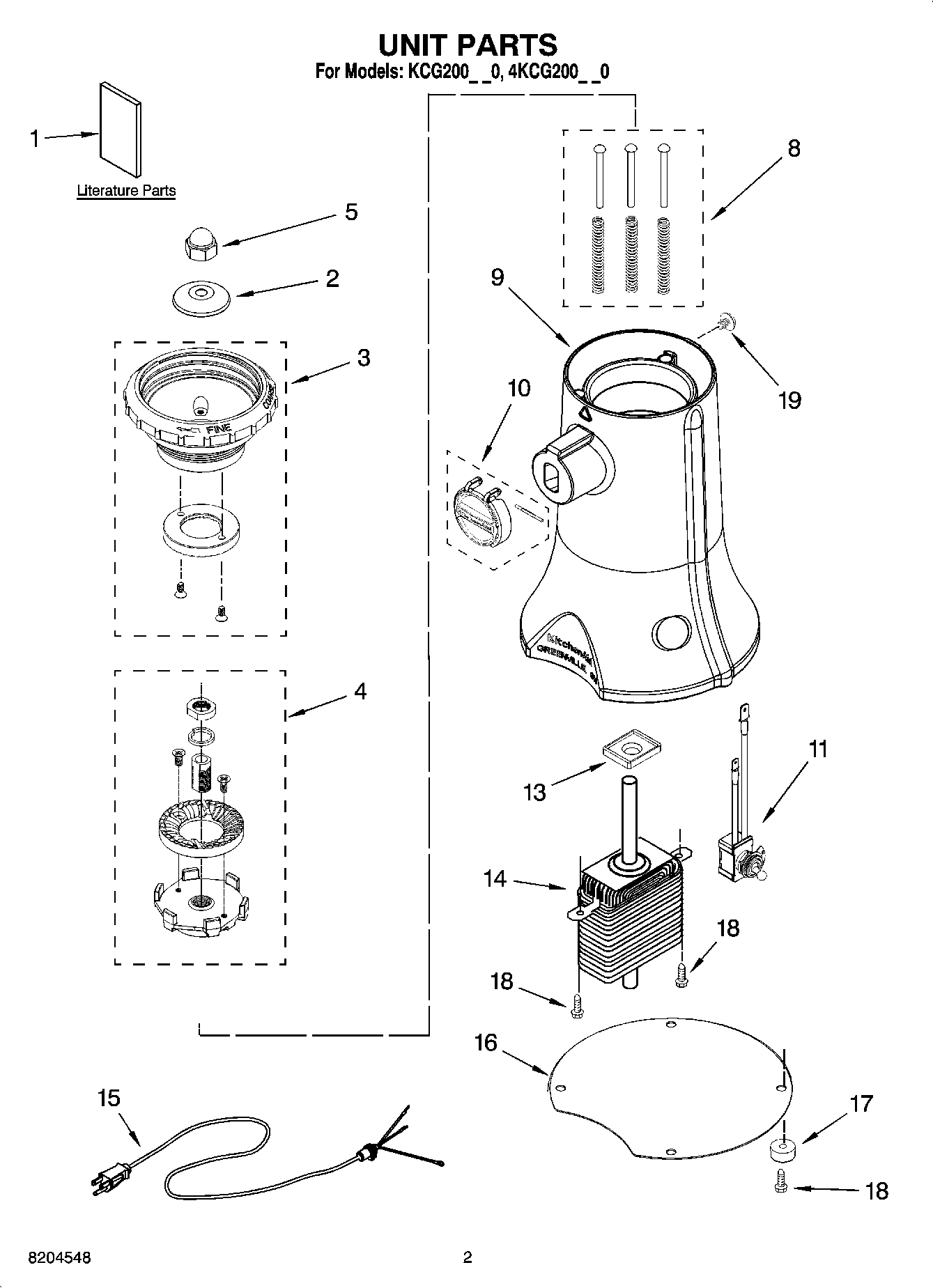

KCG200MC0 01 – UNIT PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care Guide
2Guard, Finger
3Support, Jar Asm
4Support, Lower Burr Assembly
5Nut, Acorn
8Spring/Plunger Assembly
9Housing, Motor (Tangerine)
9Housing, Motor (Pink)
9Housing, Motor (Metallic Chrome)
9Housing, Motor (Onyx Black)
9Housing, Motor (Empire Red)
9Housing, Motor (Cobalt Blue)
9Housing, Motor (White)
10Door, Hub
11Switch, Toggle Wire
13Gasket, Motor
14Motor
15Cord, Power (White)
15Cord, Power (Black)
16Plate, Bottom
17Foot, Rubber
18WP489128 Whirlpool Refrigerator Screw
19Screw
