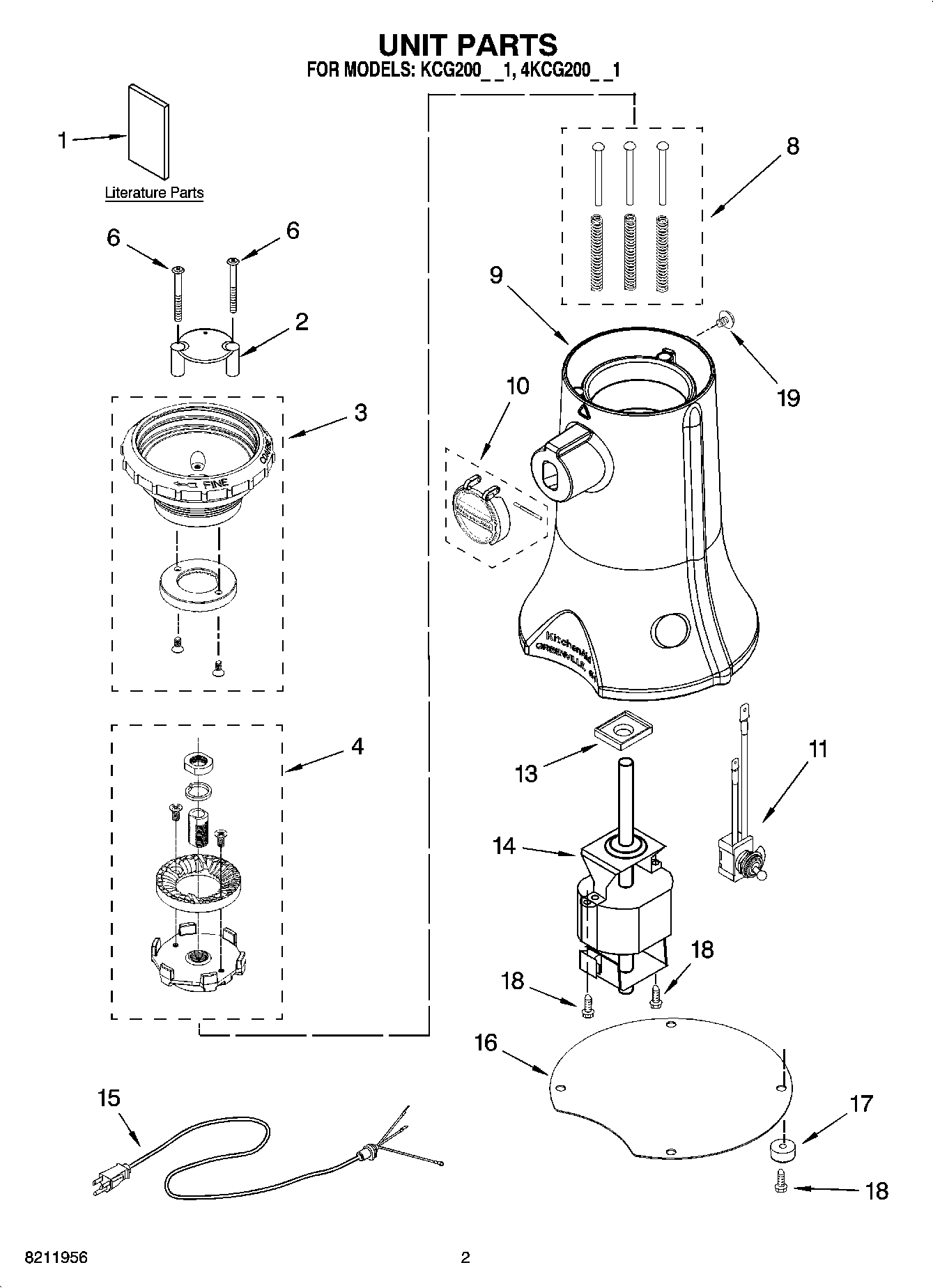

KCG200OB1 01 – UNIT PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care Guide
1Use & Care Guide
2Guard, Finger
3Support, Jar Asm
4Assembly, Support & Burr
6Screw, Finger Grd
8Spring/Plunger Assembly
9Housing, Motor (Blue Willow)
9Housing, Motor (Pink)
9Housing, Motor (Tangerine)
9Housing, Motor (Metallic Chrome)
9Housing, Motor (Onyx Black)
9Housing, Motor (Empire Red)
9Housing, Motor (Cobalt Blue)
9Housing, Motor (White)
9Housing, Motor (Gloss Cinnamon)
10Door, Hub
11Switch, Toggle Wire
13Gasket, Motor
14Motor
15Cord, Power (Black)
15Cord, Power (White)
16Plate, Bottom
17Foot, Rubber
18WP489128 Whirlpool Refrigerator Screw
19Screw, Locking
