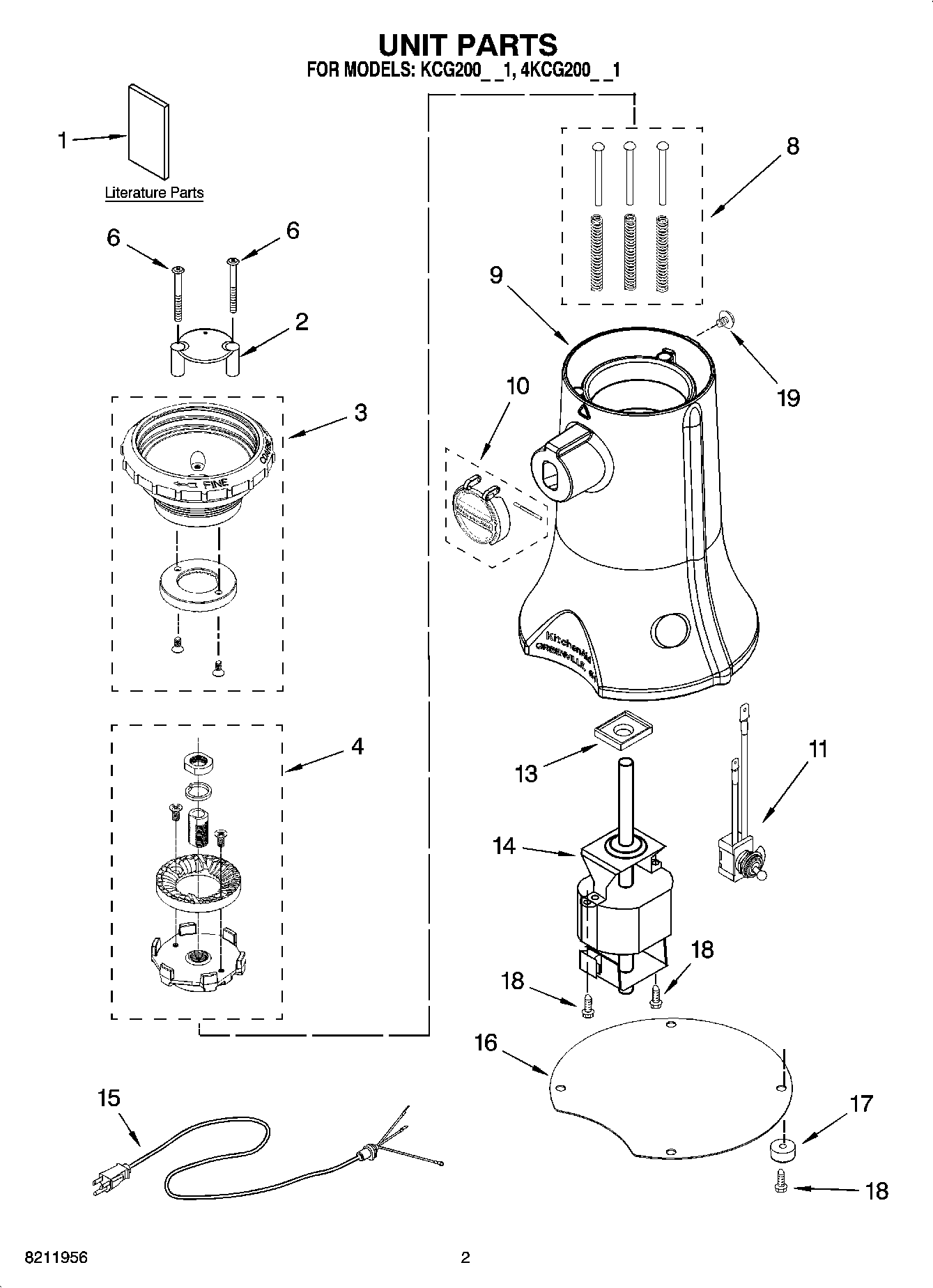

KCG200TG1 01 – UNIT PARTSadmin2025-04-26T12:28:00+00:00KCG200TG1 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care Guide |
| 1 | Use & Care Guide |
| 1 | Repair Parts List |
| 2 | Guard, Finger |
| 3 | Support, Jar Asm |
| 4 | Assembly, Support & Burr |
| 6 | Screw, Finger Grd |
| 8 | Spring/Plunger Assembly |
| 9 | Housing, Motor (Blue Willow) |
| 9 | Housing, Motor (Pink) |
| 9 | Housing, Motor (Tangerine) |
| 9 | Housing, Motor (Metallic Chrome) |
| 9 | Housing, Motor (Onyx Black) |
| 9 | Housing, Motor (Empire Red) |
| 9 | Housing, Motor (Cobalt Blue) |
| 9 | Housing, Motor (White) |
| 9 | Housing, Motor (Gloss Cinnamon) |
| 10 | Door, Hub |
| 11 | Switch, Toggle Wire |
| 13 | Gasket, Motor |
| 14 | Motor |
| 15 | Cord, Power (Black) |
| 15 | Cord, Power (White) |
| 16 | Plate, Bottom |
| 17 | Foot, Rubber |
| 18 | WP489128 Whirlpool Refrigerator Screw |
| 19 | Screw, Locking |
