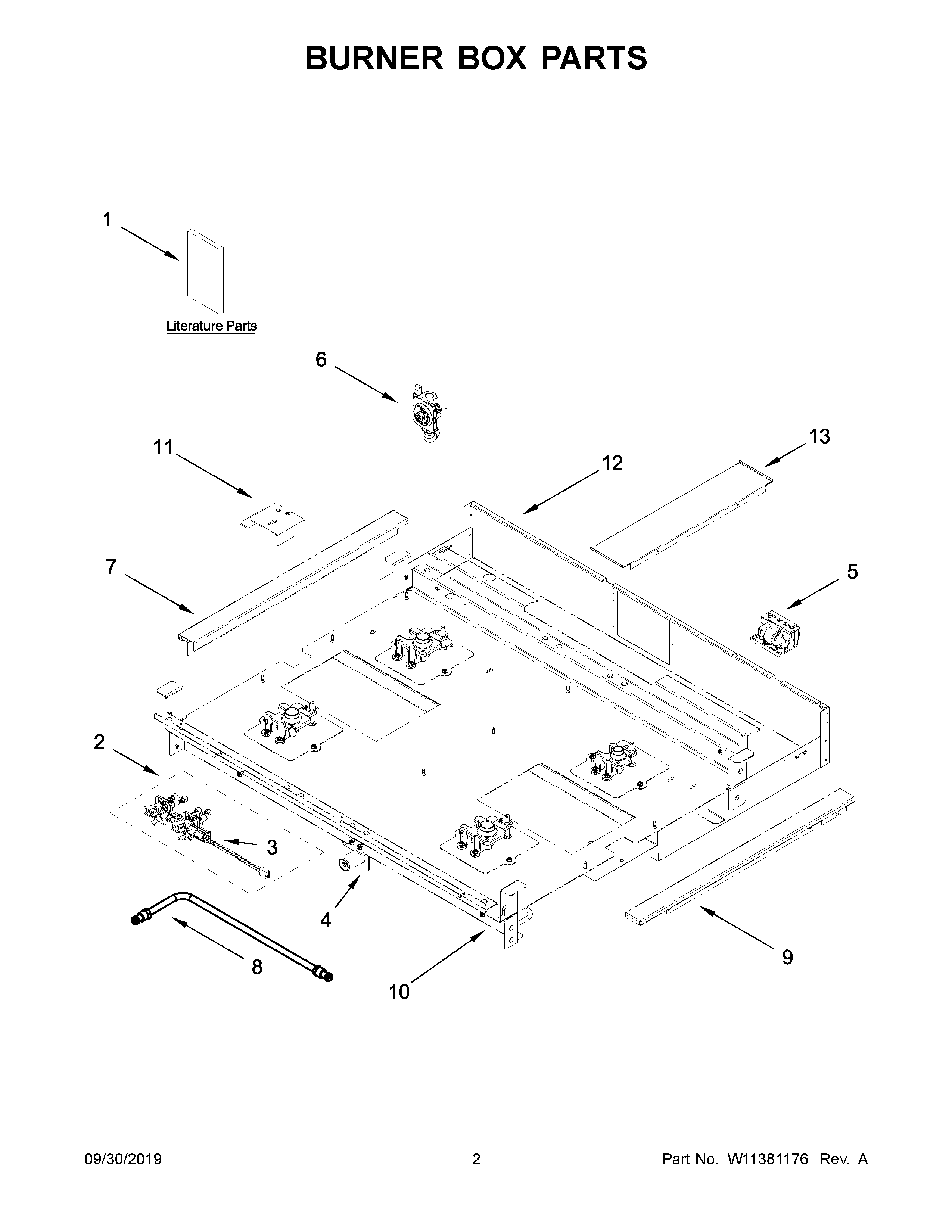

KCGC500JSS00 02 – BURNER BOX PARTS

KCGC500JSS00 02 – BURNER BOX PARTS

Written by

in

KCGC500JSS00 02 – BURNER BOX PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11502161 Whirlpool Conversion Kit
NIW11038934 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIW10624584 Whirlpool Power Cord
1GUIDE, USE & CARE
1CSHEET, TECH
1BDIAGRAM, WIRING (COOKTOP)
1AINSTRUCTIONS, INSTALLATION
2AW11378579 Whirlpool Manifold
2W11378578 Whirlpool Manifold
3W11344433 Whirlpool Wire Harness
4BRACKET, MANIFOLD
5W11319687 Whirlpool Spark Module
6W11106948 Whirlpool Pressure Regulator
7W11339740 Whirlpool Trim
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
9W11339741 Whirlpool Trim
11Bracket, Mounting Orifice
13FILLER, COOKTOP
