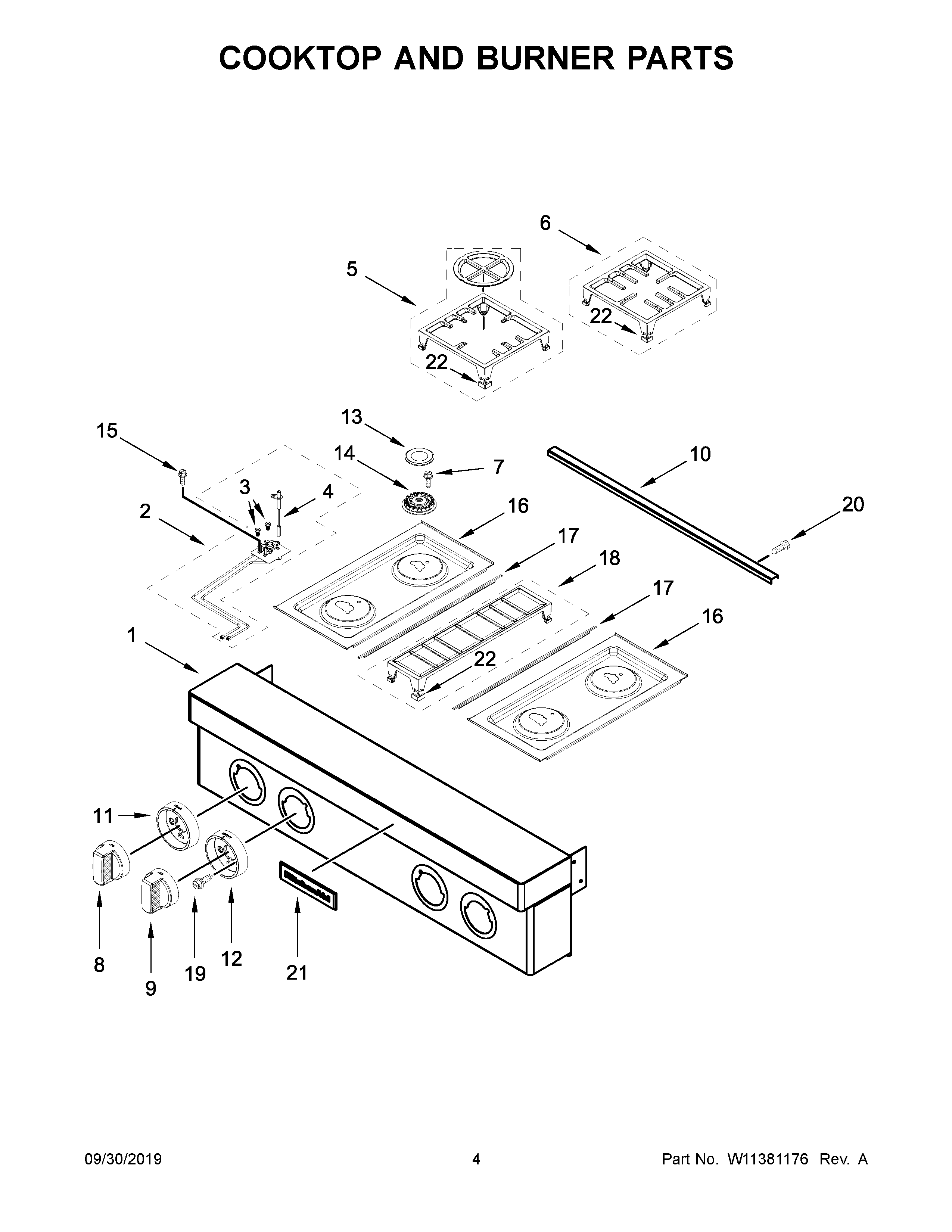

KCGC500JSS00 03 – COOKTOP AND BURNER PARTS

Products

Position	Product
1	PANEL, CONSOLE
2B	W11381273 Whirlpool Holder Orifice
2	W11337062 Whirlpool Orifice Holder
2A	W11378585 Whirlpool Range Orifice Holder
3A	W11672510 Whirlpool Spud Orifice
3C	W10892438 Whirlpool Orifice Spud
3B	W11661909 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
4A	W11628654 Whirlpool Surface Igniter
4	W11580024 Whirlpool Surface Igniter
5	W11380124 Whirlpool Burner Grate
6	W11380128 Whirlpool Burner Grate
7A	W11678580 Whirlpool Screw
7	W11643628 Whirlpool Screw
8	W11380561 Whirlpool Knob
9	W11380562 Whirlpool Knob Assembly
10	TRIM, ISLAND
11	W11380145 Whirlpool Knob Bezel
12	W11380146 Whirlpool Knob Bezel
13	W11380174 Whirlpool Burner Cap
14B	W11344746 Whirlpool Burner Head
14A	W11344742 Whirlpool Burner Head
14	W11344539 Whirlpool Burner Head
15	SCREW
16A	W11380180 Whirlpool Cooktop
16	W11344755 Whirlpool Cooktop
17	W10271524 Whirlpool Trim Top
18	GRATE-BRNR
19	W11674763 Whirlpool Screw
20	SCREW
21	W10839793 Whirlpool Refrigerator Nameplate
22	W11550692 Whirlpool Bumper
