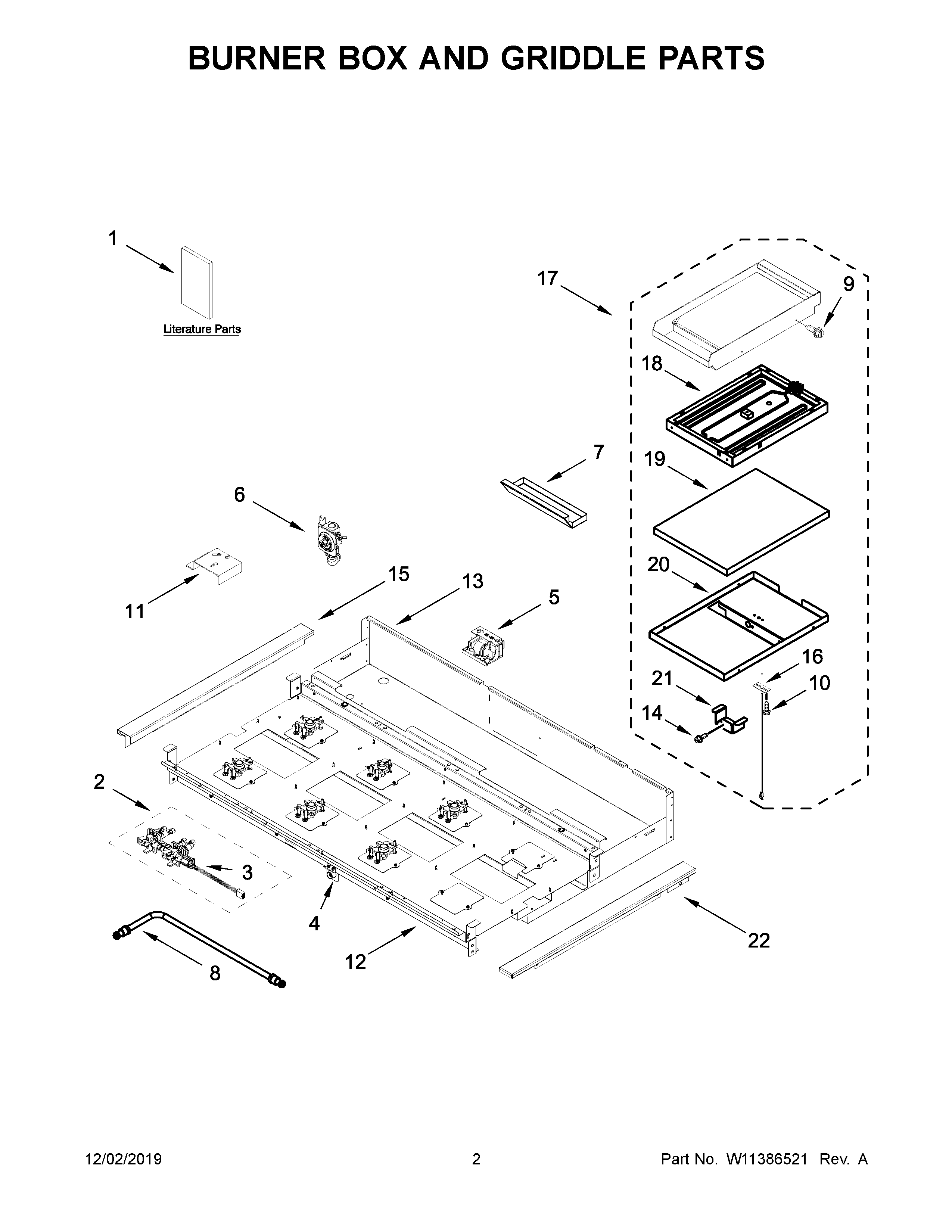

KCGC558JSS00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	W10624584 Whirlpool Power Cord
NI	W11317787 Whirlpool Wire Harness
NI	W11502161 Whirlpool Conversion Kit
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11317788 Whirlpool Wire Harness
NI	W11038934 Whirlpool Wire Harness
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1B	DIAGRAM, WIRING
1C	SHEET, TECH
2B	W11378578 Whirlpool Manifold
2	W11381267 Whirlpool Manifold Assembly
2A	W11381269 Whirlpool Manifold Assembly
3	W11344433 Whirlpool Wire Harness
4	BRACKET, MANIFOLD
5	W11319687 Whirlpool Spark Module
6	W11106948 Whirlpool Pressure Regulator
7	W10276497 Whirlpool Drip Tray
8B	TUBE, MANIFOLD SUPPLY (RIGHT)
8A	TUBE, MANIFOLD SUPPLY (CENTER)
8	TUBE, MANIFOLD SUPPLY (LEFT)
9	SCREW
10	W10491985 Whirlpool Screw
11	Bracket, Mounting Orifice
14	SCREW
15	W11337059 Whirlpool Trim Assembly
16	W11319618 Whirlpool Sensor
17	W11602621 Whirlpool Module
18	W11319602 Whirlpool Grille Element
19	INSULATION, GRIDDLE
20	TRAY, GRIDDLE INSULATION
21	BRACKET, GRIDDLE-RTD
22	W11337061 Whirlpool Trim
