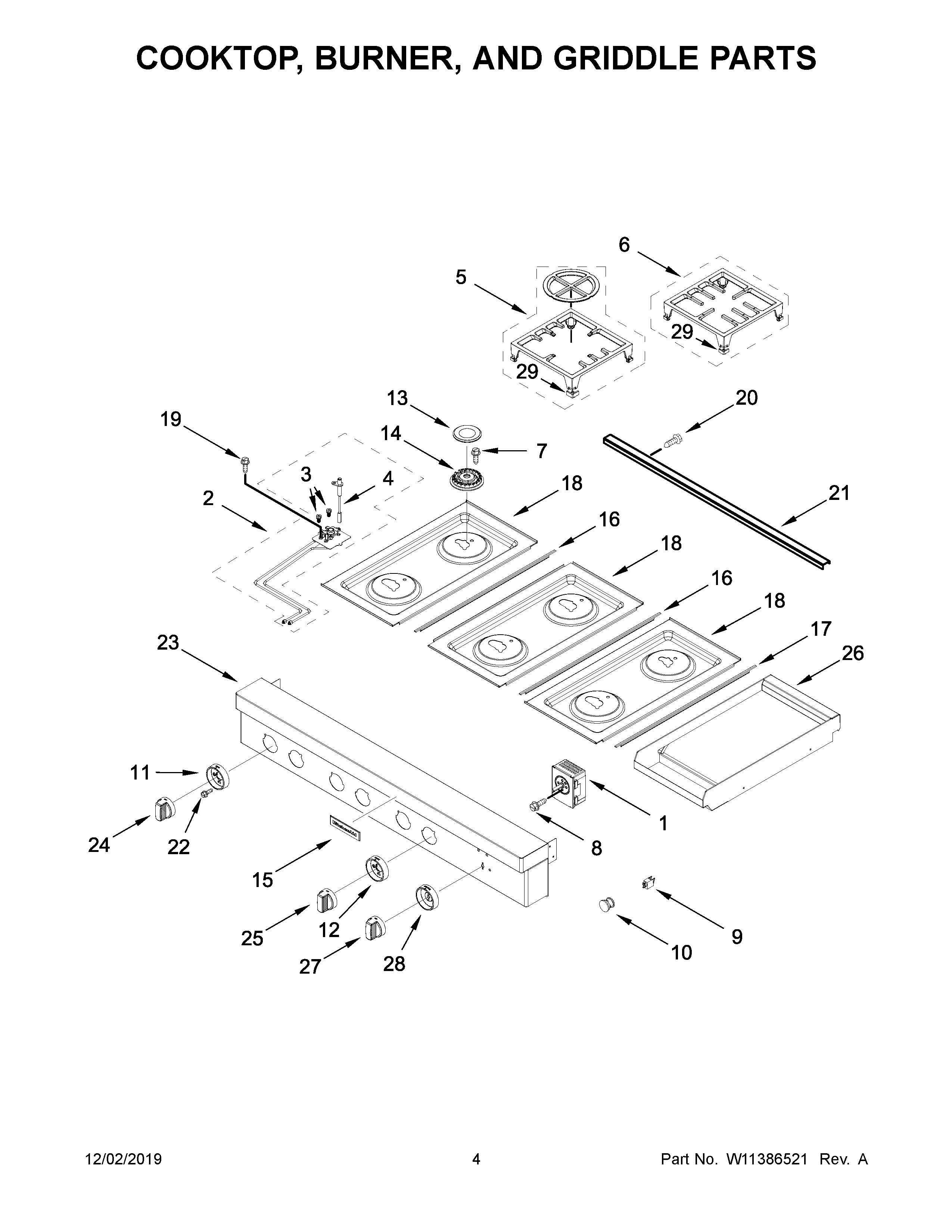

KCGC558JSS00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1W11318834 Whirlpool Infinite Heat Switch
2AW11378585 Whirlpool Range Orifice Holder
2W11337062 Whirlpool Orifice Holder
2BW11381271 Whirlpool Burner Orifice Holder
2CW11381273 Whirlpool Holder Orifice
3AW11672510 Whirlpool Spud Orifice
3BW10892438 Whirlpool Orifice Spud
3W11643164 Whirlpool Orifice Spud
4AW11628654 Whirlpool Surface Igniter
4W11580024 Whirlpool Surface Igniter
5W11380124 Whirlpool Burner Grate
6W11380128 Whirlpool Burner Grate
7AW11678580 Whirlpool Screw
7W11643628 Whirlpool Screw
8W10674068 Whirlpool Screw
9W10116114 Whirlpool Indicator Light
10W10294500 Whirlpool Light Lens
11W11380145 Whirlpool Knob Bezel
12W11380146 Whirlpool Knob Bezel
13W11344538 Whirlpool Surface Burner Cap
14W11344539 Whirlpool Burner Head
14AW11344742 Whirlpool Burner Head
14BW11344746 Whirlpool Burner Head
15W10839793 Whirlpool Refrigerator Nameplate
16W10271524 Whirlpool Trim Top
17W10291193 Whirlpool Trim Top
18W11344755 Whirlpool Cooktop
18AW11344757 Whirlpool Cooktop
18BW11392645 Whirlpool Cooktop
19SCREW
20SCREW
21WPL W11355761
22W11674763 Whirlpool Screw
23W11392646 Whirlpool Control Panel
24W11380561 Whirlpool Knob
25W11380562 Whirlpool Knob Assembly
26W11602621 Whirlpool Module
27W11392643 Whirlpool Knob
28W11388057 Whirlpool Knob Bezel
29W11550692 Whirlpool Bumper
