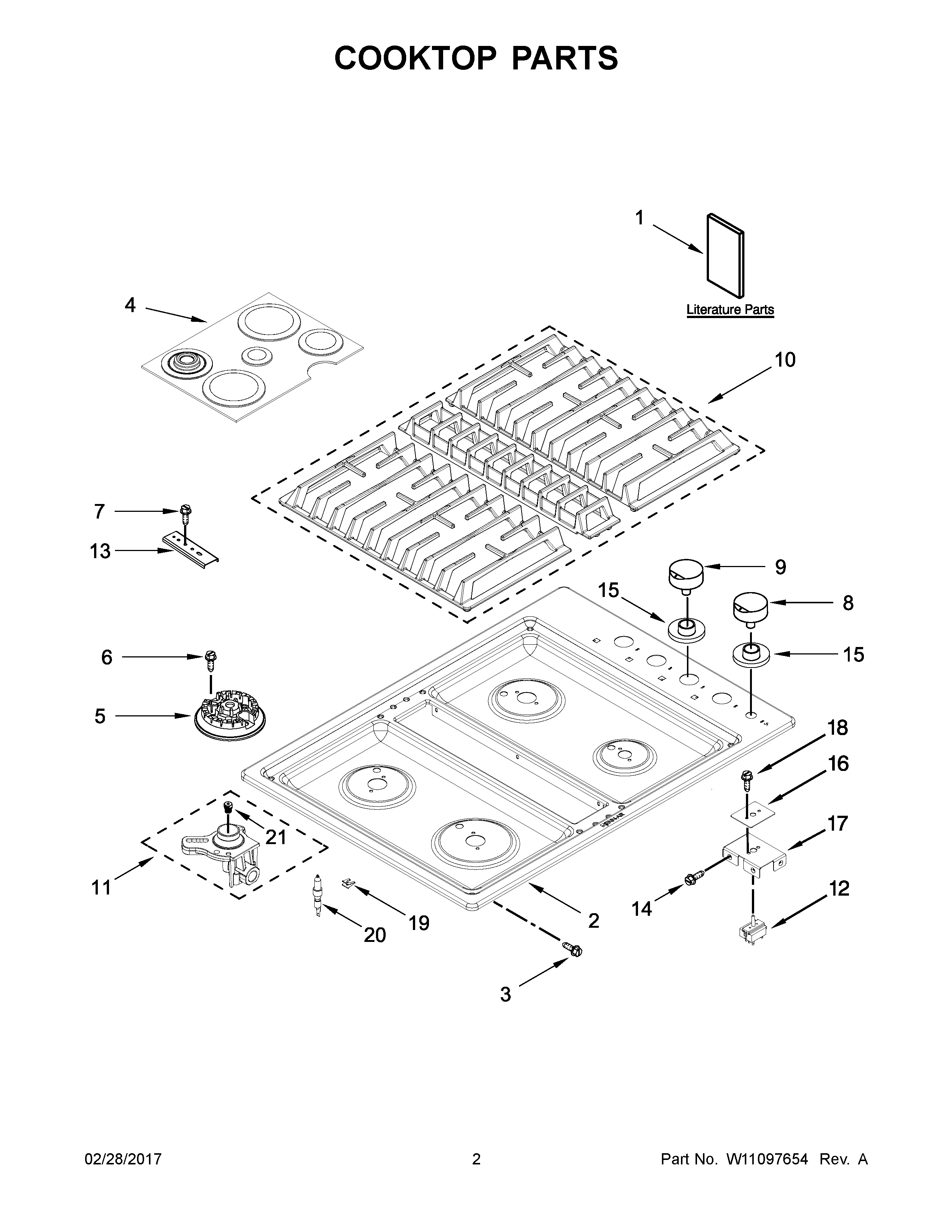

KCGD500GSS00 02 – COOKTOP PARTS

Products

Position	Product
NI	8287106 Whirlpool Clip Assembly
NI	W10835283 Whirlpool Wire Harness
NI	W10132200 Whirlpool Strain Relief
NI	W10834700 Whirlpool Wire Harness
NI	W11083837 Whirlpool Conversion Kit
NI	W11465762 Whirlpool Wire Harness
NI	W10909126 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10831977 Whirlpool Power Cord
1C	INSTRUCTIONS, LP CONVERSION
1	GUIDE, USE & CARE
1A	INSTRUCTIONS, INSTALLATION
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1B	DIAGRAM, WIRING
2	W11051498 Whirlpool Cooktop
4	W11579391 Whirlpool Burner Cap
5A	W11084059 Whirlpool Burner Head
5B	W11084062 Whirlpool Burner Head
5	W11084058 Whirlpool Burner Head
6	SCREW
7	WP3400093 Whirlpool Screw
8	W11084044 Whirlpool Knob
9	W11084159 Whirlpool Knob
10	W11369700 Whirlpool Grate Kit
11C	W10826753 Whirlpool Orifice Holder
11	W10826752 Whirlpool Orifice Holder
11B	W10826754 Whirlpool Orifice Holder
11A	W10826751 Whirlpool Orifice Holder
12	W11676792 Whirlpool Oven Switch
13	8186533 Whirlpool Hardware
14	SCREW
15	W11240529 Whirlpool Knob Bezel
16	GASKET, SWITCH
17	W10868745 Whirlpool Mounting Bracket Assembly
18	WPL 7101P30960
19	W11684564 Whirlpool Clip Assembly
20A	W10862326 Whirlpool Surface Igniter
20C	W10862324 Whirlpool Surface Igniter
20B	W11684565 Whirlpool Surface Igniter
20	W11690138 Whirlpool Surface Igniter
21A	W11677633 Whirlpool Spud Orifice
21B	W10907868 Whirlpool Spud Orifice
21C	W10907866 Whirlpool Orifice Spud
21	W10907865 Whirlpool Orifice Spud
