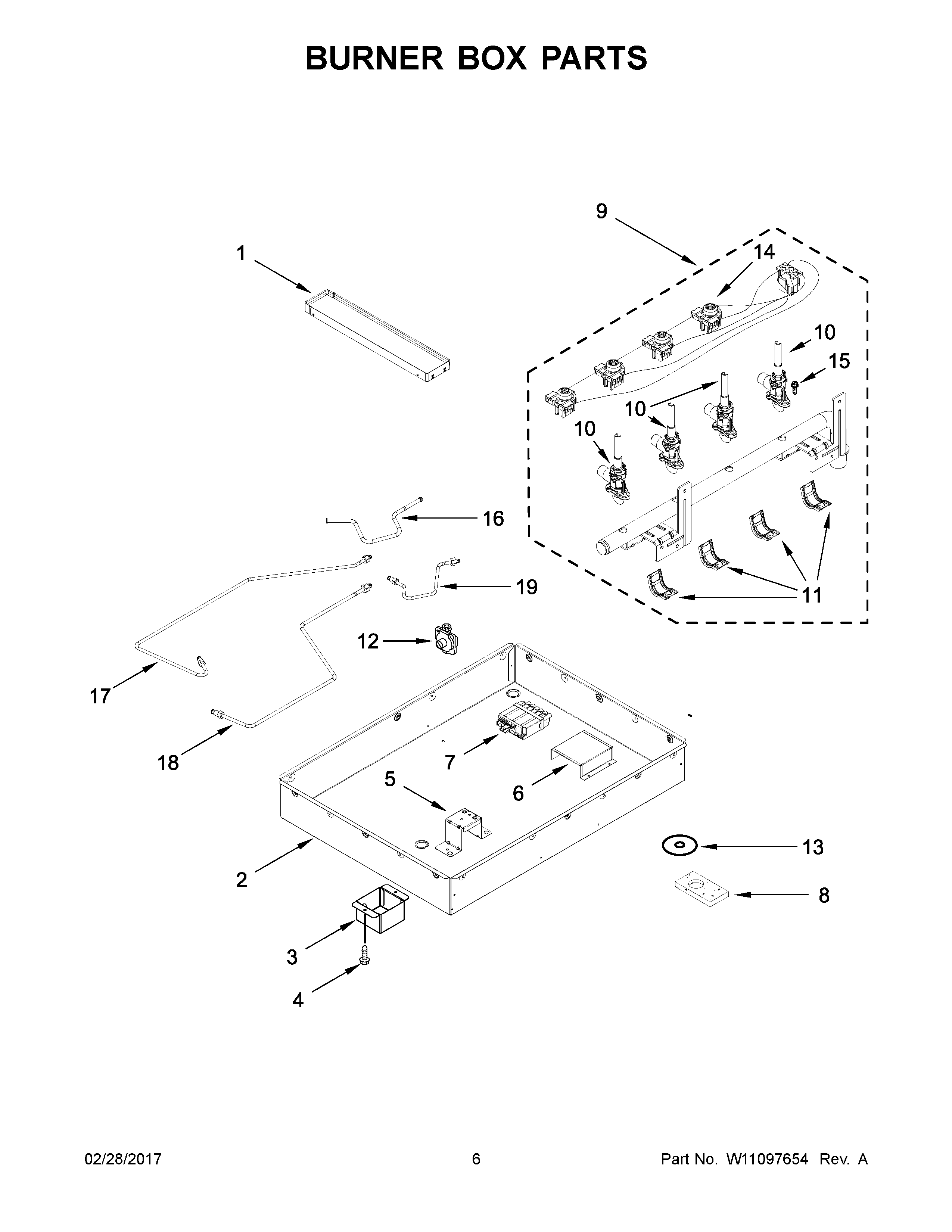

KCGD500GSS00 04 – BURNER BOX PARTS

Products

Position	Product
1	W10235990 Whirlpool Drip Tray
2	CABINET (NOT A SERVICEABLE PART)
3	W10258697 Whirlpool Wire Cover
4	SCREW
5	BRACKET, HAT
6	W10894861 Whirlpool Heat Shield
7	WPW10475147 Whirlpool Spark Module
8	SEAL, MANIFOLD
9	W11715952 Whirlpool Manifold Assembly
10	W10844343 Whirlpool Burner Valve
10A	W10907216 Whirlpool Burner Valve
10B	W10844342 Whirlpool Burner Valve
11	W10949105 Whirlpool Mounting Bracket
12	W11087445 Whirlpool Pressure Regulator
13	W10140571 Whirlpool Seal Switch
14	W11661907 Whirlpool Wire Harness
15	W10295997 Whirlpool Screw
16	W11051229 Whirlpool Gas Tubing Assembly
17	W11051231 Whirlpool Gas Tubing
18	W11051232 Whirlpool Gas Tubing
19	ASSEMBLY, TUBE (RIGHT REAR)
