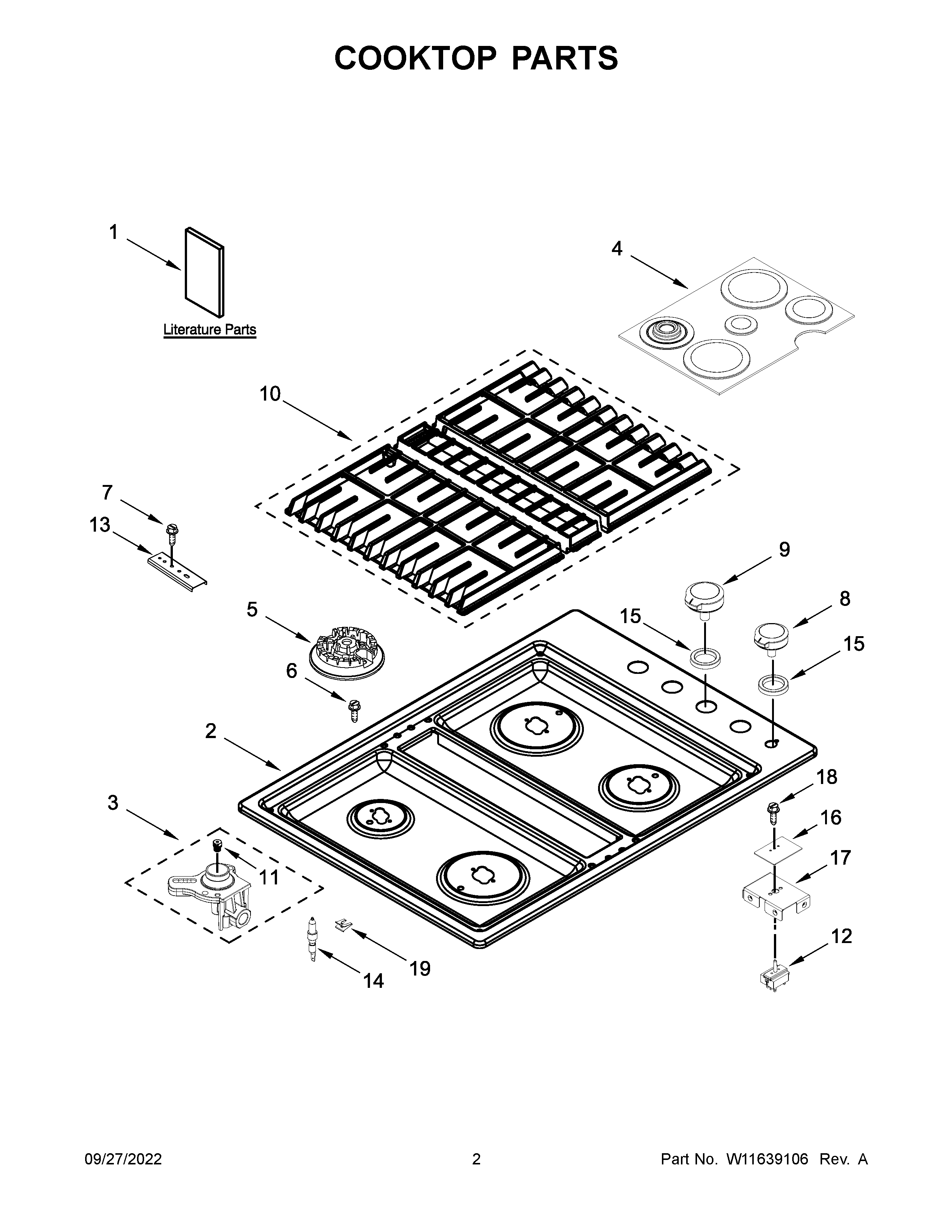

KCGD500GSS05 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW
NI	W10831977 Whirlpool Power Cord
NI	W11190478 Whirlpool Wire Harness
NI	W11465762 Whirlpool Wire Harness
NI	HARNS-WIRE
NI	8287106 Whirlpool Clip Assembly
NI	W11083837 Whirlpool Conversion Kit
NI	W10909126 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10132200 Whirlpool Strain Relief
1B	SHEET, TECH
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11051498 Whirlpool Cooktop
3B	W10826754 Whirlpool Orifice Holder
3A	W10826751 Whirlpool Orifice Holder
3C	W10826753 Whirlpool Orifice Holder
3	W10826752 Whirlpool Orifice Holder
4	W11579391 Whirlpool Burner Cap
5A	W11084059 Whirlpool Burner Head
5B	W11084062 Whirlpool Burner Head
5	W11084058 Whirlpool Burner Head
6	SCREW
7	WP3400093 Whirlpool Screw
8	W11084044 Whirlpool Knob
9	W11620703 Whirlpool Knob Assembly
10	W11369700 Whirlpool Grate Kit
11A	W11677633 Whirlpool Spud Orifice
11B	W10907868 Whirlpool Spud Orifice
11	W10907865 Whirlpool Orifice Spud
11C	W10907866 Whirlpool Orifice Spud
12	W11676792 Whirlpool Oven Switch
13	8186533 Whirlpool Hardware
14	W11690138 Whirlpool Surface Igniter
14A	W10862326 Whirlpool Surface Igniter
14B	W11684565 Whirlpool Surface Igniter
14C	W10862324 Whirlpool Surface Igniter
15	W11240529 Whirlpool Knob Bezel
16	SEAL, DOWNDRAFT PAD
17	W10868745 Whirlpool Mounting Bracket Assembly
18	WPL 7101P30960
19	W11684564 Whirlpool Clip Assembly
