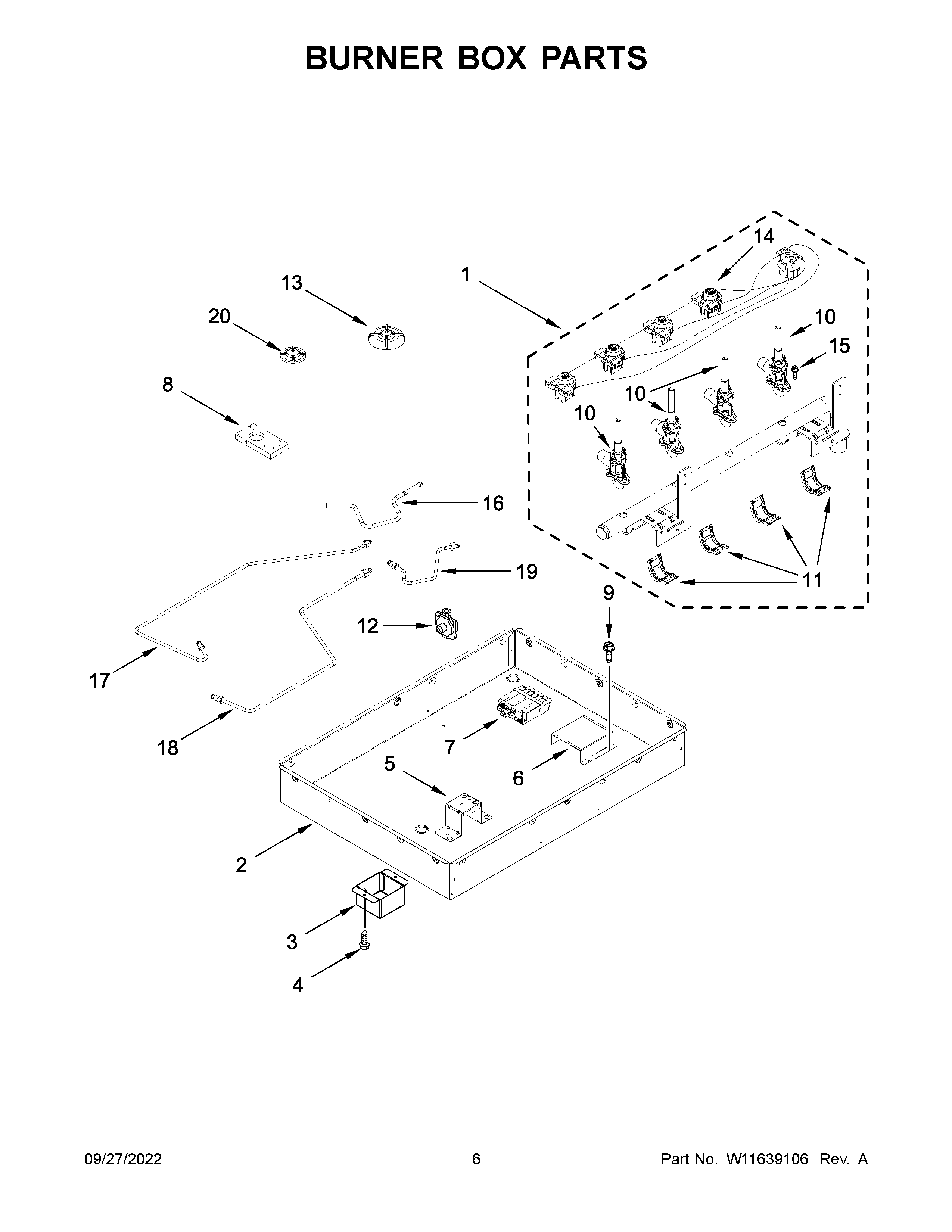

KCGD500GSS05 04 – BURNER BOX PARTS

Products

Position	Product
1	W11715952 Whirlpool Manifold Assembly
2	CABINET (NOT A SERVICEABLE PART)
3	W10258697 Whirlpool Wire Cover
4	SCREW
5	BRACKET, HAT
6	W10894861 Whirlpool Heat Shield
7	WPW10475147 Whirlpool Spark Module
8	SEAL, MANIFOLD
9	SCREW (4)
10	W11511840 Whirlpool Burner Valve
10B	W11511839 Whirlpool Burner Valve
10A	VALVE (LEFT REAR)
11	W10949105 Whirlpool Mounting Bracket
12	W11087445 Whirlpool Pressure Regulator
13	W11507167 Whirlpool Switch Seal
14	W11537635 Whirlpool Wire Harness
15	W11577790 Whirlpool Screw Assembly
16	W11051229 Whirlpool Gas Tubing Assembly
17	W11051231 Whirlpool Gas Tubing
18	W11051232 Whirlpool Gas Tubing
19	ASSEMBLY, TUBE (RIGHT REAR)
20	SEAL, DOWNDRAFT SHAFT
