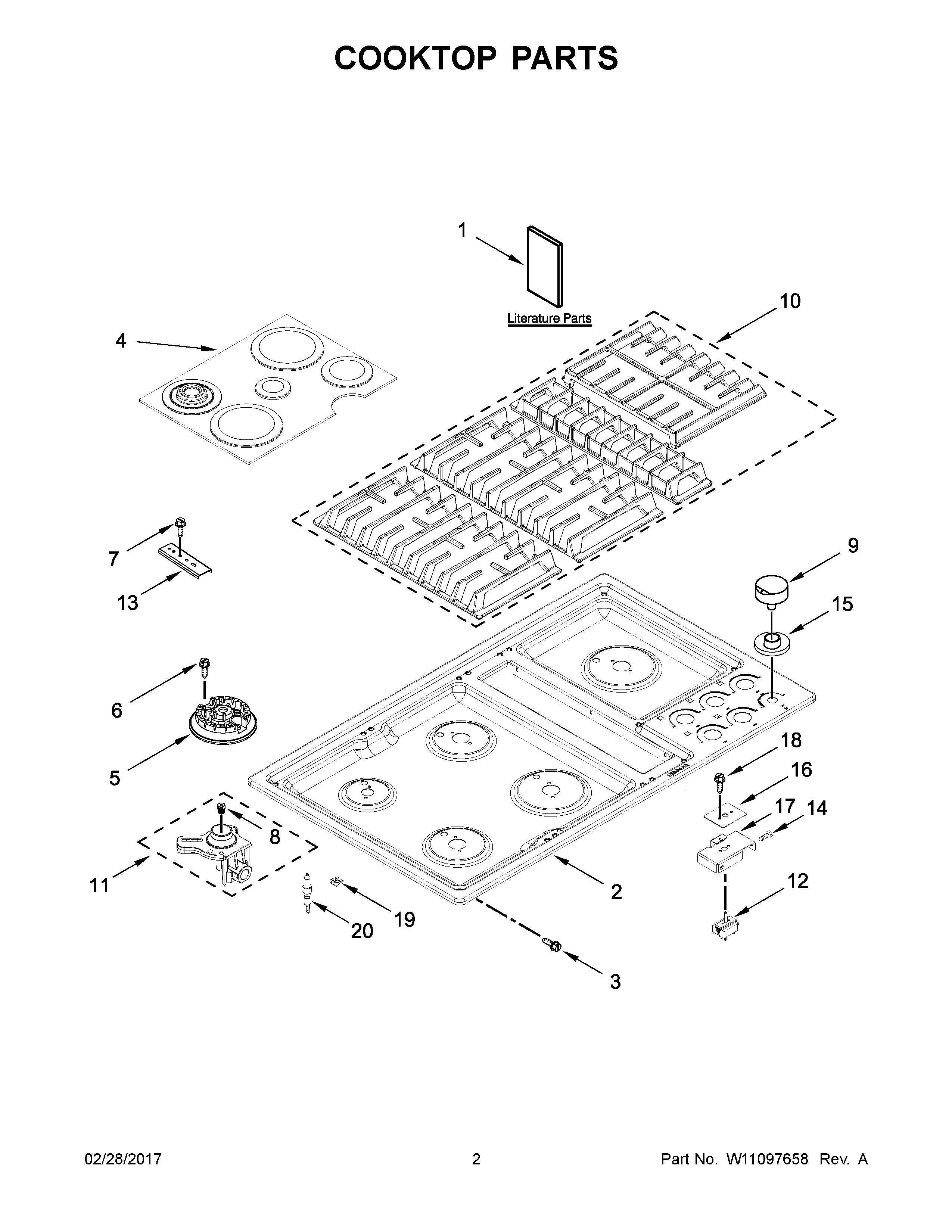

KCGD506GSS00 02 – COOKTOP PARTS

Products

Position	Product
NI	W11465762 Whirlpool Wire Harness
NI	W10834701 Whirlpool Wire Harness
NI	W10132200 Whirlpool Strain Relief
NI	W10835283 Whirlpool Wire Harness
NI	W11083838 Whirlpool Conversion Kit
NI	W10909126 Whirlpool Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10831977 Whirlpool Power Cord
NI	8287106 Whirlpool Clip Assembly
1C	INSTRUCTIONS, LP CONVERSION
1A	INSTRUCTIONS, INSTALLATION
1B	DIAGRAM, WIRING
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1	GUIDE, USE & CARE
2	W11051501 Whirlpool Cooktop
4	W11379294 Whirlpool Surface Burner Cap
5A	W11084059 Whirlpool Burner Head
5C	W11084063 Whirlpool Burner Head
5	W11084062 Whirlpool Burner Head
5B	W11084058 Whirlpool Burner Head
6	SCREW
7	WP3400093 Whirlpool Screw
8C	W10907867 Whirlpool Orifice Spud
8B	W10907866 Whirlpool Orifice Spud
8	W10907868 Whirlpool Spud Orifice
8A	W11677633 Whirlpool Spud Orifice
8D	W10907865 Whirlpool Orifice Spud
9	W11084159 Whirlpool Knob
10	W11369704 Whirlpool Grate Kit
11C	W10827697 Whirlpool Holder Orifice
11B	W10826753 Whirlpool Orifice Holder
11	W10826754 Whirlpool Orifice Holder
11A	W10826751 Whirlpool Orifice Holder
11D	W10826752 Whirlpool Orifice Holder
12	W11676792 Whirlpool Oven Switch
13	8186533 Whirlpool Hardware
14	SCREW
15	W11240529 Whirlpool Knob Bezel
16	GASKET, SWITCH
17	W10814795 Whirlpool Mounting Bracket
18	WPL 7101P30960
19	W11684564 Whirlpool Clip Assembly
20D	W10876262 Whirlpool Surface Igniter
20C	W10876261 Whirlpool Surface Igniter
20A	W10905489 Whirlpool Surface Igniter
20B	W11688146 Whirlpool Surface Igniter
20	W11690659 Whirlpool Range Surface Igniter
