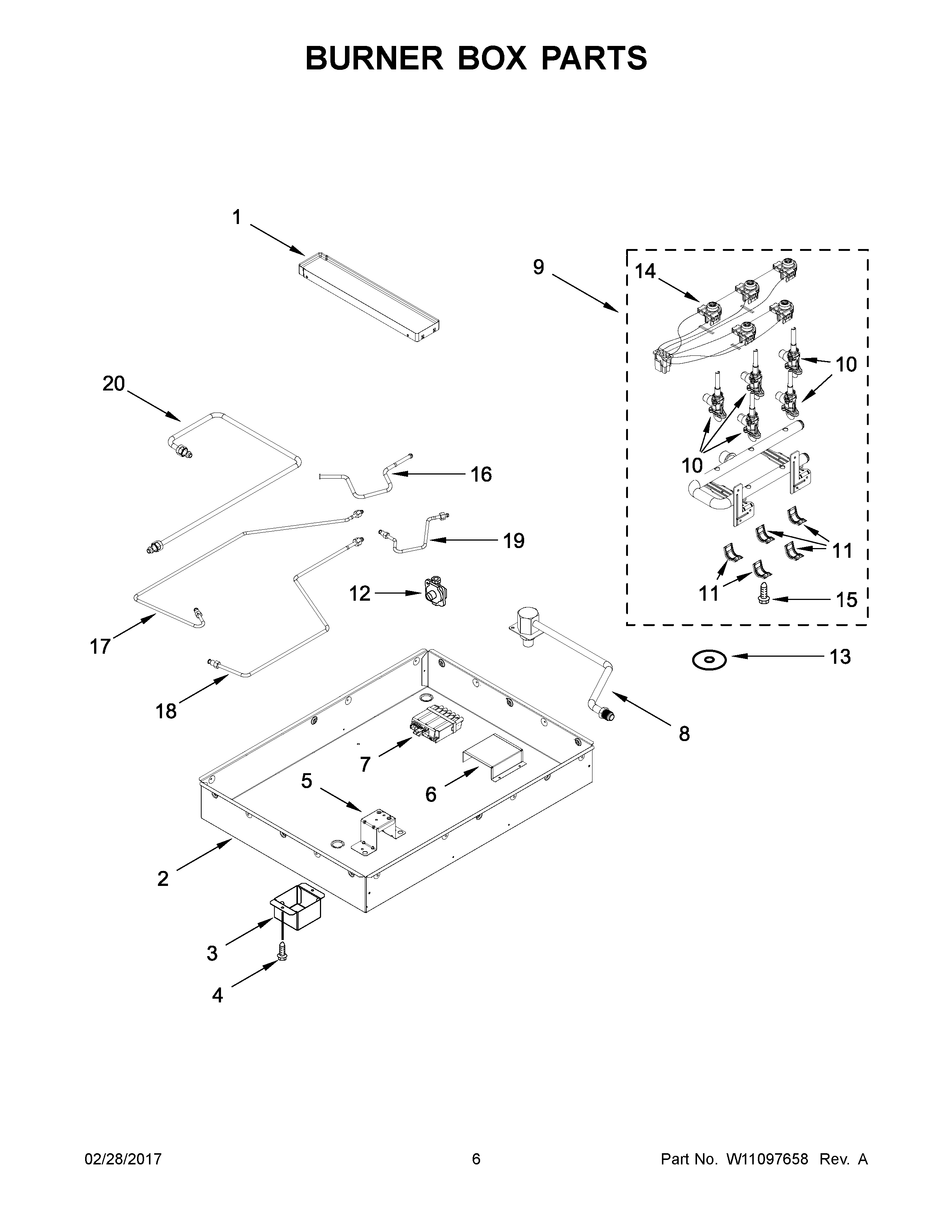

KCGD506GSS00 04 – BURNER BOX PARTS

Products

Position	Product
1	W10235990 Whirlpool Drip Tray
2	CABINET (NOT A SERVICEABLE PART)
3	W10258697 Whirlpool Wire Cover
4	SCREW
5	BRACKET, HAT
6	W10894861 Whirlpool Heat Shield
7	WPW10475150 Whirlpool Spark Module
8	W10361756 Whirlpool Gas Tubing
9	ASSEMBLY, MANIFOLD
10B	W10844471 Whirlpool Burner Valve
10A	W10844473 Whirlpool Burner Valve
10	W11727987 Whirlpool Burner Valve
11	W10949105 Whirlpool Mounting Bracket
12	W11087445 Whirlpool Pressure Regulator
13	W10140571 Whirlpool Seal Switch
14	W11679666 Whirlpool Wire Harness
15	W10295997 Whirlpool Screw
16	ASSEMBLY, TUBE (LEFT FRONT)
17	ASSEMBLY, TUBE (LEFT REAR)
18	ASSEMBLY, TUBE (CENTER FRONT)
19	ASSEMBLY, TUBE (CENTER REAR)
20	W11083765 Whirlpool Gas Tubing
