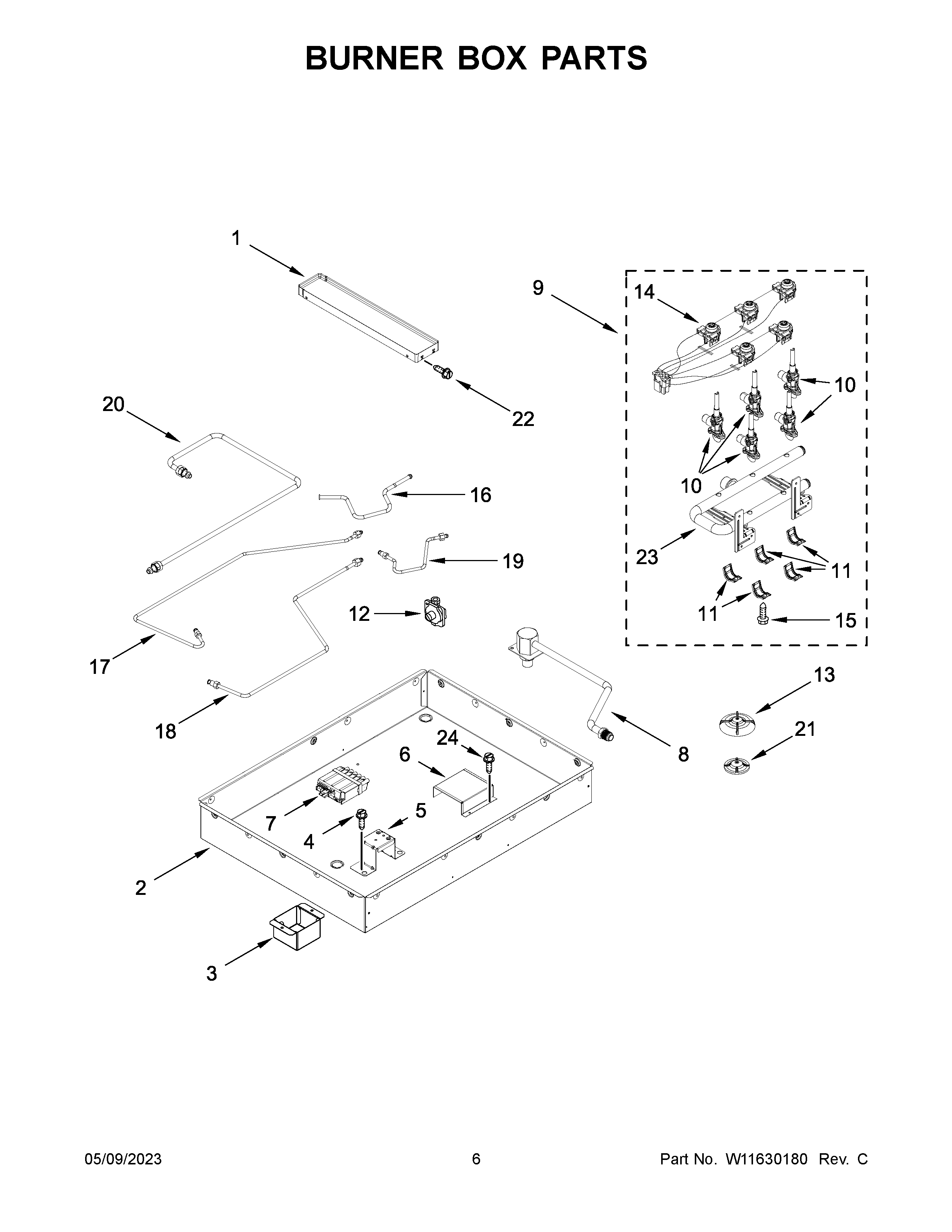

KCGD506GSS05 04 – BURNER BOX PARTS

Products

Position	Product
1	W10235990 Whirlpool Drip Tray
3	W10258697 Whirlpool Wire Cover
4	SCREW
5	BRACKET, HAT
6	W10894861 Whirlpool Heat Shield
7	WPW10475150 Whirlpool Spark Module
8	W10361756 Whirlpool Gas Tubing
9	MANIFOLD ASSEMBLY
10A	VALVE-BRNR
10	W11511837 Whirlpool Burner Valve
10B	VALVE-BRNR
11	W10949105 Whirlpool Mounting Bracket
12	W11087445 Whirlpool Pressure Regulator
13	W11507167 Whirlpool Switch Seal
14	HARNS-WIRE
15	W11577790 Whirlpool Screw Assembly
16	ASSEMBLY, TUBE (LEFT FRONT)
17	ASSEMBLY, TUBE (LEFT REAR)
18	ASSEMBLY, TUBE (CENTER FRONT)
19	ASSEMBLY, TUBE (CENTER REAR)
20	W11083765 Whirlpool Gas Tubing
21	SEAL, DOWNDRAFT SHAFT
22	WPY706189 Whirlpool Stove Screw
23	CABINET (NOT A SERVICEABLE PART)
24	SCREW (4)
