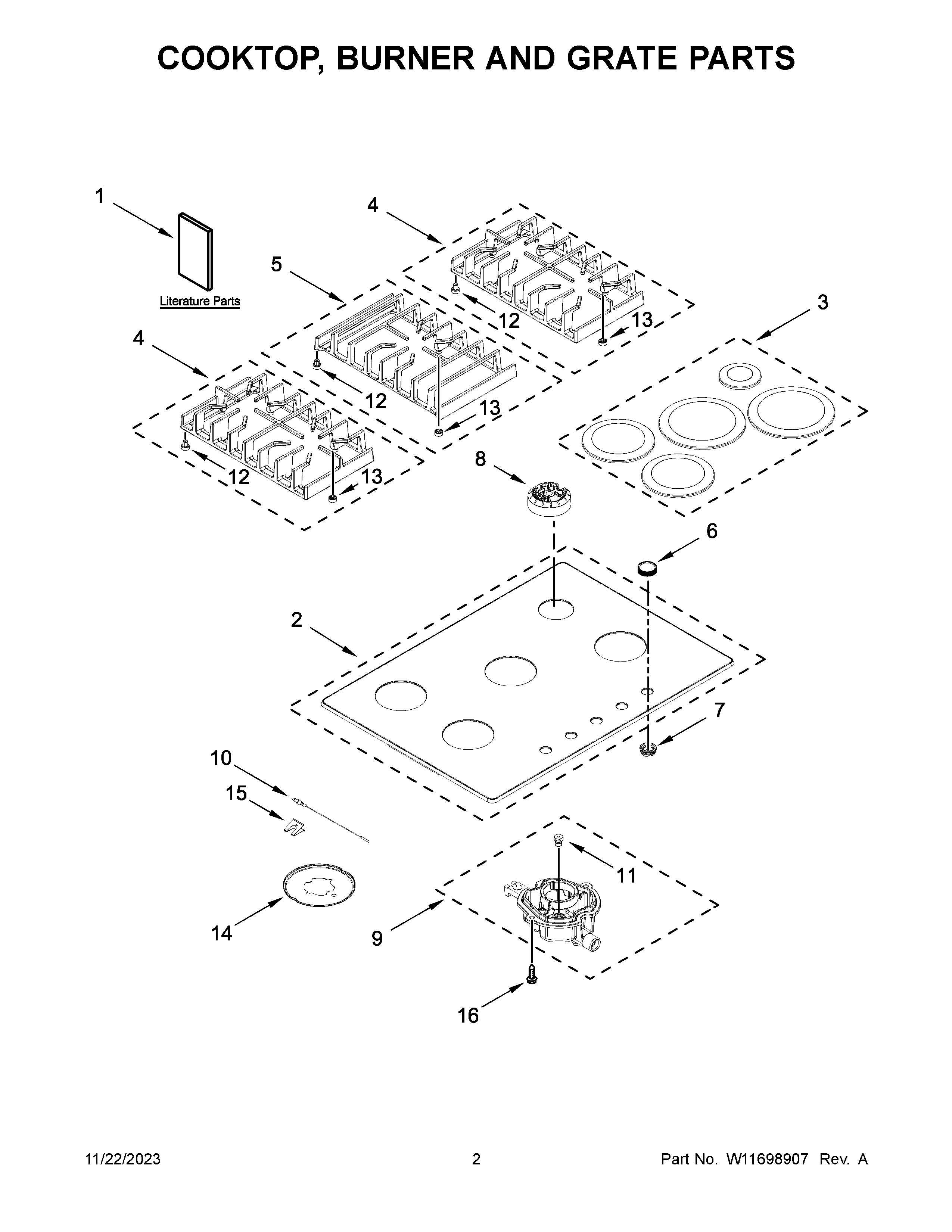

KCGG530PBL00 02 – COOKTOP, BURNER AND GRATE PARTSadmin2025-04-26T12:28:03+00:00KCGG530PBL00 02 – COOKTOP, BURNER AND GRATE PARTS
Products
| Position | Product |
|---|
| NI | WP3400015 Whirlpool Screw |
| NI | SPUD-ORFCE |
| NI | HARNESS (SWITCH), MAIN |
| NI | W11637584 Whirlpool Wire Harness |
| NI | 16515 Whirlpool Clip |
| NI | SCREW |
| NI | BRACKET, MOUNTING |
| NI | W10392003 Whirlpool Power Cord |
| NI | FOLLOWING PARTS NOT ILLUSTRATED |
| NI | W10132200 Whirlpool Strain Relief |
| NI | WP8286642 Whirlpool Tape |
| 1A | QUICK START GUIDE |
| 1 | OWNER'S MANUAL |
| 2 | GLASS COOKTOP ASSEMBLY (BLACK) |
| 3 | BURNER CAP KIT (BLACK (INCLUDES FIVE CAPS)) |
| 4 | GRATE, SIDE (INCLUDES 1 GRATE) |
| 5 | GRATE, CENTER |
| 6 | KNOBS, COOKTOP (STAINLESS) |
| 7 | GROMMET |
| 8 | W11531098 Whirlpool Burner Head |
| 8B | FLAME SPREADER (RIGHT REAR) |
| 8A | W11531096 Whirlpool Burner Head |
| 9A | HOLDER, ORIFICE (18K) (CENTER) |
| 9C | HOLDER, ORIFICE (5K) (RIGHT REAR) |
| 9B | HOLDER, ORIFICE (15K) (RIGHT FRONT) |
| 9 | HOLDER, ORIFICE (9.1K) (LEFT FRONT AND LEFT REAR) |
| 10 | W11702865 Whirlpool Surface Igniter |
| 10A | WIRING, ELECTRODE (636MM) |
| 11B | ORIFICE (RIGHT FRONT) |
| 11C | ORIFICE (RIGHT REAR) |
| 11A | ORIFICE (CENTER) |
| 11 | ORIFICE (LEFT FRONT AND LEFT REAR) |
| 12 | FOOT PAD, GRATE (OUTER) |
| 13 | FOOT PAD, GRATE (INNER) |
| 14 | BEZEL, BURNER (LEFT FRONT AND LEFT REAR) |
| 14A | BEZEL, BURNER (CENTER AND RIGHT FRONT) |
| 14B | BEZEL, BURNER (RIGHT REAR) |
| 15 | W11684564 Whirlpool Clip Assembly |
| 16 | W11699921 Whirlpool Screw |
