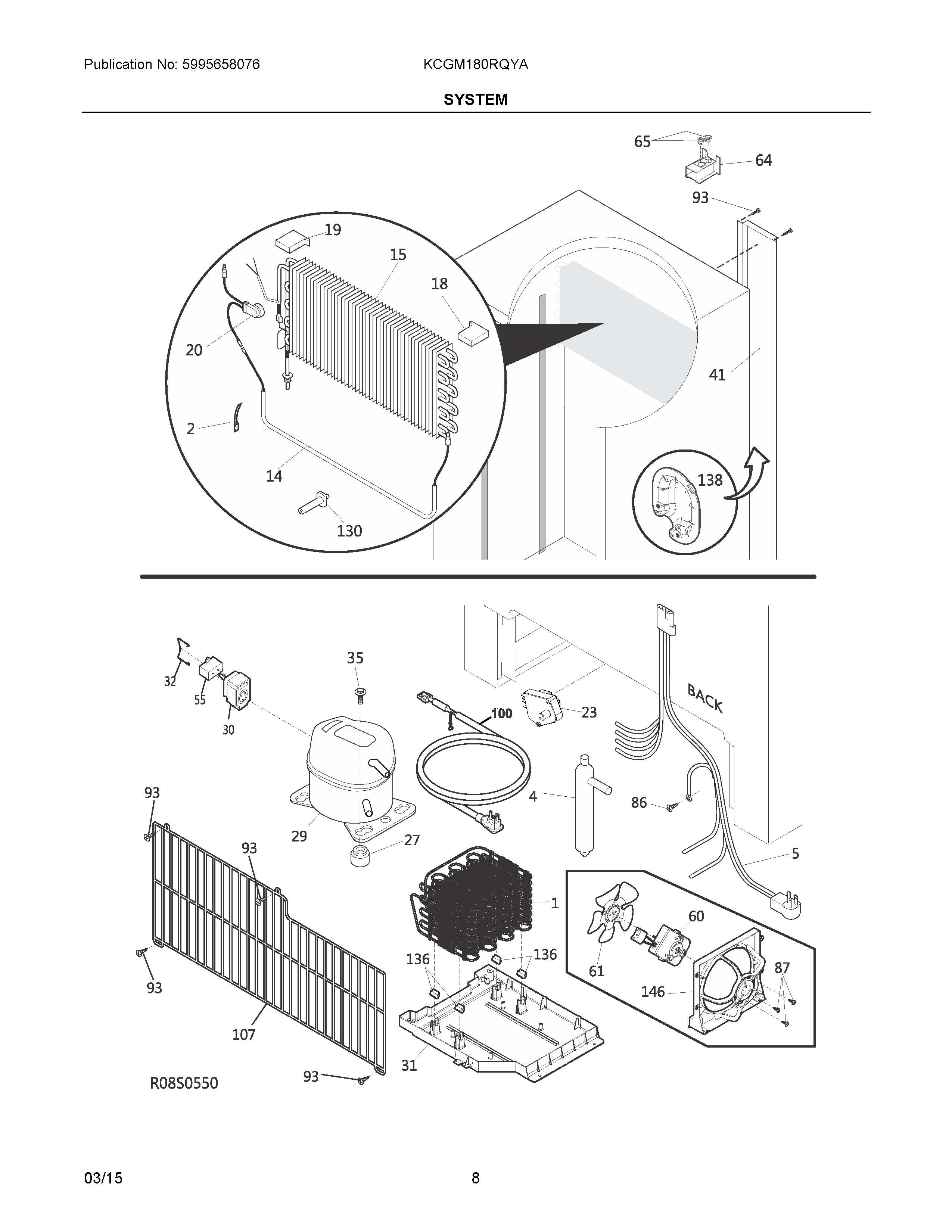

KCGM180RQYA 04 – SYSTEM

KCGM180RQYA 04 – SYSTEM

Written by

in

KCGM180RQYA 04 – SYSTEM

Products

PositionProduct
NI297315800 Frigidaire Refrigerator Clip
NIWCI 5303311565
NIGROMMET-SPACER
NIA216337701 Frigidaire Refrigerator Screw
NI297111000 Frigidaire Standoff
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIWCI 297082300
NI241853202 Frigidaire Refrigerator Screw
NIAWCI 297318700
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 297170700
14216730700 Frigidaire Refrigerator Defrost Heater
15297311300 Frigidaire Freezer Evaporator Assembly
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20DEFROST THERMOSTAT
235304518034 Frigidaire Refrigerator Defrost Timer
27297293302 Frigidaire Refrigerator Grommet
295304537072 Frigidaire Compressor with Clip, Em2Z70Hlt
30297259515 Frigidaire Refrigerator Start Relay
31297165800 Frigidaire Refrigerator Drain Pan
32216954300 Frigidaire Refrigerator Clip
35297368501 Frigidaire Bolt
41WCI 297070700
55297286803 Frigidaire Refrigerator Run Capacitor
60297279500 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
64WCI 216578800
65Valve,breather ,door base
86216036601 Frigidaire Refrigerator Screw
93216858001 Frigidaire Refrigerator Screw
100297366805 Frigidaire Refrigerator Cord
107WCI 297225501
116WCI 216383800
130297244700 Frigidaire Refrigerator Support
136240405201 Frigidaire Refrigerator Grommet
138COVER-DRAIN HOSE
146WCI 297164000
