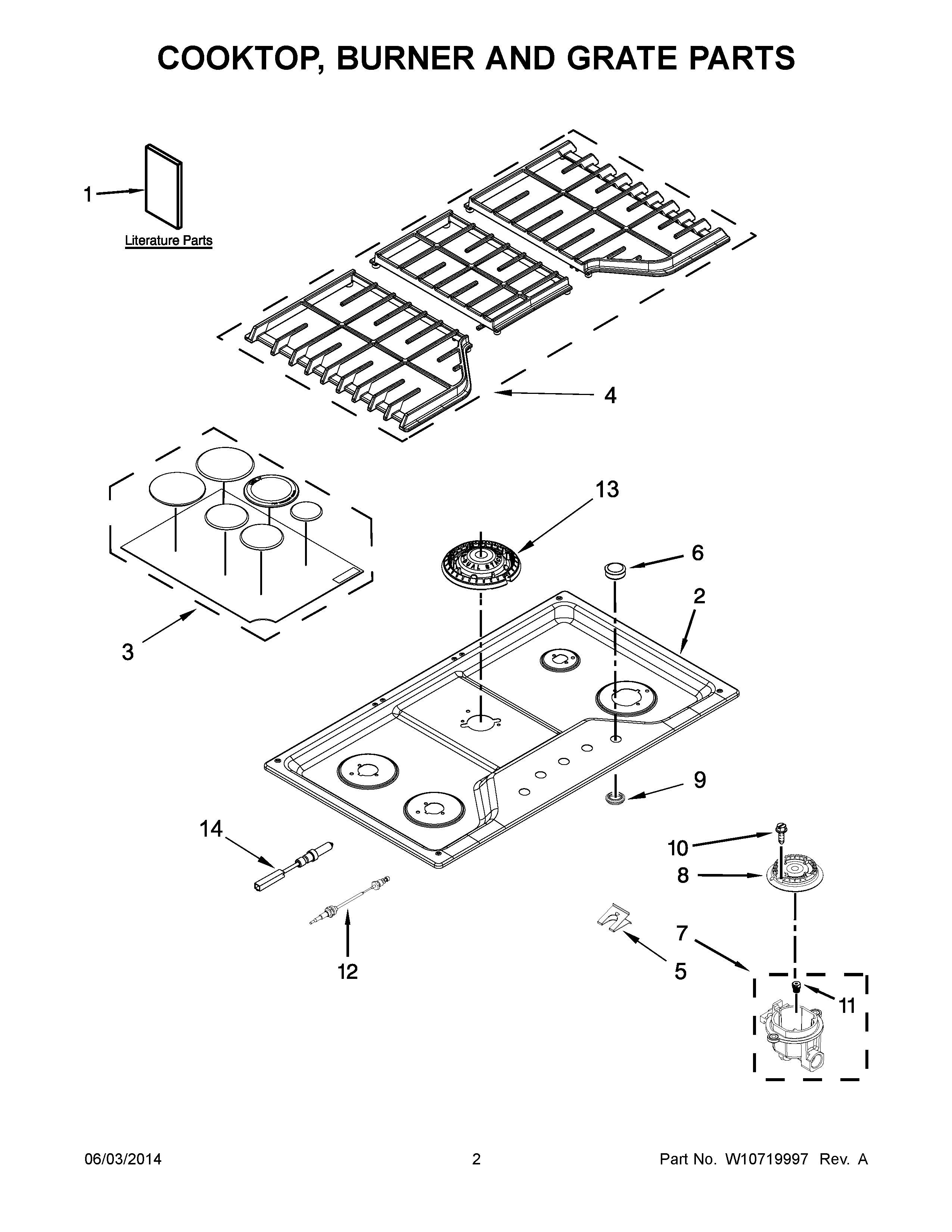

KCGS350ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	UNDERCOUNTER INSTALL INSTRUCTIONS
1	INSTALLATION INSTRUCTIONS
1	USE & CARE GUIDE
1	Safer Cooking Tips (French)
2	W10597067 Whirlpool Cooktop Assembly
3	W10833886 Whirlpool Burner Cap Assembly
4	W11334473 Whirlpool Grate Kit
5	8286863 Whirlpool Oven Clip
6	WPW10545849 Whirlpool Knob
7	W10597166 Whirlpool Orifice Holder
7	W10613381 Whirlpool Orifice Holder
7	W10611441 Whirlpool Orifice Holder
7	W10594399 Whirlpool Orifice Holder
8	WP8286814 Whirlpool Burner Head
8	WP8286813 Whirlpool Burner Head
9	W11206740 Whirlpool Grommet
10	WP8287059 Whirlpool Screw
11	W10791082 Whirlpool Spud Orifice
11	W10652710 Whirlpool Orifice Spud
11	W10791076 Whirlpool Spud Orifice
11	W10791073 Whirlpool Gas Orifice Spud
11	W10652706 Whirlpool Spud Orifice
12	W11507531 Whirlpool Surface Igniter Assembly
12	W11507532 Whirlpool Surface Igniter
13	W10811599 Whirlpool Burner Head
14	W10852959 Whirlpool Surface Igniter
