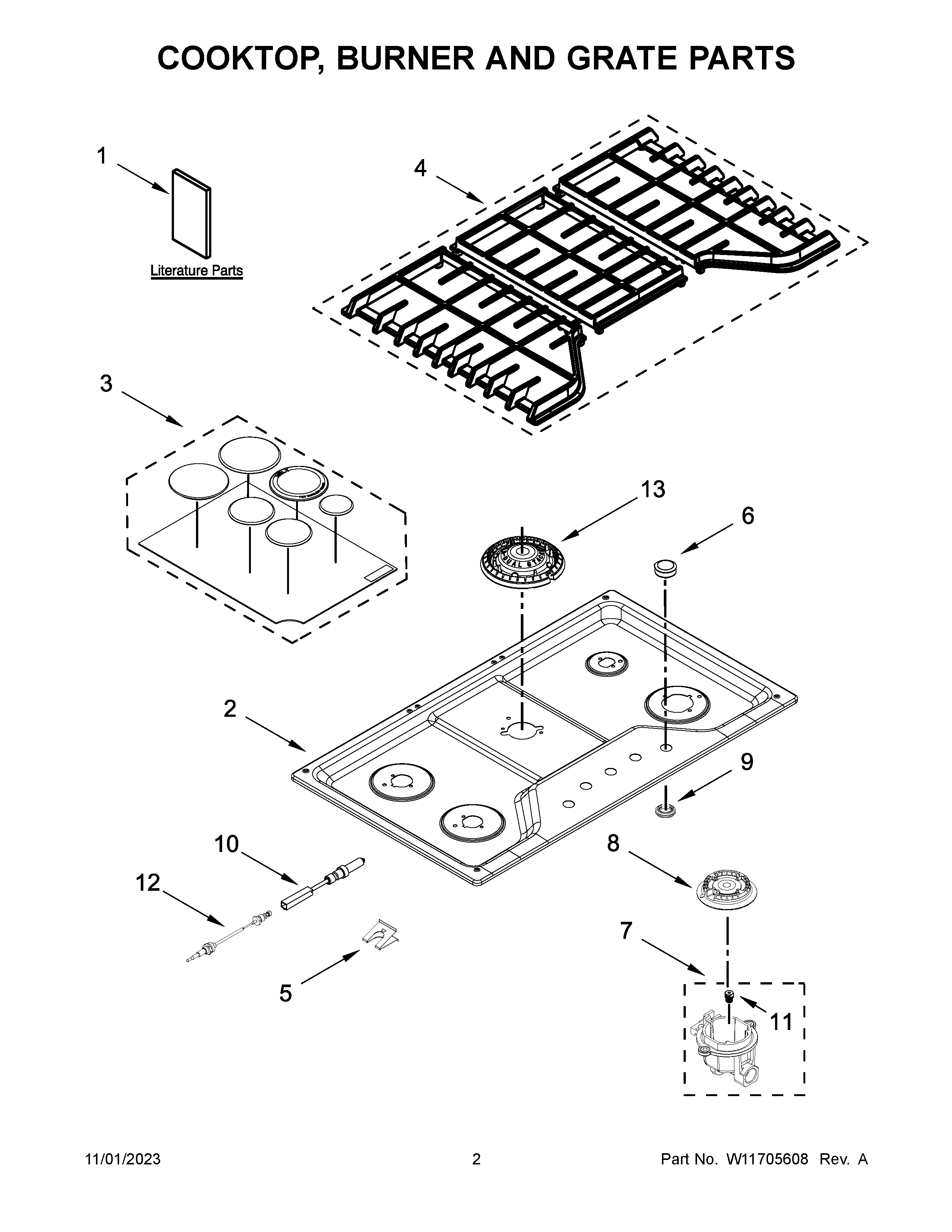

KCGS350ESS06 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS350ESS06 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS350ESS06 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1OWNER'S MANUAL
1AQUICK START GUIDE
2W10597067 Whirlpool Cooktop Assembly
3W10833886 Whirlpool Burner Cap Assembly
4W11334473 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6WPW10545849 Whirlpool Knob
7BW10594399 Whirlpool Orifice Holder
7AW10613381 Whirlpool Orifice Holder
7CW10611441 Whirlpool Orifice Holder
7W10597166 Whirlpool Orifice Holder
8AWP8286813 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10W10852959 Whirlpool Surface Igniter
11DW10652706 Whirlpool Spud Orifice
11W10652710 Whirlpool Orifice Spud
11AW10791076 Whirlpool Spud Orifice
11CW10791073 Whirlpool Gas Orifice Spud
11BW10791082 Whirlpool Spud Orifice
12AW11507532 Whirlpool Surface Igniter
12W11507531 Whirlpool Surface Igniter Assembly
13W10811599 Whirlpool Burner Head
