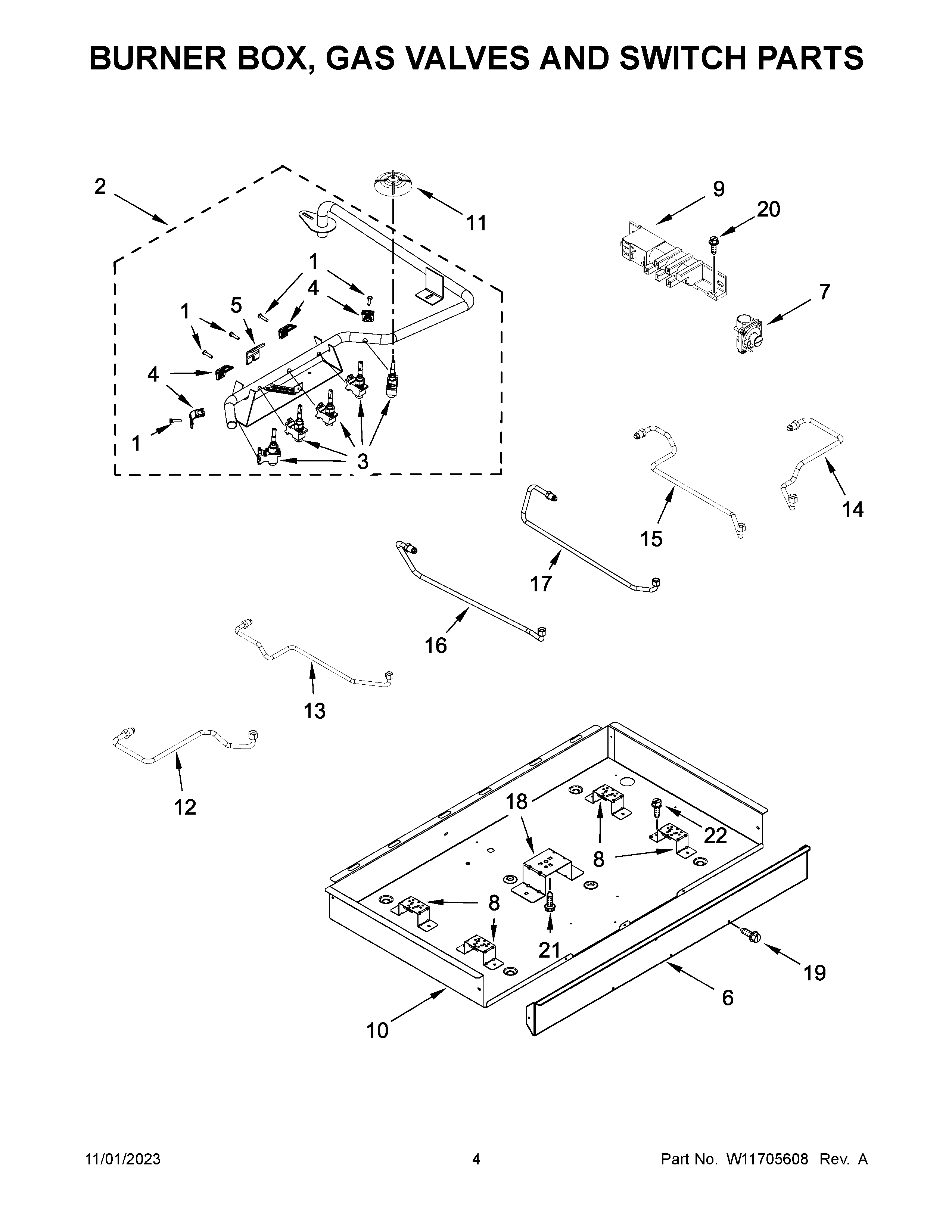

KCGS350ESS06 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	W10685483 Whirlpool Range Griddle
NI	W11637584 Whirlpool Wire Harness
NI	W10676661 Whirlpool Cooktop Spud Orifice
NI	TAPE, FOAM
NI	W11706284 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	9760045 Whirlpool Oven Foam Seal
NI	SCREW
NI	BRACKET, MOUNTING
NI	W10392003 Whirlpool Power Cord
NI	W10132200 Whirlpool Strain Relief
NI	WP3400015 Whirlpool Screw
1	8287057 Whirlpool Oven Screw
2	MANIFOLD ASSEMBLY
3	VALVE, SINGLE (LEFT FRONT)
3A	VALVE, SINGLE (LEFT REAR)
3B	W11706290 Whirlpool Gas Valve
3C	VALVE, SINGLE (RIGHT REAR)
3D	VALVE, DUAL (CENTER)
4	8287055 Whirlpool Oven Mounting Bracket
5	8287056 Whirlpool Oven Mounting Bracket
6	PANEL, FRONT
7	W11087445 Whirlpool Pressure Regulator
8	W10594429 Whirlpool Mounting Bracket
9	W11703692 Whirlpool Speaker Module
10	BOX, BURNER
11	W11507167 Whirlpool Switch Seal
12	W10566294 Whirlpool Gas Tubing
13	W10566295 Whirlpool Gas Turbine
14	W10566299 Whirlpool Gas Tubing
15	TUBING, GAS BURNER (RIGHT REAR)
16	W10566296 Whirlpool Gas Tubing
17	W10566297 Whirlpool Gas Tubing
18	W10594430 Whirlpool Mounting Bracket
19	WP3196557 Whirlpool Screw
20	SCREW
21	W11676349 Whirlpool Screw
22	W10443110 Whirlpool Screw
