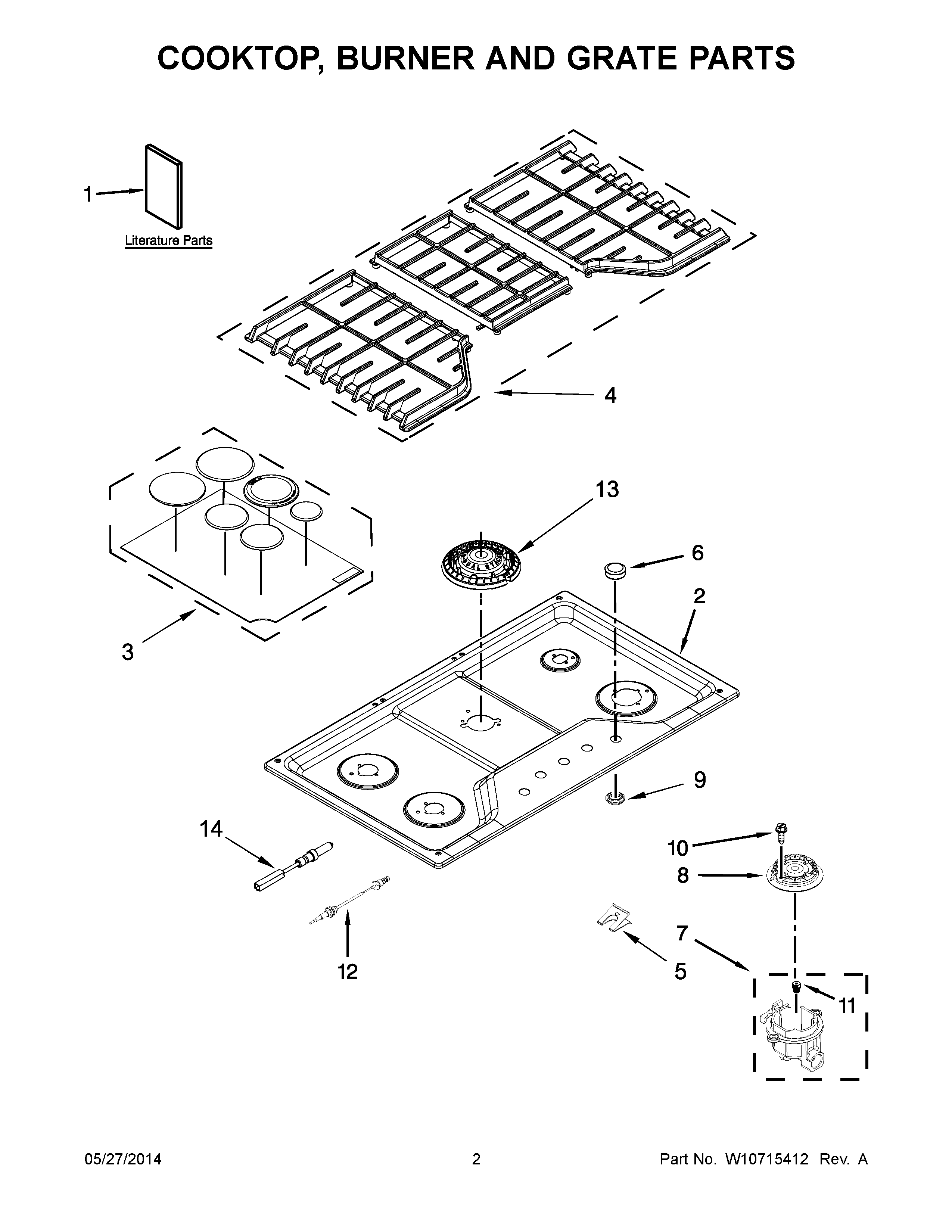

KCGS356ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

KCGS356ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KCGS356ESS00 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1UNDERCOUNTER INSTALL INSTRUCTIONS
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1Safer Cooking Tips (French)
2W11176110 Whirlpool Cooktop Main Top
3CAP-BURNER
4W11334474 Whirlpool Grate Kit
58286863 Whirlpool Oven Clip
6WPW10545849 Whirlpool Knob
7W10594405 Whirlpool Orifice Holder
7W10597166 Whirlpool Orifice Holder
7W10639869 Whirlpool Orifice Holder
7W10594399 Whirlpool Orifice Holder
8WP8286813 Whirlpool Burner Head
8WP8286815 Whirlpool Burner Head
8WP8286814 Whirlpool Burner Head
9W11206740 Whirlpool Grommet
10WP8287059 Whirlpool Screw
11W10652710 Whirlpool Orifice Spud
11W10791082 Whirlpool Spud Orifice
11W10791079 Whirlpool Orifice Spud
11W10409146 Whirlpool Orifice Spud
11W10652706 Whirlpool Spud Orifice
12W11507531 Whirlpool Surface Igniter Assembly
12W11507532 Whirlpool Surface Igniter
13W10811599 Whirlpool Burner Head
14W10852959 Whirlpool Surface Igniter
